Product Details:
|
| Product Name: | Double Walled Core Barrel | Drilling Diameter: | 600-3000 Mm |
|---|---|---|---|
| Teeth: | Bullet Tech Or Roller Bits | Attached Equipment: | Rotary Drilling Rig |
| Material: | Q345B | Axis Material: | 40Cr |
| Processing Type: | Forging | Application: | Drilling Rock |
| High Light: | friction kelly bar,construction machine parts |
||
Drilling Augers Double Cut Flat Drilling Bucket Used for Rock Drilling Rig
Main Application:
Soft to stiff silt and caly, loose to medium dense sand and gravel
Competitive Advantage:
-Kelly box size as per customer's demand
-Bucket thickness can be made 16mm or 20mm as customer's demand
-The single bottom plate thickness:50mm
-The double bottom plate thickness:40/50mm
-Teeth type:V19 or V20
Specification:
| Drilling dia(mm) | Shell dia(mm) | Total length(mm) | Shell length(mm) | Shell Thickness(mm) | Bae plate thickness(mm) | Cutting plate thickness(mm) | Teeth number |
| 600 | 540 | 2000 | 1200 | 14 | 40 | 50 | 4 |
| 800 | 700 | 2000 | 1200 | 14 | 40 | 50 | 4 |
| 1000 | 900 | 2000 | 1200 | 16 | 40 | 50 | 6 |
| 1200 | 1100 | 2000 | 1200 | 16 | 40 | 50 | 7 |
| 1500 | 1400 | 2000 | 1200 | 16 | 40 | 50 | 9 |
| 1800 | 1700 | 1800 | 1000 | 20 | 50 | 50 | 11 |
| 2000 | 1900 | 1600 | 800 | 20 | 50 | 50 | 13 |
| 2200 | 2100 | 1600 | 800 | 20 | 50 | 50 | 15 |
| 2500 | 2400 | 1500 | 700 | 20 | 50 | 50 | 18 |
| 3000 | 2900 | 1500 | 700 | 20 | 50 | 50 | 21 |

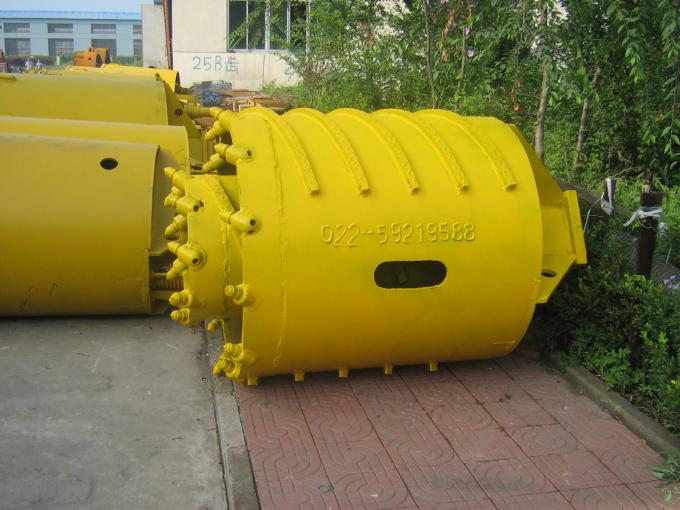

Product Display:
FAQ
1.What kind of drilling tools can we provide?
Ans.: We can provide drilling tools for almost all the brand rotary drilling rig, In addition to the above model specifications, our company can produce special specification products to customer requirements.
2.What is the advantages of our products?
Ans.:We use super quality raw material, which makes the drilling tools more durable, and our drilling tools with competitive price,no matter you are dealers or end user,you will get the biggest profit.
3. What warranty do we provide?
Ans.: We provide 3 months warranty time.
4. What is the lead time?
Ans.: Usually the lead time is 7-10 days after receipt of your payment.
5.What payment terms do we accept?
Ans.: We accept T/T in advance or L/C at sight.
Why Choose Us?
1. We are the professional manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Competitive price.
