Payment & Shipping Terms:
|Working Medium:||32# Or 46# Anti-wear Hydraulic Oil||Fuel Tank Volume:||320L|
|Max. Operating Pressure:||315 Bar||Motor Power:||22 KW|
|Motor Frequency:||50 Hz||Motor Voltage:||380V|
|Motor Working Speed:||1460 Rpm||Working Weight (full Tank):||880kg|
|Wireless Control Distance:||200m|
compact electric hydraulic power unit,
1460rpm electric hydraulic power unit,
1460rpm electric hydraulic power pack
Durable Flexible Portable Electric Hydraulic Power Unit Motor Power 37 KW Longlife

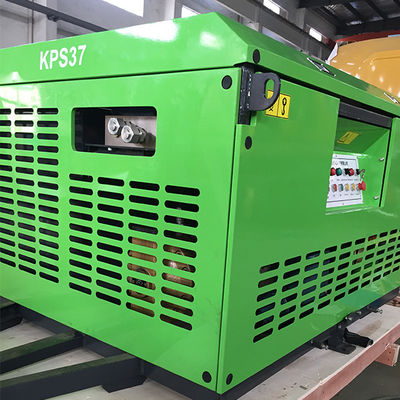

|Technical specification of KPS37 and KPS22|
|Working medium||32# or 46# anti-wear hydraulic oil|
|Fuel tank volume||470 L||320 L|
|Max. flow rate||240 L/min||120 L/min|
|Max. operating pressure||315 bar||315 bar|
|Motor power||37 KW||22 KW|
|Motor frequency||50 Hz||50 Hz|
|Motor voltage||380 V||380 V|
|Motor working speed||1460 rpm||1460 rpm|
|Working weight (full tank)||1500 kg||850 kg|
|Wireless control distance||200 m||200 m|

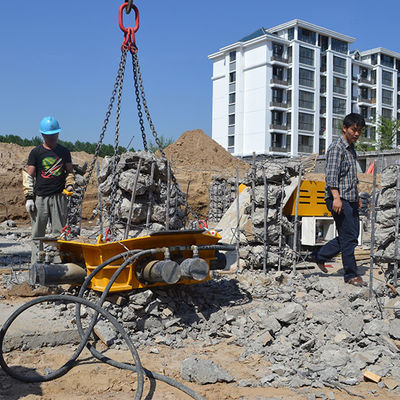

Installation steps of hydraulic pile breaker and the pump station:
1. Put the pump station and pile breaker hang to the designated spot.
2. Use cable to put the external power connected with the pump station, make sure the indicator light without error.
3. Use hose to put the pile breaker connected with the pump station and install securely.
4. Through the observation mouth to check whether there is enough hydraulic oil in the fuel tank of the pump station.
5. Opening motor and operating the cylinder telescopic movements, making the hose and fuel tank full with oil.
6. Craning the pile breaker to cut piles.
Safety maintenance of the hydraulic pile breaker and the pump station:
1. Check the wear condition of drill rod regularly in order to change in time.
2. Check whether existing oil leaking of the cylinder and hydraulic parts.
Q1: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
Q2:Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
