|Working Medium:||32# Or 46# Anti-wear Hydraulic Oil||Fuel Tank Volume:||470 L|
|Max. Flow Rate:||240 L/min||Max. Operating Pressure:||315 Bar|
|Motor Power:||37KW||Motor Frequency:||50 Hz|
|Motor Voltage:||380 V||Working Weight (full Tank):||1500 Kg|
|Wireless Control Distance:||200 M|

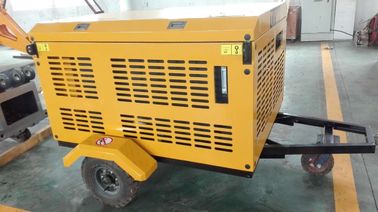

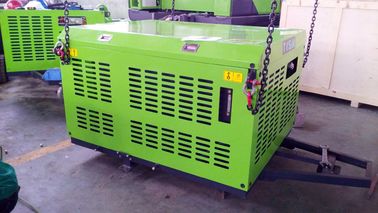

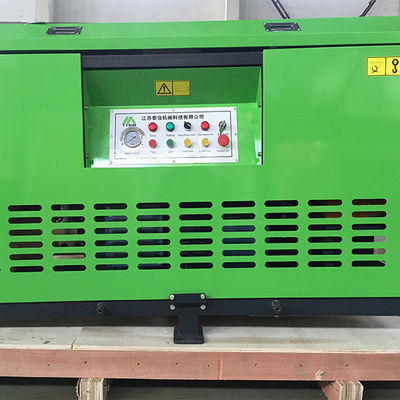

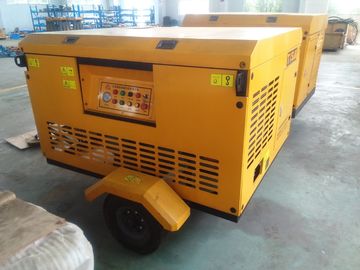

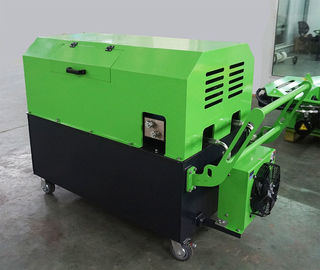

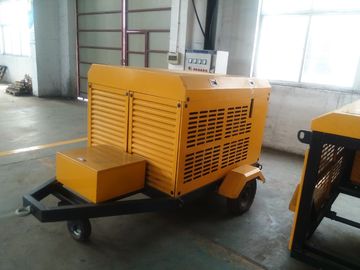

240l/min Portable Hydraulic Power Pack,
470l Portable Hydraulic Power Pack,
wireless control Portable Hydraulic Power Pack
Durable Flexible Portable Electric Hydraulic Power Unit Motor Power 37 KW Longlife

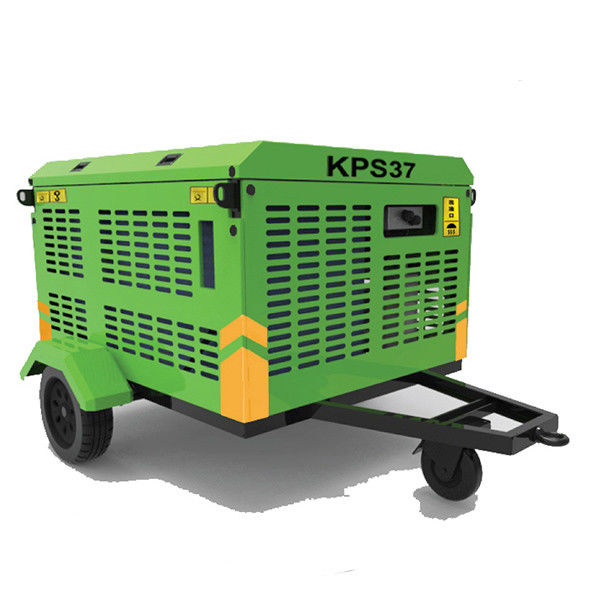

|KPS37 technical specifications|
|Service fluid||32#or46# anti-wear hydraulic oil|
|Capacity of tank||470L|
|Max. Working pressure||315bar|
|Electrical machinery output||37KW|
|Electrical machinery frequency||50Hz|
|Electrical machinery electric pressure||380V|
|Electrical machinery speed of rotation||1460rpm|
Installation steps of hydraulic pile breaker and the pump station:
1. Put the pump station and pile breaker hang to the designated spot.
2. Use cable to put the external power connected with the pump station, make sure the indicator light without error.
3. Use hose to put the pile breaker connected with the pump station and install securely.
4. Through the observation mouth to check whether there is enough hydraulic oil in the fuel tank of the pump station.
5. Opening motor and operating the cylinder telescopic movements, making the hose and fuel tank full with oil.
6. Craning the pile breaker to cut piles.
Matches between pump station and hydraulic pile breaker:
|Pump station model||Round pile breaker model||Square pile breaker model|
Safety maintenance of the hydraulic pile breaker and the pump station:
1. Check the wear condition of drill rod regularly in order to change in time.
2. Check whether existing oil leaking of the cylinder and hydraulic parts.
