Payment & Shipping Terms:
|Product Name:||Excavator Rotating Clamshell Grapple Bucket For Telescopic Arm||Drilling Diameter:||600-3000 Mm|
|Teeth:||Bullet Tech Or Roller Bits||Attached Equipment:||Rotary Drilling Rig|
borehole drilling machine,
bored pile equipment

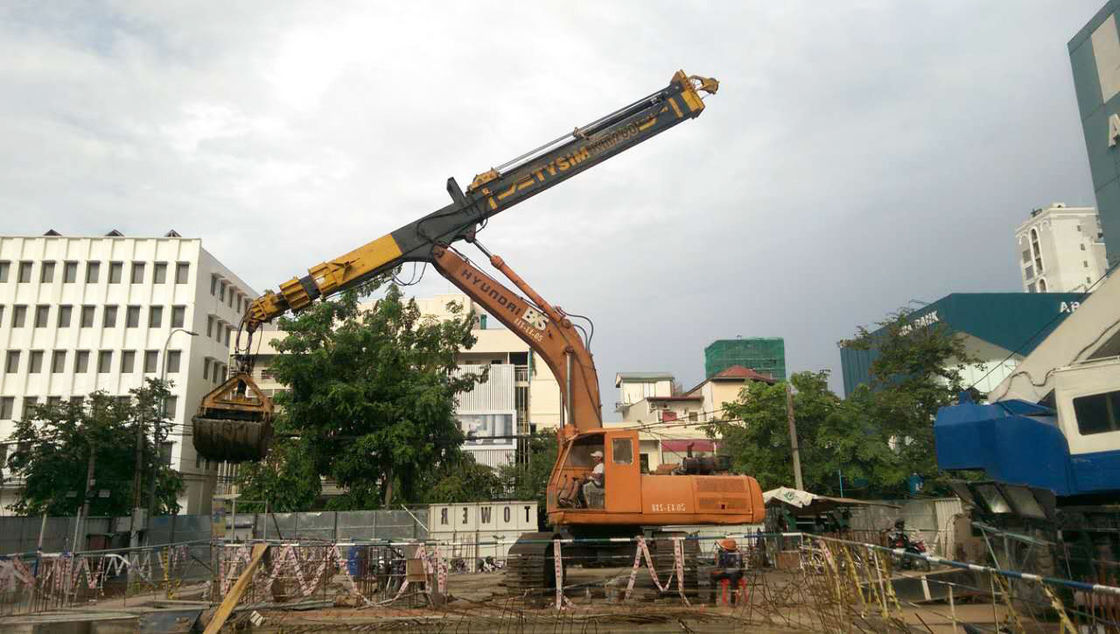

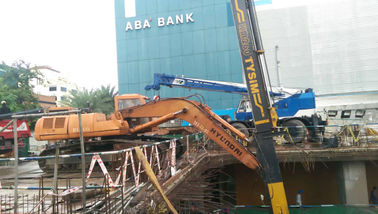

China First One Excavator Telescopic Arm KM260
|Construction Parameter of KM269(CAT329)|
|Max. Digging Depth||24800 mm|
|Max. Digging Dradius(Reach Max. digging depth)||6430 mm|
|Max. Vertical Digging Dradius||8160 mm|
|Max. Digging Depth(Reach Max. Vertical Digging Draudius)||20010 mm|
|Max. Operating Diadius||9890 mm|
|Max. Hoisting Height||5370 mm|
|Min. Operating Diadiusmm||5190 mm|
|Max. Operating Height||14500 mm|
|Length of Excavator Telescopic Arm||11700 mm|
|Overall Transport Length(CAT320)||17100 mm|
|Weight of Excavator Telescopic Arm||4950 kg|
|Weight of Bucket||990 kg|
|Excavator Capacity||≥ 29|
|Matched Bucket of 360° Rotation||KS45T|
Q1: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
Q2:Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
