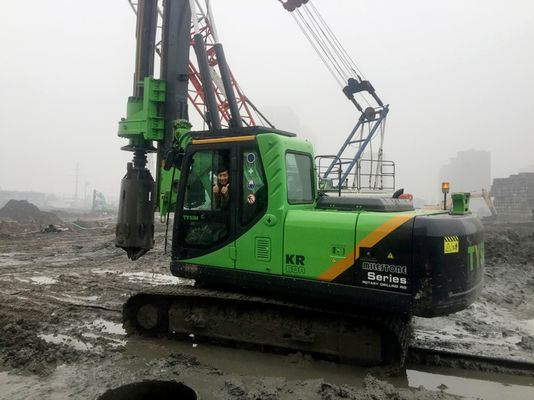

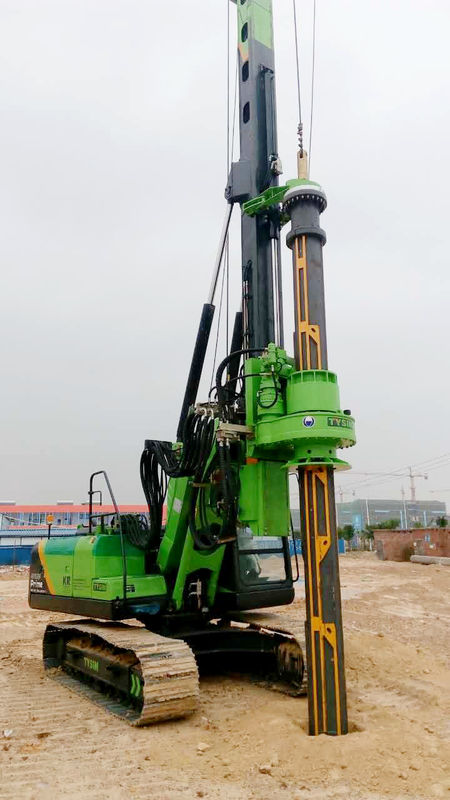

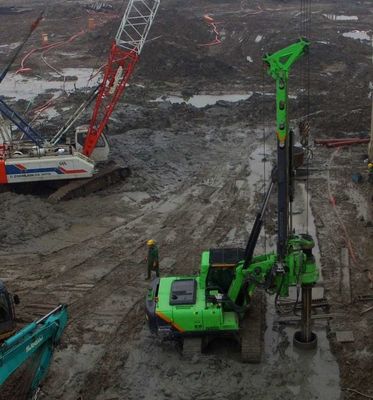

TYSIM Hydraulic Depth 20m diameter 1200 mm KR60A Pile Drilling Machine

TYSIM Hydraulic Depth 20m diameter 1200 mm KR60A Pile Drilling Machine

TYSIM Hydraulic Depth 20m diameter 1200 mm KR60A Pile Drilling Machine
TYSIM Hydraulic Depth 20m diameter 1200 mm KR60A Pile Drilling Machine
TYSIM Hydraulic Depth 20m diameter 1200 mm KR60A Pile Drilling Machine
Product Details:
Place of Origin: Jiangsu, China
Brand Name: TYSIM
Certification: CE,ISO9001
Model Number: KR60A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Overall transport; Packaged in one flat rack.
Delivery Time: 30-45days after receving the advanced payment
Payment Terms: L/C, T/T
Supply Ability: 10 set per month
Contact Now
Detailed Product Description
Max. Torque: 60 KN.m Max. Drilling Diameter: 1200 Mm
Max. Drilling Depth: 20 M Speed Of Rotation: 8~30 Rpm
Max. Crowd Pressure: 90 KN Main Winch Line Speed: 65 M/min
Stroke(crowd System): 3250 Mm Operating Width: 2700 Mm
Overall Weight: 20 T
High Light:

TYSIM Pile Drilling Machine

,

20m Pile Drilling Machine

,

KR60A

Technical Specification
Technical specification of KR60A rotary drilling rig
Torque 60 kN.m
Max. diameter 1200 mm
Max. drilling depth 20 m(4 node)/16 m(3 node)
Speed of rotation 8~30 rpm
Max. crowd pressure 60 kN
Max. crowd pull 90 kN
Main winch line pull 65 kN
Main winch line speed 48 m/min
Auxiliary winch line pull 20 kN
Auxiliary winch line speed 48 m/min
Stroke(crowd system) 2000 mm
Mast inclination(lateral) ±3°
Mast inclination(forward)
Max. operating pressure 34.3 MPa
Pilot pressure 3.9 MPa
Travel speed 2.8km/h
Traction force 98 kN
Operating height 10600 mm
Operating width 2490 mm
Transport height 2700 mm
Transport width 3250 mm
Transport length 9500 mm
Overall weight 20t


Product introdction
TYSIM machinery focuses on the research,development and manufacture of the kind of the pile working enginerring machiney,it’s the unique company that focuses on developing small and medium-sized rotary drilling rig applying for civil enginerring,now have obtained more than 40 patents of pile working enginerring machiney.The original KP size Pile Breaker(also named break pile machine) of company in China,realize the efficiently pile cutting on a large scale,change the history that field of pile cutting inland rely on the workers and no professional equipments.This production obtained 11 core patents,among them 1 invention patent,they have been exported to Amercian,Brazil,Australia,Vietman,Indonesia and many other countries.
KR size small and medium-sized rotary drilling rig in many fields of metro,viaduct,houses win the praise of all the customers for the construction result,it will be the low cost and high efficient pile working equipments in operation field of our country’s new urbanizational construction. With the goal “be the reliable pile working proficient,fabricate the trade leading outstanding productions”,we recruit excellent talents constantly,create cause terrace for the win-win situation between staffs and company.We stick to the core concept“concentration,creative,value”concentrate on research and development in the pile basical construction field,rely on the working style of“pay attentions to details,keep improving,against the tardiness, finish daily duty”make great efforts to realize the vision of “become the pacemaker of small and medium-sized pile working machinery”.
packing  pohotos


TYSIM Hydraulic Depth 20m diameter 1200 mm KR60A Pile Drilling Machine 0



Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.

FAQ

Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
