50 KN.M Max Torque KR50A Micro Rotary Hydraulic Piling Rig for 24m Bored Hole Pile Equipment

50 KN.M Max Torque KR50A Micro Rotary Hydraulic Piling Rig for 24m Bored Hole Pile Equipment

    • 50 KN.M Max Torque KR50A Micro Rotary Hydraulic Piling Rig for 24m Bored Hole Pile Equipment
    • 50 KN.M Max Torque KR50A Micro Rotary Hydraulic Piling Rig for 24m Bored Hole Pile Equipment
  • 50 KN.M Max Torque KR50A Micro Rotary Hydraulic Piling Rig for 24m Bored Hole Pile Equipment

    Product Details:

    Place of Origin: Jiangsu, China
    Brand Name: TYSIM
    Certification: CE,ISO9001
    Model Number: KR50A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Overall transport; Packaged in one flat rack.
    Delivery Time: 30 working days after recieving the down payment
    Payment Terms: L/C, D/A, D/P, T/T
    Supply Ability: 5 set per month
    Contact Now
    Detailed Product Description
    Max. Torque: 50 KN.m Max. Drilling Diameter: 1200 Mm
    Max. Drilling Depth: 24 M Speed Of Rotation: 7~40 Rpm
    Max. Cylinder Stroke: 1100 Mm Main Winch Line Speed: 48 M/min
    Main Winch Pull Force: 75 KN Max. Operating Height: 7181 Mm
    Max. Operating Width: 2300 Mm Max. Transport Weight: 7 T
    Excavator Size: 14 T-24 T
    High Light:

    bored pile drilling machine

    ,

    hydraulic rig machine


    Rotary Bored Hole Pile Equipment , Hydraulic Piling Rig Max Pile Diameter 1200mm

    Rotary Drilling Rig Model KR50A
    Excavator Size 14t-16t 20t-23t 24t+
    Max. torque 50 kN.m 50 kN.m 50 kN.m
    Max. drilling diameter 1200 mm 1200 mm 1200 mm
    Max. drilling depth 16 m 20 m 24 m
    Main winch pull force 70 kN 75 kN 75 kN
    Main cylinder trip 1100 mm 1100 mm 1100 mm
    Auxiliary winch pull force 65 kN 65 kN 65 kN
    Main winch speed 48 m/min 48 m/min 48 m/min
    Mast inclination(Lateral) ±6° ±6° ±6°
    Mast inclination(Forward) -30°~ ﹢90° -30°~﹢90° -30°~﹢90°
    Working speed 7-40rpm 7-40rpm 7-40rpm
    Min. radius of gyration 2800mm 2950mm 5360mm
    Max. pilot pressure 31.5Mpa 31.5Mpa 31.5Mpa
    Operating height 8868mm 9926mm 11421mm
    Operating width 2600mm 2800mm 3300mm
    Transport height 2731mm 3150mm 3311mm
    Transport width 2600mm 2800mm 3300mm
    Transport length 10390mm 11492mm 12825mm
    Transport weight 6.1t 6.5t 7t
    Remark Restructuring big arm Restructuring big arm Restructuring big arm

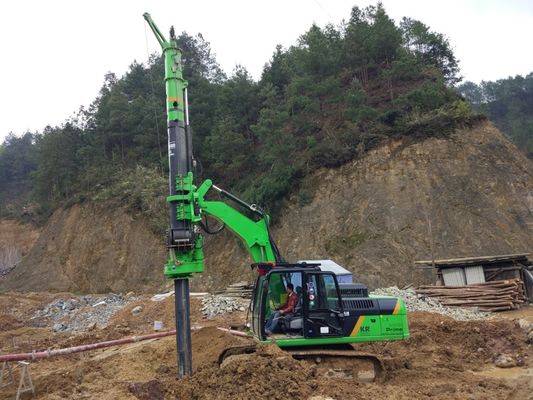

    construction photos

    50 KN.M Max Torque KR50A Micro Rotary Hydraulic Piling Rig for 24m Bored Hole Pile Equipment 050 KN.M Max Torque KR50A Micro Rotary Hydraulic Piling Rig for 24m Bored Hole Pile Equipment 1

    Our Services

    Why Choose Us?

    1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
    2. Supply professional customized service to meet all your requirements.
    3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
    4. Competitive price.

    FAQ

    Q1: What is the Warranty of the Rotary Drilling Rig?
    The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
    Please contact with us for detailed Warranty Regulation.
    Q2: What's your service ?
    We can offer professional technical support and good after-sale service to you.
    Modification methods will be different according to different models and configurations of your owned excavators.
    Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
    Before modifying, you need to confirm technical specification.
