Product Details:
|
Place Of Origin: | Jiangsu, China (Mainland) | Weight: | 1.7t |
---|---|---|---|
Type: | Hydraulic | Rotating Speed: | 3000 Rpm |
Color: | Can Be Customized | Brand Name: | TYSIM |
Material: | 45# Steel | Name: | Vibratory Hammer Pile Driver |
Model Number: | VS250 | ||
Highlight: | vibratory pile driver,excavator hammer |

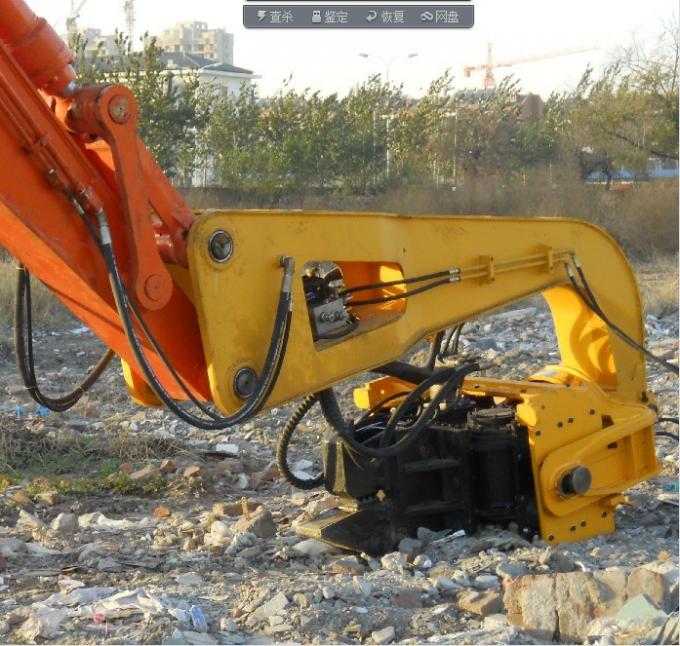

VS250 construction equipment excavator mounted mini integrated type pile driver
Hydraulic Vibratory Pile Driver
Performance parameter
Model | TS-VS250 | TS-VS330 | TS-VS400 | TS-VS450 | TS-VS500 |
Vibration Frequency(Rpm) | 3000 | 3000 | 3000 | 3000 | 3000 |
Vibrating Force(T) | 46.2 | 56.5 | 61.8 | 69.5 | 77 |
Hydraulic System Operating Pressure(Bar) | 315 | 315 | 315 | 315 | 315 |
Hydraulic System Flow Demand(Lpm) | 189 | 240 | 270 | 324 | 324 |
Main Body Weight(T) | 1.7 | 1.8 | 2.15 | 2.2 | 2.3 |
Apply to Excavator Weight(T) | 20-25 | 27-32 | 33-40 | 40-48 | 50-70 |
Clip Mouth Weight(kg) | C17:520KG C19:550KG C30B:455KG C35E:530KG | ||||
Assistance Arm Weight(kg) | A200C:750KG A200CK:755KG A250C:850KG A300C:950KG |
Vibrating pile hammer is using its high frequency vibration to vibrate pile body with high acceleration to pass the vertical vibration of mechanical produce to pile which leading to changes in the soil structure around the pile, strength decrease. Soil around the piles become liquefaction to reduce frictional resistance between side of the pile and the soil.
Then using the excavator down force, vibrating pile hammer and pile body weight to sink pile into the soil. When extracting piles, in the condition of vibration to pull out the pile by using excavator lift force.
Excitation force needed by pile driving machinery are comprehensive determined by site soil,soil condition,moisture content and type of pile,construction.
Products application

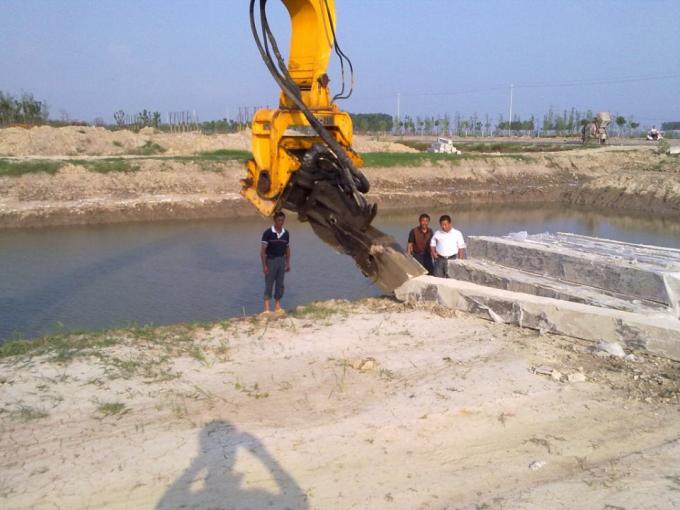

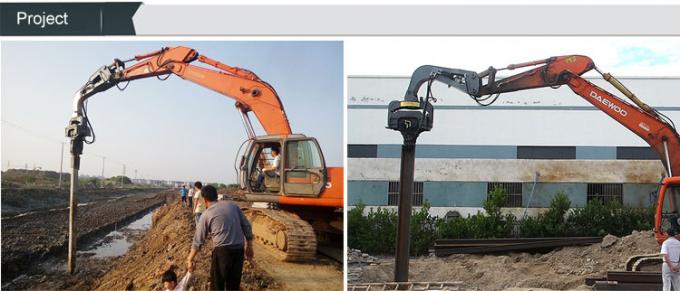

The efficient of vibration pile method is higher than other methods. It is mainly applied to steel sheet pile, steel pipe pile and long slender concrete precast pile . This pile driving method is the most suitable for working in sand and poorer effect in the clay which must select higher power model machines.
FAQ
Q1: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
Q2:Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
