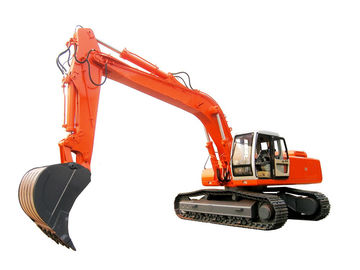

BONNY 37 Ton CE400-7 Diesel Crawler Excavator Construction Equipment 198kw / 212kw

Place of Origin Jiangsu, China
Brand Name BONNY
Certification CE and ISO9001
Model Number CE400-7
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details One is nude packing and overall transport by sea with roll-on-roll-off ship.(L*W*H=13860*2900*3500 mm); The other is host in the flat rack,(L*W*H=9782*2800*3070 mm); kelly bar and bucket is also nude, meanwhile four wooden case which is put with mast, powe
Delivery Time 25-45 workdays after receive the advance payment
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10 Set/Sets per Month
Product Details
Color Red Or Printed Name Large& Super Large Hydraulic Excavator
Condition New Place Of Origin Jiangsu, China (Mainland)
Brand Name BONNY Operating Weight 37t
Max.torque 1219 Nm Rated Speed 3.1/5.2 Km/h
Diesel Engine Power 198/212kw
High Light

electric powered excavators

,

diesel excavator

Leave a Message
Product Description

New BONNY 37ton CE400-7 Diesel Hydraulic Crawler Excavator for sale

Quick Details

  • Place of Origin: Wuxi, China (Mainland)
  • Brand Name: BONNY
  • Model Number: CE400-7
  • Condition: New
  • Moving Type: Crawler Excavator
  • Operating Weight: 37t
  • Bucket capacity: 1.0~2.0m³
  • Maximum Digging Height:8400mm/8480mm
  • Maximum Digging Depth:7300mm/2923mm
  • Machine Weight: 37t
  • Max Digging Radius: 11120mm/8180mm
  • Rated Speed: 3.1/5.2 km/h
  • Certification: ISO9001
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Diesel engine: 6C8.3(Tier II)
  • Diesel engine power: 198/212kw
  • Generator model: Cummins/ EE9247
  • Max.torque: 1219 Nm
  • Max. pulling force: 292kN
  • Type of undercarriage: X structure
No. Item Unit Backhoe Date
      Backhoe Face-shovel
1 Machine weight t 37 39
2 Bucket capacity /Standard m3 1.7 2.0
3 Diesel engine Model   6C8.3(Tier 2)
    Power /Speed kW/rpm

186KW/2200rpm(Power rating)

198KW/2000rpm(Actual using power /peak power)

    Fuel tank Capacity L 520
4 Hydraulic system Max. pressure of main oil circuit MPa 29.4
    Max. flow of main oil circuit L/min 2×264
    Operating style   Pilot control
    Hydraulic oil tank capacity L 310
5 Performance Swing speed r/min 9.9
    Travel speed km/h 3.1/5.2
    Max. pulling force KN 292
    Gradeability % 70
    Ground pressure MPa 0.078
    Circulating time of operation s 14-19
6 Working date Boom length mm 6200 3800
    Stick length mm 3000 2980
    Max. digging radius mm 11120 8180
    Max. digging depth mm 7300 2923
    Max. digging height mm 8400 8480
    Max. unloading height mm 5800 6174
    Max. digging force of stick KN 149 194
    Max. breakout force of bucket KN 164 180



Mining hydraulic excavator is featured with:

1.Face-shovel and backhoe are covered from 40-220t.
2.Diesel engine or power driven is available for the excavator with 46t and above.
3.Voltage grade for power driven excavator:380V low voltage or 6000V high voltage.


Applied

1)The technique powered by 6000V high voltage power supply.

2)Intellectual technology such as malfunction diagnose,monitoring

3)GPS real time remote monitoring system

4)The technology for application in extreme cold region

5)The technology for application at high altitude

6)The technology suitable to application on all kinds of mines.



BONNY 37 Ton CE400-7 Diesel Crawler Excavator Construction Equipment 198kw / 212kw 0BONNY 37 Ton CE400-7 Diesel Crawler Excavator Construction Equipment 198kw / 212kw 1


Company Information

BONNY 37 Ton CE400-7 Diesel Crawler Excavator Construction Equipment 198kw / 212kw 2



BONNY 37 Ton CE400-7 Diesel Crawler Excavator Construction Equipment 198kw / 212kw 3




BONNY 37 Ton CE400-7 Diesel Crawler Excavator Construction Equipment 198kw / 212kw 4BONNY 37 Ton CE400-7 Diesel Crawler Excavator Construction Equipment 198kw / 212kw 5
