|Pile Diameter:||350~500mm||Crowd Stroke:||135mm|
|Max. Crowd Pressure:||30MPa||Quantity/8h:||134/8h|
|Max. Single Cutting Height:||≤300mm||Overall Weight:||0.96t|
|Max.rod Pressure:||280kN||Max. Cylinder Required:||20L/min|
pile cutting machine,
pile breaker machine

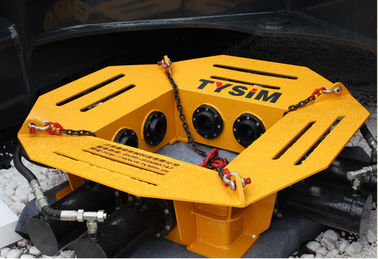

KP500S Square Concrete Columns Pile Breaker 500mm Pile Length Cutting Machine
|Technical Specification of KP500S Hydraulic Pile Breaker|
|Max. rod pressure||280kN|
|Max. cylinder stroke||135mm|
|Max. crowd pressure||34.3MPa|
|Max. single cylinder flow||20L/min|
|Max. single cutting height||≤300mm|
1. Cylinder-----Chinese Largest Cylinder Factory Brand: SANY Cylinder
2. Module-----Steel Casing, which is stronger than iron welding
3. Drill Rod-----3-times Special Heat Treatment, which guarantees its strength & tenacity
1. The leading hydraulic pile breaker/cutter, with five patented technologies, is the most efficient equipment to crushing the fundation piles and fills the China gap.
2. Using advanced modular design, it can be used for crushing pile of different diameters by changing the module combination quantity.
3. It can be installed on a larege variety of construction machinery, realizing the versatility and economy.
(1) The leading hydraulic pile breaker/cutter, with five patented technologies, is the most efficient equipment to crushing the fundation piles and fills the China gap.
(2) Using advanced modular design, it can be used for crushing pile of different diameters by changing the module combination quantity.
(3) It can be installed on a larege variety of construction machinery, realizing the versatility and economy.

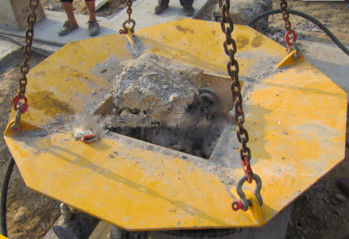

3.The operation steps of the pile
(1) Make the pile breaker move to the place of the pile head.
(2) Adjust the height of the pile breaker to the suitable cutting place (pleas refer to the construction parameter list, otherwise the chain may be broken), and clamp the pile posotion to be cut.
(3) Adjust the excavator's systrm pressure according to the concrete strength, and pressurize the cylinder until the concrete pile is broken under high pressure.
(4) After cutting the pile, hoist the concrete block.
(5) Move the crushed pile to the designed position.
Q1: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
