Casing Rotator Earthmoving Construction Equipment Rental With 0.6 / 1.0 / 1.8 rpm Rotary Speed

Place of Origin Jiangsu, China
Brand Name TYSIM
Certification ISO9001:2008
Model Number KTR3205H
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Nude Packing
Delivery Time 30-45 days
Payment Terms D/A, L/C, T/T
Supply Ability 10 sets/month
Product Details
Diameter Of Drill Hole 2000-3200mm Rotary Speed 0.6/1.0/1.8 Rpm
Pressure- Pulling Stroke 750 Mm Weight 96 Ton
Engine Model Cummins QSM11-335x2 Engine Power 2x272/1800 Kw/rpm
Fuel Consumption Of Engine 2*216 G/kwh( Max. Power Rate) Control Mode Wired Remote Control
Weight Of Hydraulic Power Pack 13 Ton Color Green
High Light

hydraulic rotators

,

pipe rotators

Leave a Message
Product Description

Biggest Type Casing Rotator for 2000 to 3200mm Pile Dia. KTR3205H



TYSIM Casing Rotator, Special use wedge clampling device.



Being Compared with the traditional clampling mechanism, it can clamp the casing no matter at what position, and keep the vertical accuracy of the casing; and the larger drawing resistance of casing causes greater lamp force.





1.Competitive Advantage



(1) No noise, no vibration, and high safety.



(2) Without mud, clean working surface, good environmental friendliness, avoiding the possibility for mud to enter the concrete, high pile quality, enhancing the bond stress of concrete to the steel bar;



(3) During construction drilling, the characteristics of stratum and rock can be directly distinguished;



(4) The drilling speed is fast and reaches about 14m/h for the general soil layer;



(5) The drilling depth is large and reaches about 80m according to the situation of soil layer;



(6) The hole forming verticality is easy to master, which can be accurate to 1/500;



(7) No hole collapse will be caused, and the hole forming quality is high;



(8) The hole forming diameter is standard, with little filling factor. Being compared with other hole forming methods, it can save a lot of concrete usage;



(9) The hole clearing is thorough and fast. The drilling mud at the hole bottom can be clear to about 3.0cm.



2. Specifications



Technical parameters
Drilling Diameter 2000-3200 mm
Torque

9080/5368/3034 kN.m

Instantaneous 10593

Rotary speed 0.6/1.0/1.8
Lower Pressure of sleeve Max. 1100kN+Dead Weight 600 kN
Pulling fore of sleeve 7237kN, Instantaneous 8370 kN
Pressure pulling stroke 750 mm
Weight 96ton





Parameters of Hydraulic power station
Engine Model Cummins QSM11-335x2
Engine Power 2x272/1800 kw/rpm
Fuel Consumption of Engine 2x216 g/kwh( Max. power rate)
Weight 13 ton
Control Mode Wired remote control





3. Description



Use for different types construction:



(1) Foundation pile, continuous wall

Foundation piles for high-speed rail, road and bridge and house building;

Articulation pile constructions which are required to be excavated, such as subway platforms, underground architectures, continuous walls.

Water retaining wall of reservoir reinforcement.



(2)Drilling gravels, boulders and karst caves

It is allowable to conduct the foundation pile construction at mountain lands with gravel and boulder formations.

It is allowable to conduct operation and cast the foundation piles at the thick quicksand formation and necking down stratum or the filling layer.

Conduct rock-socketed drilling to the rock stratum, cast the foundation pile.



(3) Clear the underground obstructions

During the urban construction and bridge rebuilding, the obstructions such as the steel reinforced concrete pile, steel pipe pile, H steel pile, pc pile and wood pile can be cleared directly, and cast the foundation pile on the spot.



(4) Cut the rock stratum

Conduct the rock-socketed drilling to the cast-in-place piles.

Drill through-holes on the rock bed(shafts and ventilation holes).



(5) Deep excavation

Conduct the in-place casting or steel pipe pile inserting for the deep foundation improvement.

Excavate deep wells for construction use in the constructions of reservoir and tunnel.

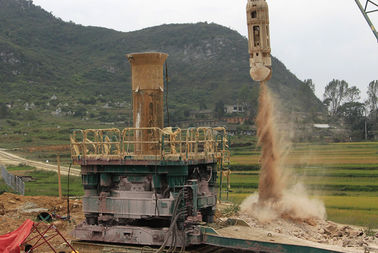

 Casing Rotator Earthmoving Construction Equipment Rental With 0.6 / 1.0 / 1.8 rpm Rotary Speed 0

Casing Rotator Earthmoving Construction Equipment Rental With 0.6 / 1.0 / 1.8 rpm Rotary Speed 1

Company Information

Casing Rotator Earthmoving Construction Equipment Rental With 0.6 / 1.0 / 1.8 rpm Rotary Speed 2



Casing Rotator Earthmoving Construction Equipment Rental With 0.6 / 1.0 / 1.8 rpm Rotary Speed 3




Casing Rotator Earthmoving Construction Equipment Rental With 0.6 / 1.0 / 1.8 rpm Rotary Speed 4Casing Rotator Earthmoving Construction Equipment Rental With 0.6 / 1.0 / 1.8 rpm Rotary Speed 5

FAQ
Q1: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.

Q2:Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
