Track Hydraulic Piling Rig For Construction Engineering Ground Foundation Max. Drilling Diameter 1200 Mm Torque 50kN.M

Track Hydraulic Piling Rig For Construction Engineering Ground Foundation Max. Drilling Diameter 1200 Mm Torque 50kN.M
Track Hydraulic Piling Rig For Construction Engineering Ground Foundation Max. Drilling Diameter 1200 Mm Torque 50kN.M
Track Hydraulic Piling Rig For Construction Engineering Ground Foundation Max. Drilling Diameter 1200 Mm Torque 50kN.M Track Hydraulic Piling Rig For Construction Engineering Ground Foundation Max. Drilling Diameter 1200 Mm Torque 50kN.M Track Hydraulic Piling Rig For Construction Engineering Ground Foundation Max. Drilling Diameter 1200 Mm Torque 50kN.M Track Hydraulic Piling Rig For Construction Engineering Ground Foundation Max. Drilling Diameter 1200 Mm Torque 50kN.M

Large Image :  Track Hydraulic Piling Rig For Construction Engineering Ground Foundation Max. Drilling Diameter 1200 Mm Torque 50kN.M

Product Details:
Place of Origin: Jiangsu, China
Brand Name: TYSIM
Certification: ISO 9001, CE
Model Number: KR50
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: One 40 Container
Delivery Time: 30-45 days
Supply Ability: 20 set per year

Track Hydraulic Piling Rig For Construction Engineering Ground Foundation Max. Drilling Diameter 1200 Mm Torque 50kN.M

Description
Max. Torque: 50kN.m Max. Drilling Diameter: 1200mm
Max. Drilling Depth: 16m Working Speed: 7~40rpm
Max. Crowd Pressure: 70kN Main Winch Line Pull: 65kN
Max. Operating Pressure: 31.5MPa Operating Height: 10390mm
Total Weight: 6.1t
High Light:

hydraulic rig machine

,

bored pile drilling machine


Rotary Bored Hole Pile Equipment , Hydraulic Piling Rig Max Pile Diameter 1200mm

Rotary Drilling Rig ModelKR50A
Excavator Size14t-16t20t-23t24t+
Max. torque50 kN.m50 kN.m50 kN.m
Max. drilling diameter1200 mm1200 mm1200 mm
Max. drilling depth16 m20 m24 m
Main winch pull force70 kN75 kN75 kN
Main cylinder trip1100 mm1100 mm1100 mm
Auxiliary winch pull force65 kN65 kN65 kN
Main winch speed48 m/min48 m/min48 m/min
Mast inclination(Lateral)±6°±6°±6°
Mast inclination(Forward)-30°~ ﹢90°-30°~﹢90°-30°~﹢90°
Working speed7-40rpm7-40rpm7-40rpm
Min. radius of gyration2800mm2950mm5360mm
Max. pilot pressure31.5Mpa31.5Mpa31.5Mpa
Operating height8868mm9926mm11421mm
Operating width2600mm2800mm3300mm
Transport height2731mm3150mm3311mm
Transport width2600mm2800mm3300mm
Transport length10390mm11492mm12825mm
Transport weight6.1t6.5t7t
RemarkRestructuring big armRestructuring big armRestructuring big arm

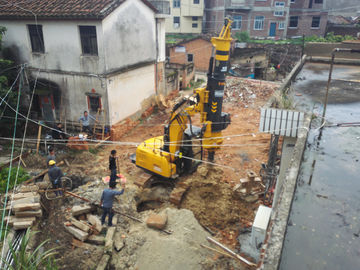

construction photos

Track Hydraulic Piling Rig For Construction Engineering Ground Foundation Max. Drilling Diameter 1200 Mm Torque 50kN.M 0Track Hydraulic Piling Rig For Construction Engineering Ground Foundation Max. Drilling Diameter 1200 Mm Torque 50kN.M 1



Our Services

Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.

FAQ

Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
