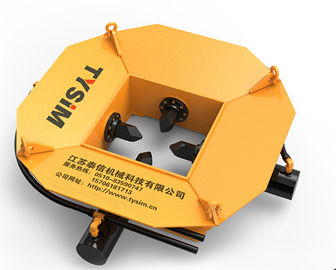

Concrete Pile Cutter , Variable Module Combination Quantity Hydraulic Square Pile Breaker Machine

Concrete Pile Cutter , Variable Module Combination Quantity Hydraulic Square Pile Breaker Machine
Concrete Pile Cutter , Variable Module Combination Quantity Hydraulic Square Pile Breaker Machine Concrete Pile Cutter , Variable Module Combination Quantity Hydraulic Square Pile Breaker Machine

Large Image :  Concrete Pile Cutter , Variable Module Combination Quantity Hydraulic Square Pile Breaker Machine

Product Details:
Place of Origin: Jiangsu, China
Brand Name: TYSIM
Certification: CE, ISO9001
Model Number: KP450S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden packing, suitable for shipping
Delivery Time: 8-12 workday after receive the advice payment
Supply Ability: 50 per mouth
Detailed Product Description
Pile Diameter: 350~450mm Max.rod Pressure: 280kN
Crowd Stroke: 135mm Max. Crowd Pressure: 30MPa
Max. Cylinder Required: 20L/min Quantity/8h: 100/8h
Max. Single Cutting Height: ≤300mm Overall Weight: 0.65t
Operating Size: 1490*1490*1500mm Type: Hydraulic Pile Breaker
High Light:

pile cutting machine

,

hydraulic pile cutter



Concrete Pile Cutter , Variable Module Combination Quantity Hydraulic Square Pile Breaker Machine 0





TYSIM Hydraulic Piling Rig KP450S



Technical Specification of KP450S Hydraulic Pile Breaker
Type KP450S
Pile length 350~450mm
Max. rod pressure 280kN
Max. cylinder stroke 135mm
Max. crowd pressure 30MPa
Max. single cylinder flow 20L/min
Quantity/8h 100/8h
Max. single cutting height ≤300mm
Excavator capacity ≥8t
Operating size 1490×1490×1500mm
Total weight 0.65t

TYSIM Hydraulic Piling Rig KP450S



Technical Specification of KP450S Hydraulic Pile Breaker
Type KP450S
Pile length 350~450mm
Max. rod pressure 280kN
Max. cylinder stroke 135mm
Max. crowd pressure 30MPa
Max. single cylinder flow 20L/min
Quantity/8h 100/8h
Max. single cutting height ≤300mm
Excavator capacity ≥8t
Operating size 1490×1490×1500mm
Total weight 0.65t



Concrete Pile Cutter , Variable Module Combination Quantity Hydraulic Square Pile Breaker Machine 1

2. Description

Concrete Pile Cutter , Variable Module Combination Quantity Hydraulic Square Pile Breaker Machine 2

(1) The leading hydraulic pile breaker/cutter, with five patented technologies, is the most efficient equipment to crushing the fundation piles and fills the China gap.



(2) Using advanced modular design, it can be used for crushing pile of different diameters by changing the module combination quantity.



(3) It can be installed on a larege variety of construction machinery, realizing the versatility and economy.



3.The operation steps of the pile



(1) Make the pile breaker move to the place of the pile head.



(2) Adjust the height of the pile breaker to the suitable cutting place (pleas refer to the construction parameter list, otherwise the chain may be broken), and clamp the pile posotion to be cut.



(3) Adjust the excavator's systrm pressure according to the concrete strength, and pressurize the cylinder until the concrete pile is broken under high pressure.



(4) After cutting the pile, hoist the concrete block.



(5) Move the crushed pile to the designed position.





Concrete Pile Cutter , Variable Module Combination Quantity Hydraulic Square Pile Breaker Machine 3



Company Information

Concrete Pile Cutter , Variable Module Combination Quantity Hydraulic Square Pile Breaker Machine 4



Concrete Pile Cutter , Variable Module Combination Quantity Hydraulic Square Pile Breaker Machine 5









Concrete Pile Cutter , Variable Module Combination Quantity Hydraulic Square Pile Breaker Machine 6Concrete Pile Cutter , Variable Module Combination Quantity Hydraulic Square Pile Breaker Machine 7

FAQ
Q1: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.

Q2:Why Choose Us?

1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
