Product Details:
|
| Screen Type: | 7 "TFT | Buttons Control: | 8 Rubber Membrane Translucent Keys, Life ≥1 Million Times |
|---|---|---|---|
| Program Space: | 1MB Flash + 16MB NorFlash | Memory Space: | 128KB RAM + 8KB EEPROM + 1MB SRAM |
| Installation Method: | Embedded Or Wall-mounted | Connection Way: | An 8-core, A 12-core, Two 5-pin M12 Circular Connector |
| Brightness: | 400cd/㎡ | Shell Material: | Die-cast Aluminum |
| Protection Grade: | Front IP65 | Processor: | 32-bit Embedded Microprocessor + FPGA |
| High Light: | electronic throttle body,industrial programmable controller |
||

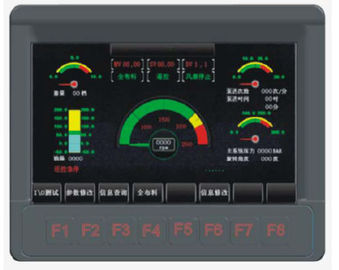

7 -inch XQ3103 color display
Screen of 7 "TFT color indicator displays graphically , flexible configuration and can condition monitoring, alarm information prompts, system diagnostics, video surveillance and other functions.
Wide supply voltage range, low-power, reverse polarity protection, comes with a buzzer alarm. Configuring CAN, RS232 communication interface, easy system integration, system expansion, providing an open, programmable platform, can realize customized design.
| Technical parameters of XQ3103 | |||
| Processor | 32-bit embedded microprocessor, clock speed 120MHz | ||
| Screen Type | 7" TFT | ||
| Viewing angle | Left: 60 °, right: 60 °, up: 40 °, down: 55 ° | ||
| Resolution | 800 × 480,65536 color | ||
| Brightness | 400cd/m2 | ||
| Button control | 8 rubber membrane translucent keys, life ≥1 million times | ||
| Program space | 1MB Flash + 16MB NorFlash | ||
| Memory space | 128KB RAM + 8KB EEPROM + 1MB SRAM | ||
| Calendar Clock | Yes | ||
| Built-in buzzer | Yes | ||
| Connection | An 8-core, a 12-core, two 5-pin M12 circular connector | ||
| Working temperature | -35~+75℃ | ||
| Storage temperature | -40~+80℃ | ||
| Relative humidity | 20%~96% RH | ||
| Atmospheric pressure | 86~106 KPa | ||
| Shell Material | Die-cast aluminum | ||
| Installation | Embedded or wall-mounted | ||
| Electrical parameters | |||
| Supply voltage | DC12V / DC24V, range DC9V ~ DC36V, reverse polarity protection | ||
| Power consumption | ≤9W | ||
| Communication Interface | 2-line CAN, 1-line RS232 | ||
|
CAN: compliance with ISO 11898 standard, the baud rate: 50Kbit / s ~ 1Mbit / s (the default value 250Kbit / s); RS232: standard RS232 communication baud rate 4.8 / 9.6 / 19.2Kbit / etc (default value 9.6 Kbit / s) |
|||
| Video Input | Line 4: CVBS signal formats PAL or NTSC, connected with 75Ω impedance | ||
| Environment test | |||
| Degree of protection | Front IP65 | ||
| Anti-vibration characteristics | GB/T 2423.10 | ||
| Impact properties | GB/T 2423.5 | ||
| Surge Immunity | GB/T 17626.5 | ||
| Electrical fast transient burst immunity | GB/T 17626.4 | ||
| Electrostatic discharge immunity | GB/T 17626.2 | ||
| RF electromagnetic field radiation immunity | GB/T 17626.3 | ||
| RF induced conduction harassment immunity | GB/T 17626.6 | ||
