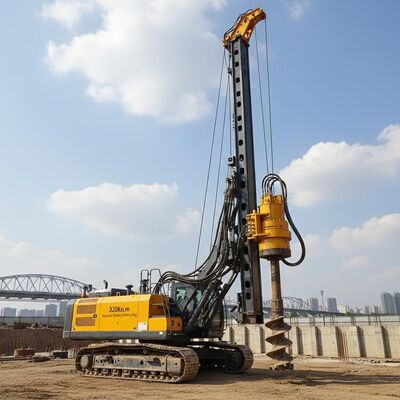

320kN.m Torque Hydraulic Rotary Drilling Rig with 54m Max Depth and 2500mm Drilling Diameter

Large Image : 320kN.m Torque Hydraulic Rotary Drilling Rig with 54m Max Depth and 2500mm Drilling Diameter

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	TYSIM
Certification:	CE/ISO900A
Model Number:	KR300C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Nude packing and overall transport by sea with roll-on-roll-off ship; One Flat rack container.
Delivery Time:	45 working days after received your payment
Payment Terms:	T/T or LC
Supply Ability:	30 sets per month

Contact Now

320kN.m Torque Hydraulic Rotary Drilling Rig with 54m Max Depth and 2500mm Drilling Diameter

Description

Max. Drilling Depth:	54m	Torque:	320 KN.m
Max. Crowd Pressure:	230 KN	Speed Of Rotation:	5~27 Rpm
Max. Drilling Diameter:	2500 Mm	Max. Crowd Pull:	220 KN
Overall Weight:	89 T	Main Winch Line Pull:	320 KN
Travel Speed:	1.4Km/h	Stroke:	6000mm
Operating Height:	22600mm
Highlight:	320kN.m torque hydraulic piling rig , 54m max depth rotary drilling rig , 2500mm drilling diameter hydraulic rig

320kN.m Hydraulic Rotary Drilling Rig for Metro and Infrastructure Piling Projects

Heavy-Duty Rotary Piling Equipment for Deep Foundation Engineering

The 320kN.m Hydraulic Rotary Drilling Rig is designed for modern infrastructure construction and large-scale piling operations. Equipped with a high-power CAT engine and advanced hydraulic technology, this piling rig delivers exceptional drilling capability for demanding foundation engineering projects.

Its large drilling diameter and strong torque performance make it ideal for bridge construction, metro systems, airport foundations, and industrial building projects.

Superior Drilling Performance

The KR300C rotary drilling rig achieves a maximum drilling depth of 54 meters and drilling diameter of 2500mm. The machine provides stable drilling performance even in hard rock and complex geological conditions.

Key Performance Features

320kN.m maximum drilling torque
Fast rotary speed from 5-27rpm
High crowd force for improved drilling penetration
Efficient winch system for smooth operation
Stable chassis for safer construction

Reliable Power System

259kW rated output power
Stable fuel performance
Strong operating reliability
Lower fuel consumption

The powerful engine supports continuous drilling operations on large construction sites.

Premium Imported Hydraulic Components

The hydraulic system integrates internationally recognized brands:

REXROTH reducers
KAWASAKI hydraulic pumps
Imported hydraulic hoses

This combination improves machine efficiency and extends service life under heavy workloads.

Technical Data

Item	Data
Model	KR300C
Max Depth	54m
Max Diameter	2500mm
Torque	320kN.m
Main Winch Pull	320kN
Auxiliary Winch Pull	110kN
Engine Power	259kW
Weight	89 Tons

Applications

This hydraulic piling machine is widely used for:

Metro rail foundation drilling
Highway and bridge engineering
Urban infrastructure projects
High-rise building foundations
Energy industry construction
Industrial plant foundations

Benefits for Construction Contractors

Improve Project Efficiency

The strong drilling capability reduces drilling time and improves project productivity.

Lower Maintenance Costs

CAT undercarriage parts are easy to source globally, reducing maintenance difficulties and operating expenses.

High Reliability

The reinforced structural design ensures stable operation during long-term piling work.

Why Global Customers Choose TYSIM

TYSIM focuses on pile foundation machinery manufacturing and has obtained more than 40 patents in piling engineering equipment. The company is recognized for reliable products, competitive pricing, and professional technical service.
