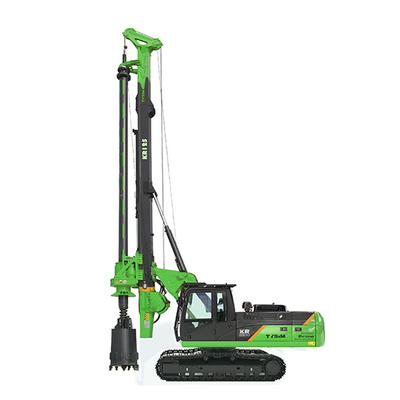

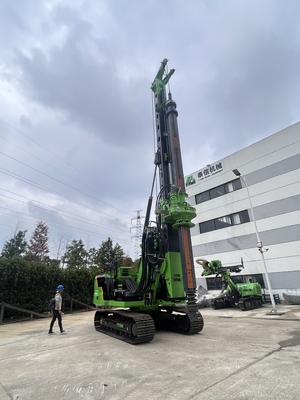

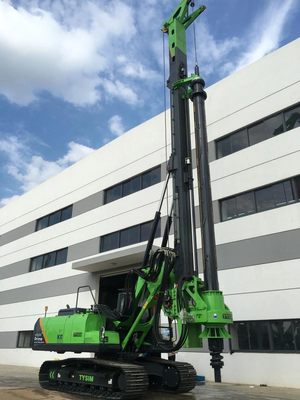

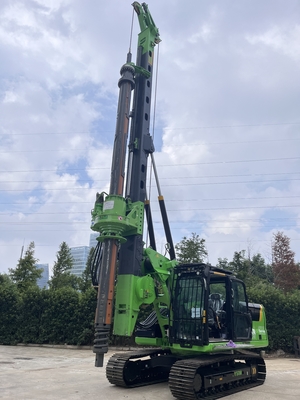

Product Details:
|
Max. Torque: | 220 KN.m | Max. Drilling Diameter: | 1800/2000 Mm |
---|---|---|---|
Max. Drilling Depth: | 64/51 M | Speed Of Rotation: | 5~26 Rpm |
Max. Crowd Pressure: | 210kN | Main Winch Line Speed: | 60m/min |
Stroke(crowd System): | 5000mm | Operating Height: | 21082 Mm |
Operating Width: | 4300mm | Overall Weight: | 65 T |
Auxiliary Winch Line Speed: | 60m/min | Mast Inclination(lateral): | ±5° |
Max. Operating Pressure: | 35 MPa | Pilot Pressure: | 4 MPa |
Highlight: | 64/51m Hydraulic Piling Rig,220 KN.m Hydraulic Piling Rig,Mature Excavator Hydraulic Piling Rig |
Technical Specification
Type | KR220C |
Torque | 220 KN.m |
Max. diameter | 1800/2000 mm |
Max. drilling depth | 64/51 m |
Speed of rotation | 5~26 rpm |
Max. crowd pressure | 210kN |
Max. crowd pull | 2200 kN |
Main winch line pull | 230kN |
Main winch line speed | 60m/min |
Auxiliary winch line pull | 90kN |
Auxiliary winch line speed | 60m/min |
Stroke(crowd system) | 5000mm |
Mast inclination(lateral) | ±5° |
Mast inclination(forward) | 5° |
Max. operating pressure | 35 MPa |
Pilot pressure | 4 MPa |
Track shoe width | 800 mm |
Operating height | 21082 mm |
Operating width | 4300mm |
Transport height | 3360mm |
Transport width | 3000mm |
Overall weight | 65 t |
1. Undercarriage-----Reliable & Mature Excavator Supplier for Choice
Type: New & Used
Brand: CAT, JCM, SINOMACH, SANY, XCMG and other
2. Hydraulic Parts-----World Famous Brands
Gearbox Reducer: Imported REXROTH
Main Pump & Valve: Imported KAWASAKI (Japan)
Hose: Imported
3. Structure Parts-----Professional Structure Parts Supplier for XCMG
Certificates
Our Services
Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
FAQ
Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
