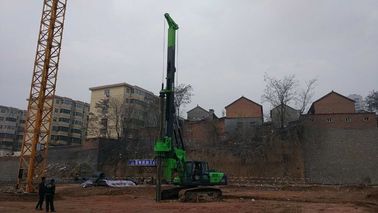

KR150A Rotary Drilling Pile Rig Well Drilling 1500mm Concrete Pile Bored Machine

KR150A Rotary Drilling Pile Rig Well Drilling 1500mm Concrete Pile Bored Machine
KR150A Rotary Drilling Pile Rig Well Drilling 1500mm Concrete Pile Bored Machine
KR150A Rotary Drilling Pile Rig Well Drilling 1500mm Concrete Pile Bored Machine KR150A Rotary Drilling Pile Rig Well Drilling 1500mm Concrete Pile Bored Machine KR150A Rotary Drilling Pile Rig Well Drilling 1500mm Concrete Pile Bored Machine

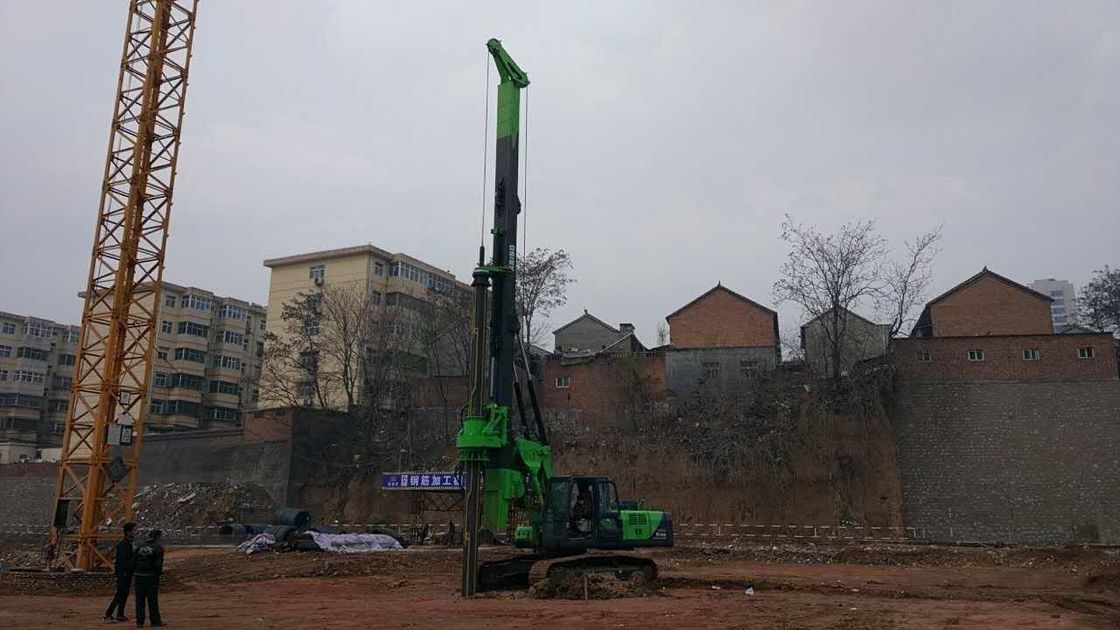

Large Image :  KR150A Rotary Drilling Pile Rig Well Drilling 1500mm Concrete Pile Bored Machine

Product Details:
Place of Origin: jiangsu，China
Brand Name: TYSIM
Certification: CE/ISO900A
Model Number: KR150
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Nude packing and overall transport by sea with roll-on-roll-off ship; One Flat rack container.
Delivery Time: 45 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month
Contact Now

KR150A Rotary Drilling Pile Rig Well Drilling 1500mm Concrete Pile Bored Machine

Description
Torque: 150 KN.m Max. Drilling Diameter: 1300/1500mm
Max. Drilling Depth: 42/52m
Highlight:

KR150A Rotary Drilling Pile Rig

,

1500mm Drilling Pile Rig

,

Concrete Pile Bored Rig Machine

What is a hydraulic piling rig used for?

Piling rigs are mainly used to drill in silty clay, sandy soil, clay, etc. In addition, it is vastly used in diaphragm walls, foundation projects, foundation reinforcement, and other cast-in-place piles. A piling rig has a rated engine power of the range 108 – 450kW, torque output of the range 60 – 400kN.

​



Technical Specification of KR90C Rotary Drilling Rig
Type KR150A
Torque 150 kN.m
Max. drilling diameter 1300/1500mm
Max. drilling depth 42/52m
Speed of rotation 6~30 rpm
Max. crowd pressure 100 kN
Max. crowd pull 150 kN
Main winch line pull 110kN
Main winch line speed 78m/min
Auxiliary winch line pull 60 kN
Auxiliary winch line speed 60 m/min
Stroke(crowd system) 3800 mm
Mast inclination(lateral) ±3°
Mast inclination(forward) 5°
Max. hydraulic pressure 34.3 MPa
Control hydraulic pressure 3.9 MPa
Travel speed 2.8km/h
Traction force 229kN
Operating height 16175mm
Operating width 3390 mm
Transport height 3655 mm
Transport width 3390 mm
Transport length 14765 mm
Overall weight 40T
Chassis
Type Sinomach
Engine QSB7

​



KR150A Rotary Drilling Pile Rig Well Drilling 1500mm Concrete Pile Bored Machine 4

KR150A Rotary Drilling Pile Rig Well Drilling 1500mm Concrete Pile Bored Machine 5

Tag:

bored pile drilling machine,

hydraulic rig machine,

Borehole Drilling Machine
