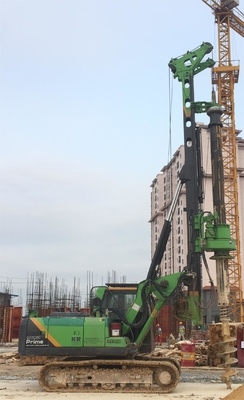

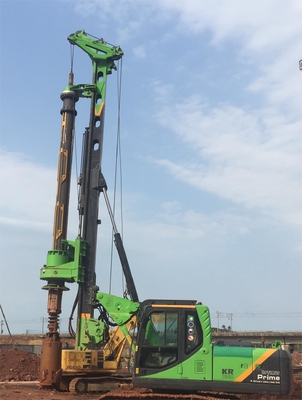

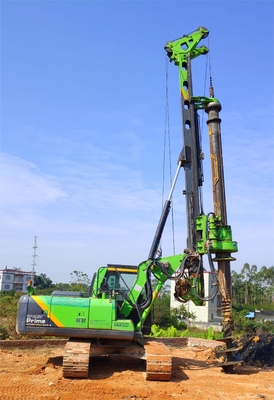

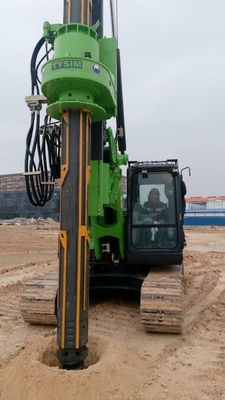

Product Details:
|
| Max. Drilling Depth: | 20 M | Operating Height: | 10600 Mm |
|---|---|---|---|
| Specification: | 20 T | ||
| High Light: | Tysim Piling Rig Machine for Building,Kr60 Rotary Drill Rig,Rotary Foundation Piling Drill Rig |
||
| Type | KR60A |
| Torque | 60 KN.m |
| Max. diameter | 1200 mm |
| Max. drilling depth | 20 m |
| Speed of rotation | 8~30 rpm |
| Max. crowd pressure | 60 kN |
| Max. crowd pull | 90 kN |
| Main winch line pull | 65 kN |
| Main winch line speed | 48 m/min |
| Auxiliary winch line pull | 20 kN |
| Auxiliary winch line speed | 48 m/min |
| Stroke(crowd system) | 2000 mm |
| Mast inclination(lateral) | ±3° |
| Mast inclination(forward) | 4° |
| Max. operating pressure | 34.3 MPa |
| Pilot pressure | 3.9 MPa |
| Travel speed | 3 km/h |
| Traction force | 98 kN |
| Operating height | 10600 mm |
| Operating width | 2700mm |
| Transport height | 3250 mm |
| Transport width | 2700 mm |
| Transport length | 9500mm |
| Overall weight | 20 t |
