Product Details:
|
| Max. Torque: | 125kN.m | Max. Drilling Diameter: | 1300/1500 Mm |
|---|---|---|---|
| Max. Drilling Depth: | 43/37 M | Speed Of Rotation: | 6~30 Rpm |
| Max. Cylinder Stroke: | 3200 Mm | Excavator Size: | 35 T |
| High Light: | KR125A Rotary Drilling Rig,Rotary Drilling Rig Pile Machine,37m Rotary Drilling Rig Pile Machine |
||
Technical Specification
| Type | KR125A |
| Torque | 125 KN.m |
| Max. diameter | 1300 mm |
| Max. drilling depth | 37 m(Lock)/ 43 m(Friction kelly bar) |
| Speed of rotation | 8~30 rpm |
| Max. crowd pressure | 100 kN |
| Max. crowd pull | 150 kN |
| Main winch line pull | 110 kN |
| Main winch line speed | 78 m/min |
| Auxiliary winch line pull | 60 kN |
| Auxiliary winch line speed | 60 m/min |
| Stroke(crowd system) | 3200 mm |
| Mast inclination(lateral) | ±3° |
| Mast inclination(forward) | 5° |
| Max. operating pressure | 34.3 MPa |
| Pilot pressure | 3.9 MPa |
| Travel speed | 3 km/h |
| Traction force | 220 kN |
| Operating height | 14980 mm |
| Operating width | 3000mm |

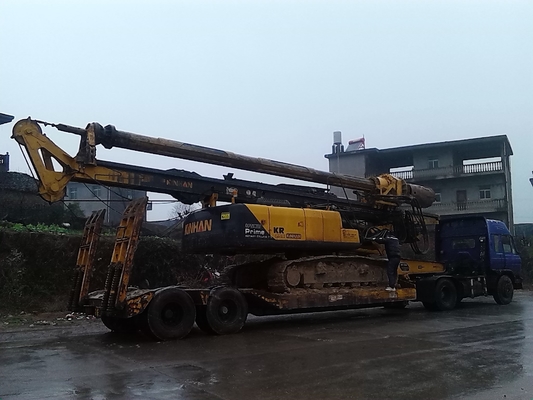

| Transport height | 3580 mm |
| Transport width | 3000 mm |
| Transport length | 13830mm |
| Overall weight | 35 t |
Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 7 counstries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
