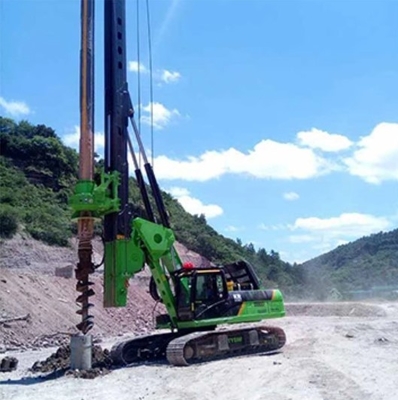

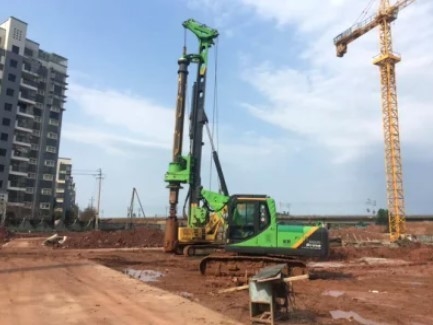

Product Details:
|
| Max. Torque: | 60 KN.m | Max. Drilling Diameter: | 1200 Mm |
|---|---|---|---|
| Max. Drilling Depth: | 20 M | Speed Of Rotation: | 8~30 Rpm |
| Max. Cylinder Stroke: | 2000 Mm | Excavator Size: | 24 T |
| Torque: | 220 KN.m | Drilling Depth: | 57 M(Lock)/ 88 M(Friction Kelly Bar) |
| Pull Force: | 300 KN | ||
| High Light: | Hydraulic Piling Machine With Engineer Construction,KR60A Small Hydraulic Piling Machine,1200 mm Hydraulic Piling Rig Machine |
||
Technical Specification
| Type | KR60A |
| Torque | 60 KN.m |
| Max. diameter | 1200 mm |
| Max. drilling depth | 20 m |
| Speed of rotation | 8~30 rpm |
| Max. crowd pressure | 60 kN |
| Max. crowd pull | 90 kN |
| Main winch line pull | 65 kN |
| Main winch line speed | 48 m/min |
| Auxiliary winch line pull | 20 kN |
| Auxiliary winch line speed | 48 m/min |
| Stroke(crowd system) | 2000 mm |
| Mast inclination(lateral) | ±3° |
| Mast inclination(forward) | 4° |
| Max. operating pressure | 34.3 MPa |
| Pilot pressure | 3.9 MPa |
| Travel speed | 3 km/h |
| Traction force | 98 kN |
| Operating height | 10600 mm |
| Operating width | 2700mm |
| Transport height | 3250 mm |
| Transport width | 2700 mm |
| Transport length | 9500mm |
| Overall weight | 20 t |
Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 7 counstries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
