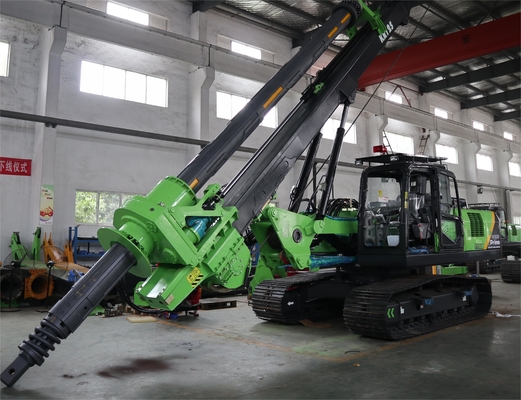

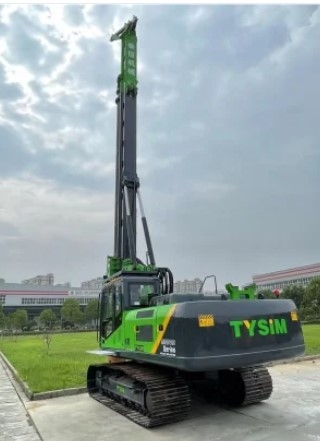

Product Details:
|
| Max. Torque: | 125 | Max. Diameter: | 1800mm |
|---|---|---|---|
| Max. Depth: | 20/30m | ||
| High Light: | Bridge Building Machine Geotechnical Drill Rig,Hydraulic Pile Driver Machine KR125ES,1800mm Pile Driver Drill Rig Machine |
||
| Type | KR125ES |
| Torque | 125 KN.m |
| Max. diameter | 1600 mm |
| Max. drilling depth | 20m(Lock)/ 30 m(Friction kelly bar) |
| Speed of rotation | 8~30 rpm |
| Max. crowd pressure | 100 kN |
| Max. crowd pull | 110 kN |
| Main winch line pull | 80kN |
| Main winch line speed | 60m/min |
| Auxiliary winch line pull | 60 kN |
| Auxiliary winch line speed | 60 m/min |
| Stroke(crowd system) | 2000 mm |
| Mast inclination(lateral) | ±3° |
| Mast inclination(forward) | 3° |
| Max. operating pressure | 34.3 MPa |
| Pilot pressure | 3.9 MPa |
| Travel speed | 3 km/h |
| Traction force | 220 kN |
| Operating height | 8000 mm |
| Operating width | 3600mm |
| Transport height | 3425 mm |
| Transport width | 3000 mm |
| Transport length | 9761mm |
| Overall weight | 32 t |
FAQ
Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
