20m Kr60c Rotary Hydraulic Drilling Rig With Cat Chassis Pile Foundation Construction

20m Kr60c Rotary Hydraulic Drilling Rig With Cat Chassis Pile Foundation Construction
20m Kr60c Rotary Hydraulic Drilling Rig With Cat Chassis Pile Foundation Construction 20m Kr60c Rotary Hydraulic Drilling Rig With Cat Chassis Pile Foundation Construction 20m Kr60c Rotary Hydraulic Drilling Rig With Cat Chassis Pile Foundation Construction

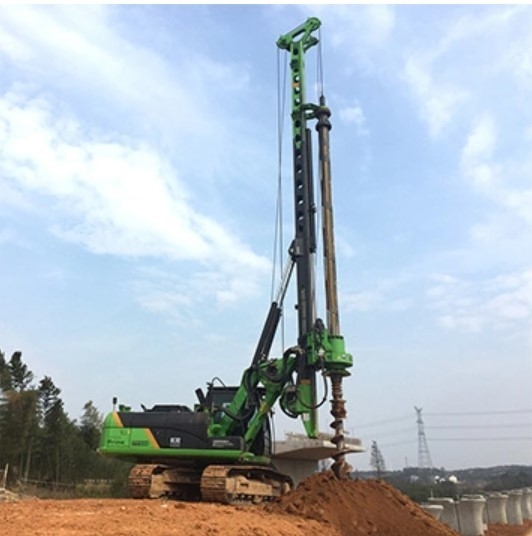

Large Image :  20m Kr60c Rotary Hydraulic Drilling Rig With Cat Chassis Pile Foundation Construction

Product Details:
Place of Origin: Jiangsu, China
Brand Name: TYSIM
Certification: CE,ISO9001
Model Number: KR60C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Method One: Nude packing and overall transport by sea with roll-on-roll-off ship.
Delivery Time: 30 working days after receiving the advance payment
Payment Terms: L/C, T/T
Supply Ability: 5 set per month

20m Kr60c Rotary Hydraulic Drilling Rig With Cat Chassis Pile Foundation Construction

Description
Max. Torque: 60kN.m Max. Drilling Diameter: 1000 Mm
Max. Drilling Depth: 16 M(Lock)/ 20 M(Friction Kelly Bar) Speed Of Rotation: 8~30 Rpm
Max. Crowd Pressure: 90 KN Main Winch Line Speed: 70 M/min
Stroke(crowd System): 3200 Mm Operating Height: 11200 Mm
Operating Width: 2490mm Overall Weight: 22 T
Travel Speed: Travel Speed 3km/h Traction Force 114 KN Max. Operating Pressure: 35 MPa
Mast Inclination(lateral): ±3° Pilot Pressure: 4.1MPa
High Light:

Rotary Hydraulic Drilling Rig

,

Kr60c Hydraulic Drilling Rig

,

20m Hydraulic Drilling Rig



Technical Specification

Type KR60C
Torque 60 KN.m
Max. diameter 1000 mm
Max. drilling depth 16 m(Lock)/ 20 m(Friction kelly bar)
Speed of rotation 8~30 rpm
Max. crowd pressure 90 kN
Max. crowd pull 100 kN
Main winch line pull 80 kN
Main winch line speed 70 m/min
Auxiliary winch line pull 30 kN
Auxiliary winch line speed 40 m/min
Stroke(crowd system) 3200 mm
Mast inclination(lateral) ±3°
Mast inclination(forward)
Max. operating pressure 35 MPa
Pilot pressure 4.1MPa
Travel speed 3km/h
Traction force 114 kN
Operating height 11200 mm
Operating width 2490mm
Transport height 3300 mm
Transport width 2490 mm
Transport length 9970mm
Overall weight 22 t





1. Undercarriage-----Reliable & Mature Excavator Supplier for Choice

Type: New & Used

Brand: CAT, JCM, SINOMACH, SANY, XCMG and other



2. Hydraulic Parts-----World Famous Brands

Gearbox Reducer: Imported REXROTH

Main Pump & Valve: Imported KAWASAKI (Japan)

Hose: Imported



3. Structure Parts-----Professional Structure Parts Supplier for XCMG

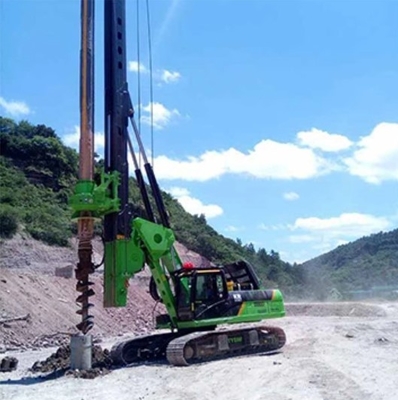

20m Kr60c Rotary Hydraulic Drilling Rig With Cat Chassis Pile Foundation Construction 0



20m Kr60c Rotary Hydraulic Drilling Rig With Cat Chassis Pile Foundation Construction 1



20m Kr60c Rotary Hydraulic Drilling Rig With Cat Chassis Pile Foundation Construction 2

Our Services

Why Choose Us?

1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.

2. Supply professional customized service to meet all your requirements.

3. Our rotary drilling rigs have been sold to more than 7 counstries, such as Russia, Australia, Thailand, Zambia and others.

4. Competitive price.



FAQ

Q1: What is the Warranty of the Rotary Drilling Rig?

The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.

Please contact with us for detailed Warranty Regulation.
