Product Details:
|
| Max. Torque: | 60 KN.m | Max. Drilling Diameter: | 1200 Mm |
|---|---|---|---|
| Max. Drilling Depth: | 16 M(Lock)/ 20 M(Friction Kelly Bar) | Speed Of Rotation: | 8~30 Rpm |
| Max. Crowd Pressure: | 60kN | Main Winch Line Speed: | 48 M/min |
| Stroke(crowd System): | 2000 Mm | Operating Height: | 10600 Mm |
| Operating Width: | 2690mm | Overall Weight: | 20 T |
| Auxiliary Winch Line Speed: | 48 M/min | Mast Inclination(lateral): | ±3° |
| Max. Operating Pressure: | 34.3 MPa | Pilot Pressure: | 3.9 MPa |
| Boom Length: | 20000mm | Construction Method: | CFA Construction Method |
| Crawler Length: | 8000mm | Drilling Diameter: | 2500mm |
| Drum Capacity: | 195m | Engine Electrical: | 28V,70A |
| Engine Strokedepth: | 120mm | Max Piling Force: | 360kN |
| Operating Weight: | 100000kg | Overall Weight: | 34 T |
| Rated Power: | 232KW | Transport Height: | 3480 Mm |
| Type: | Rotary Drilling Rig | ||
| Highlight: | Excavator Auger Drilling Earth Auger,400mm Hydraulic Piling Rig,30 rpm Excavator Piling Rig |
||
Technical Specification

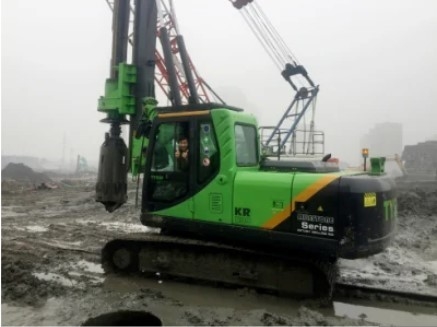

| Type | KR60A |
| Torque | 60 KN.m |
| Max. diameter | 1200 mm |
| Max. drilling depth | 16 m(Lock)/ 20 m(Friction kelly bar) |
| Speed of rotation | 8~30 rpm |
| Max. crowd pressure | 60kN |
| Max. crowd pull | 90 kN |
| Main winch line pull | 65 kN |
| Main winch line speed | 48 m/min |
| Auxiliary winch line pull | 20 kN |
| Auxiliary winch line speed | 48 m/min |
| Stroke(crowd system) | 2000 mm |
| Mast inclination(lateral) | ±3° |
| Mast inclination(forward) | 4° |
| Max. operating pressure | 34.3 MPa |
| Pilot pressure | 3.9 MPa |
| Travel speed | 2.8 km/h |
| Traction force | 98 kN |
| Operating height | 10600 mm |
| Operating width | 2690mm |
| Transport height | 3250 mm |
| Transport width | 2690 mm |
| Transport length | 9500mm |
| Overall weight | 20 t |
1. Undercarriage-----Reliable & Mature Excavator Supplier for Choice
Type: New & Used
Brand: CAT, JCM, SINOMACH, SANY, XCMG and other
2. Hydraulic Parts-----World Famous Brands
Gearbox Reducer: Imported REXROTH
Main Pump & Valve: Imported KAWASAKI (Japan)
Hose: Imported
3. Structure Parts-----Professional Structure Parts Supplier for XCMG
Certificates
Our Services
Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
FAQ
Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
