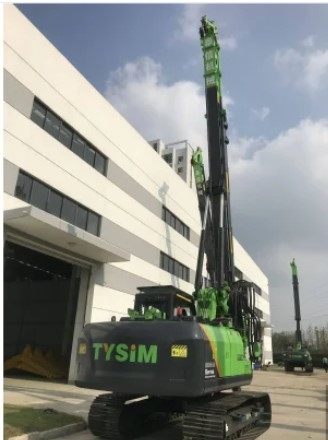

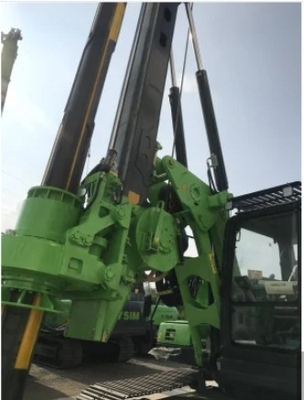

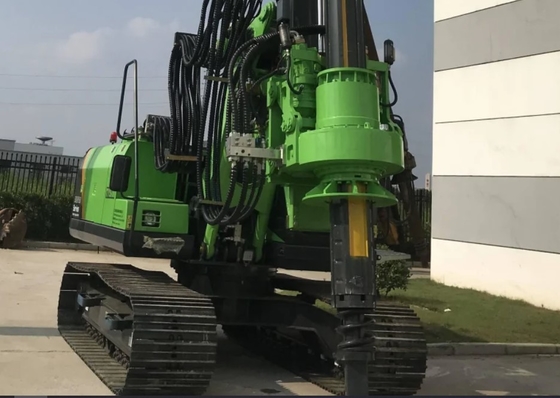

Customized Hydraulic Piling Rig Auger Teeth Drilling 12M Safe KR90A

Customized Hydraulic Piling Rig Auger Teeth Drilling 12M Safe KR90A
Customized Hydraulic Piling Rig Auger Teeth Drilling 12M Safe KR90A Customized Hydraulic Piling Rig Auger Teeth Drilling 12M Safe KR90A Customized Hydraulic Piling Rig Auger Teeth Drilling 12M Safe KR90A

Large Image :  Customized Hydraulic Piling Rig Auger Teeth Drilling 12M Safe KR90A

Product Details:
Place of Origin: Jiangsu, China
Brand Name: TYSIM
Certification: CE,ISO9001
Model Number: KR90A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Method One: Nude packing and overall transport by sea with roll-on-roll-off ship.
Delivery Time: 30 working days after receiving the advance payment
Payment Terms: L/C, T/T
Supply Ability: 5 set per month
Detailed Product Description
Max. Torque: 90 KN.m Max. Drilling Diameter: 1000/1200mm
Max. Drilling Depth: 28m Speed Of Rotation: 6~30 Rpm
Max. Crowd Pressure: 90 KN Main Winch Line Speed: 75m/min
Stroke(crowd System): 3500 Mm Operating Height: 12705mm
Operating Width: 2690 Mm Overall Weight: 24t
Max. Hydraulic Pressure: 34.3 MPa Mast Inclination(lateral): ±3°
Control Hydraulic Pressure: 3.9 MPa Travel Speed: 2.8 Km/h
High Light:

3500mm Drilling Piling Rig

,

Hydraulic Piling Rig Auger

,

KR90A Hydraulic Piling Rig

Technical Specification

Technical Specification of KR90C Rotary Drilling Rig
Type KR90A
Torque 90 kN.m
Max. drilling diameter 1000/1200mm
Max. drilling depth 28m
Speed of rotation 6~30 rpm
Max. crowd pressure 90 kN
Max. crowd pull 120 kN
Main winch line pull 80 kN
Main winch line speed 75m/min
Auxiliary winch line pull 50 kN
Auxiliary winch line speed 40 m/min
Stroke(crowd system) 3500 mm
Mast inclination(lateral) ±3°
Mast inclination(forward)
Max. hydraulic pressure 34.3 MPa
Control hydraulic pressure 3.9 MPa
Travel speed 2.8 km/h
Traction force 122 kN
Operating height 12705mm
Operating width 2690 mm
Transport height 3465 mm
Transport width 2690 mm
Transport length 11385 mm
Overall weight 24t
Chassis
Type Sinomach
Engine QSF3.8




1. Undercarriage-----Reliable & Mature Excavator Supplier for Choice

Type: New & Used

Brand: CAT, JCM, SINOMACH, SANY, XCMG and other



2. Hydraulic Parts-----World Famous Brands

Gearbox Reducer: Imported REXROTH

Main Pump & Valve: Imported KAWASAKI (Japan)

Hose: Imported



3. Structure Parts-----Professional Structure Parts Supplier for XCMG



Customized Hydraulic Piling Rig Auger Teeth Drilling 12M Safe KR90A 0



Customized Hydraulic Piling Rig Auger Teeth Drilling 12M Safe KR90A 1



Customized Hydraulic Piling Rig Auger Teeth Drilling 12M Safe KR90A 2

Certificates
Customized Hydraulic Piling Rig Auger Teeth Drilling 12M Safe KR90A 3
Customized Hydraulic Piling Rig Auger Teeth Drilling 12M Safe KR90A 4
Customized Hydraulic Piling Rig Auger Teeth Drilling 12M Safe KR90A 5

Our Services
Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.

FAQ
Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
