Technical Specification
| Excavator Size |
14t-16t |
| Max. torque |
50 kN.m |
| Max. drilling diameter |
1200 mm |
| Max. drilling depth |
16 m |
| Main winch pull force |
70 kN |
| Main cylinder trip |
1100 mm |
| Auxiliary winch pull force |
65 kN |
| Main winch speed |
48 m/min |
| Mast inclination(Lateral) |
±6° |
| Mast inclination(Forward) |
-30°~ +90° |
| Working speed |
7-40rpm |
| Min. radius of gyration |
2800mm |
| Max. pilot pressure |
31.5Mpa |
| Operating height |
8868mm |
| Operating width |
2600mm |
| Transport height |
2731mm |
| Transport width |
2600mm |
| Transport length |
10390mm |
| Transport weight |
6.1t |
| Remark |
Restructuring big arm |

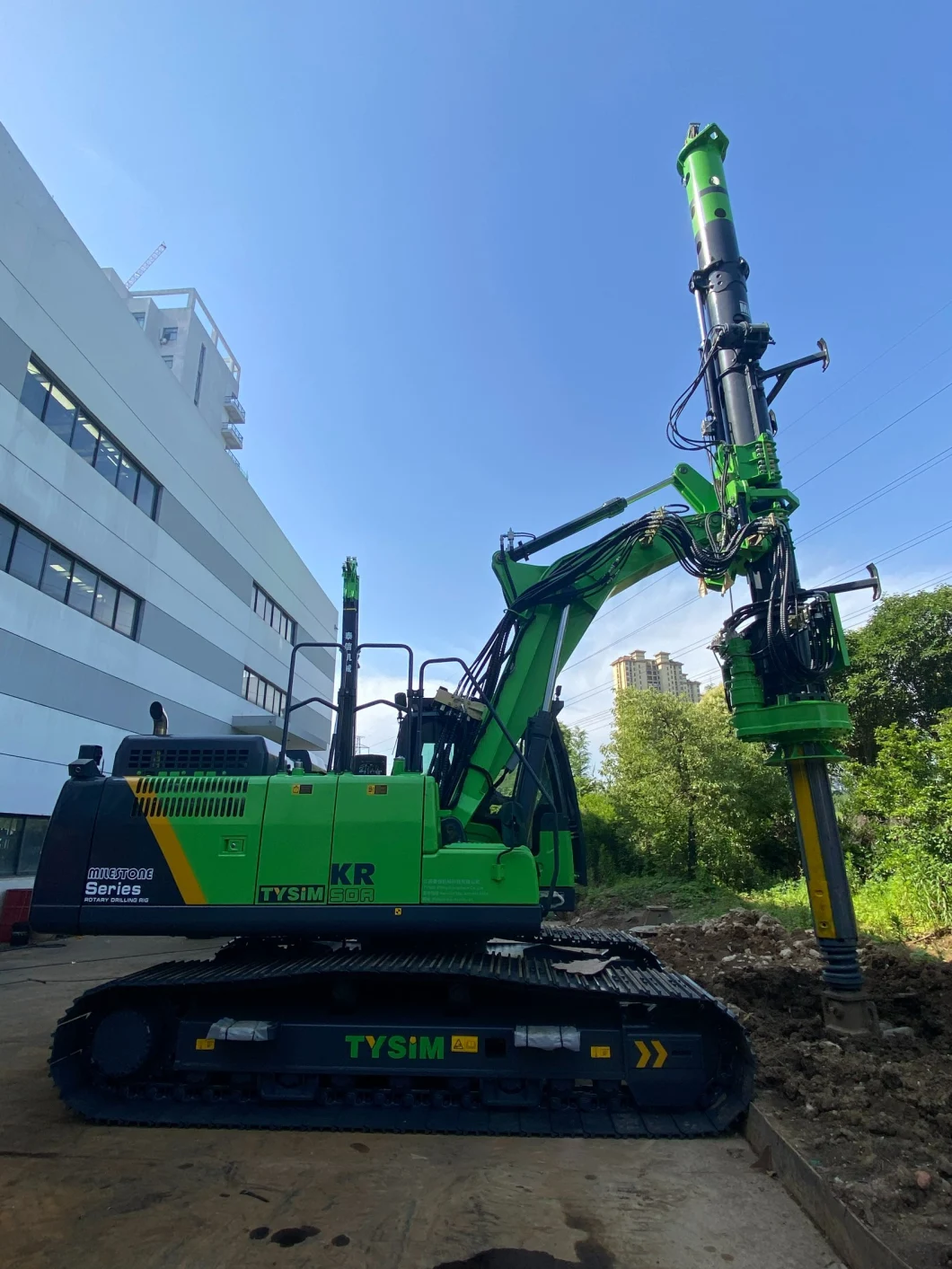

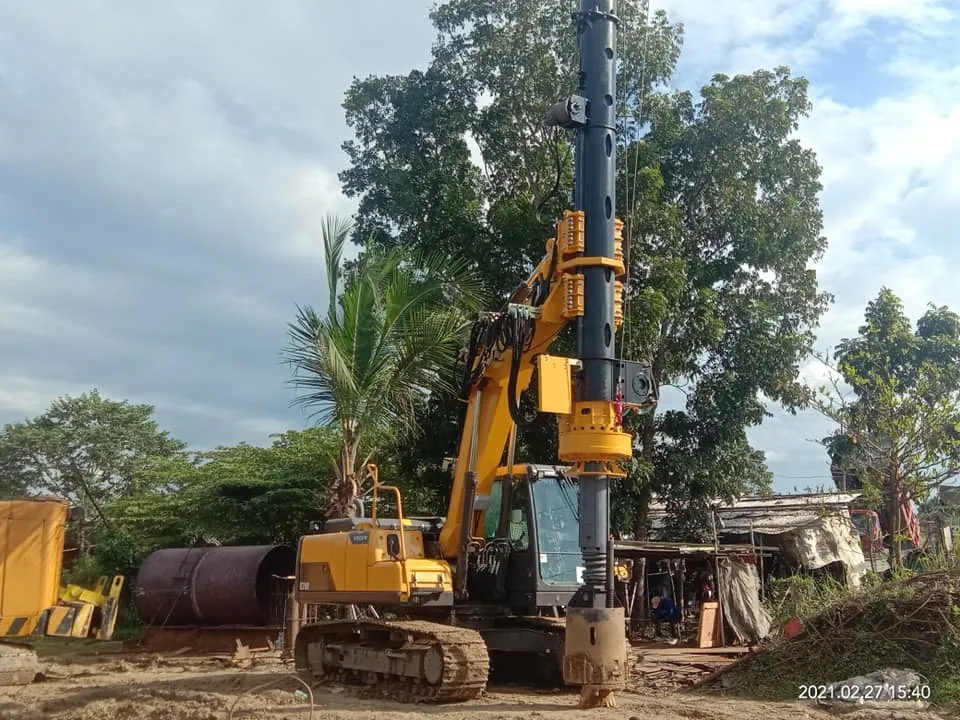

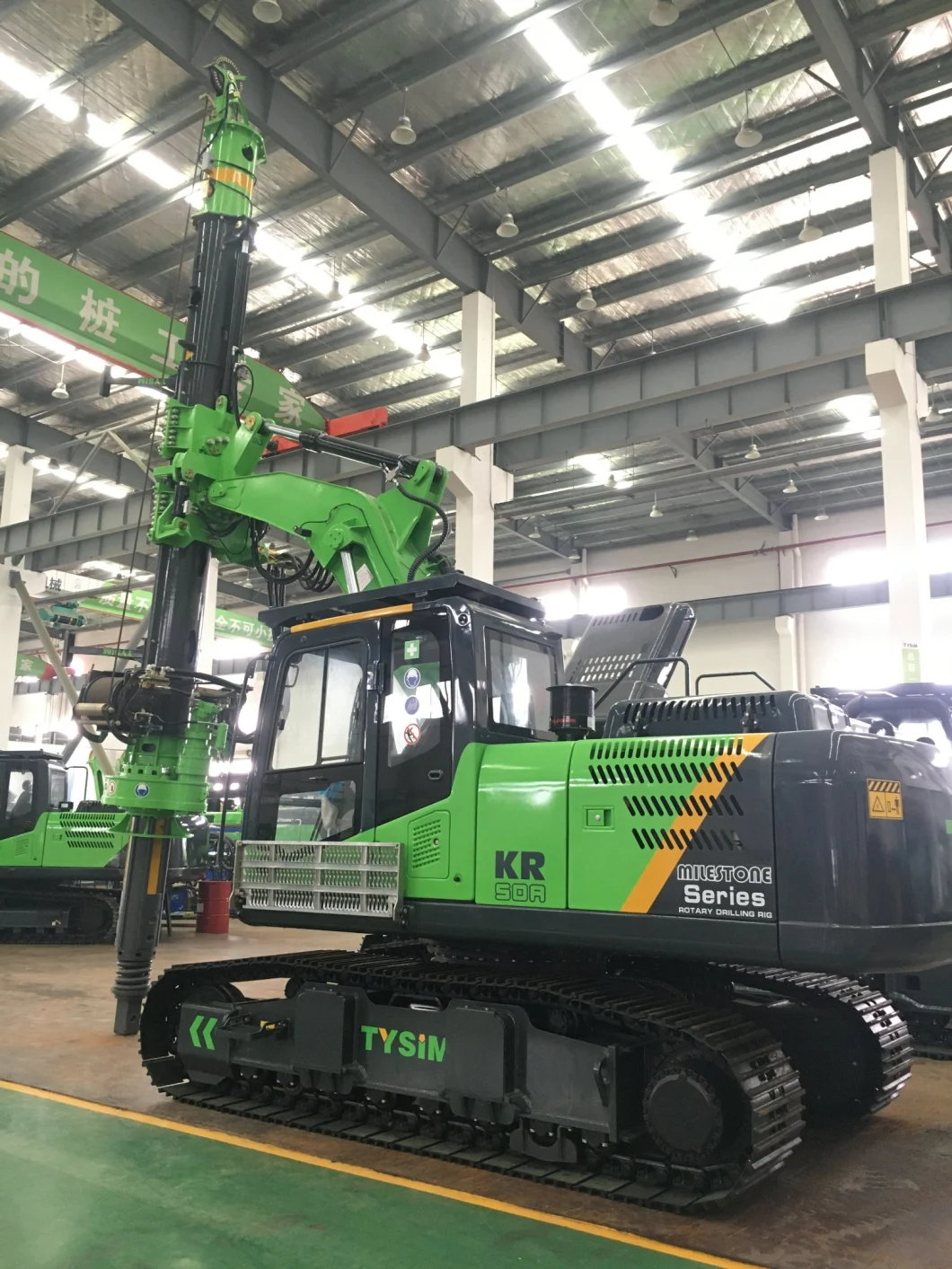

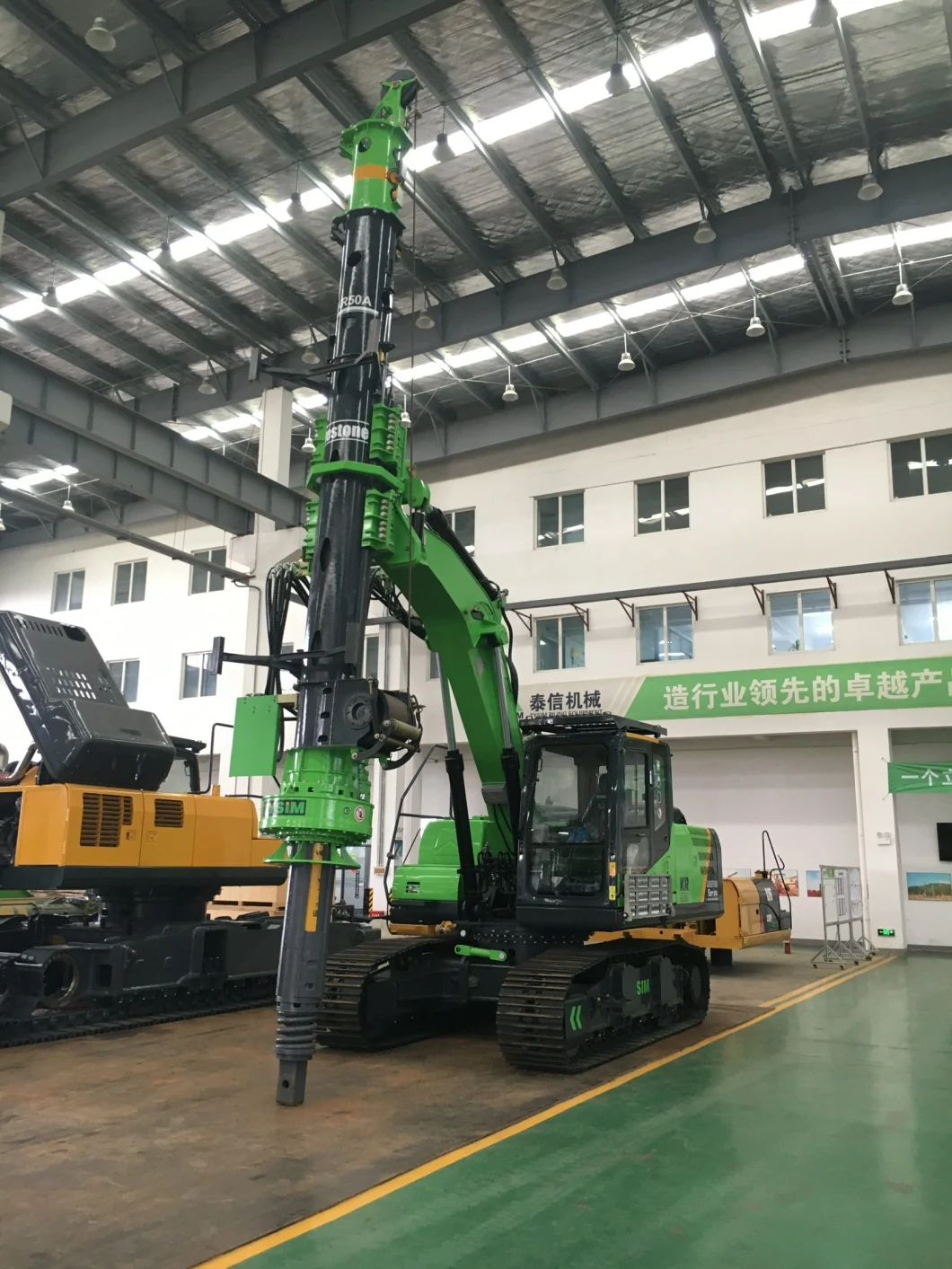

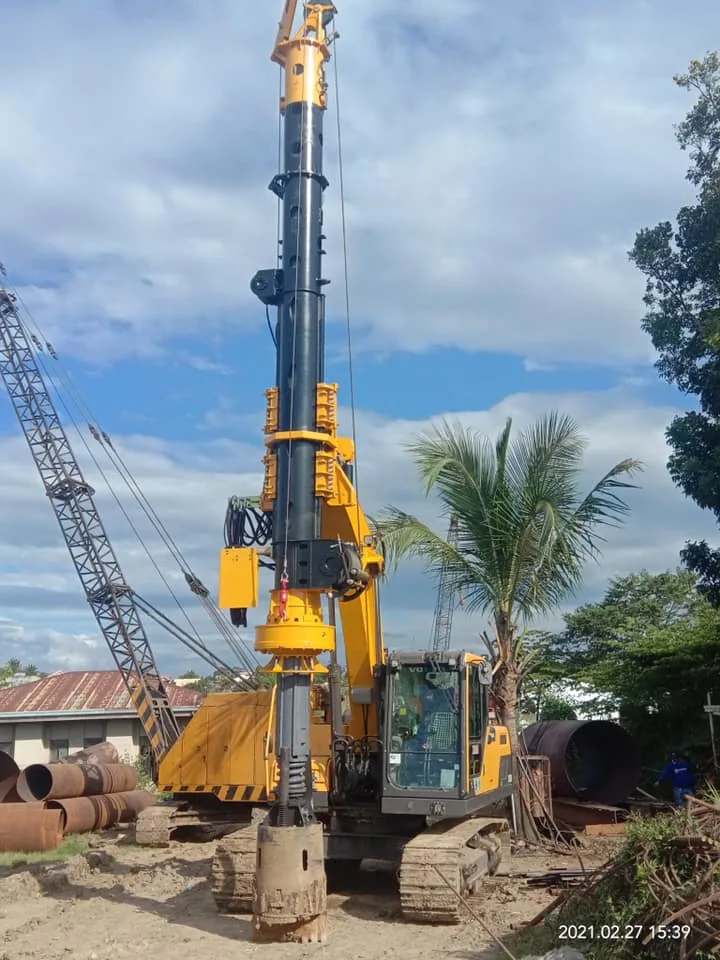

construction photos
Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 7 counstries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
FAQ
Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is half a year or 1000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
