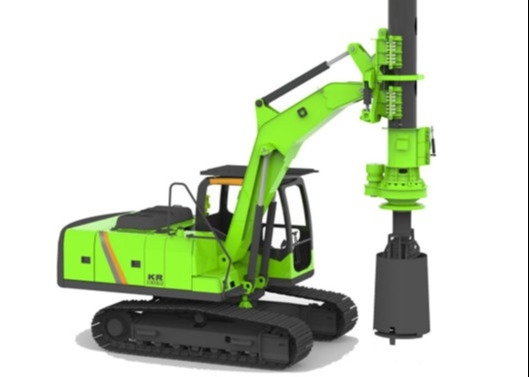

Modular Rotary Fully Hydraulic Drilling Machine 23M Single Load Rig Cylinder Pile

Modular Rotary Fully Hydraulic Drilling Machine 23M Single Load Rig Cylinder Pile
Modular Rotary Fully Hydraulic Drilling Machine 23M Single Load Rig Cylinder Pile
Modular Rotary Fully Hydraulic Drilling Machine 23M Single Load Rig Cylinder Pile Modular Rotary Fully Hydraulic Drilling Machine 23M Single Load Rig Cylinder Pile Modular Rotary Fully Hydraulic Drilling Machine 23M Single Load Rig Cylinder Pile Modular Rotary Fully Hydraulic Drilling Machine 23M Single Load Rig Cylinder Pile

Large Image :  Modular Rotary Fully Hydraulic Drilling Machine 23M Single Load Rig Cylinder Pile

Product Details:
Place of Origin: Jiangsu, China
Brand Name: TYSIM
Certification: CE,ISO9001
Model Number: KR50A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Delivery Time: 30 working days after recieving the down payment
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10 set per month

Modular Rotary Fully Hydraulic Drilling Machine 23M Single Load Rig Cylinder Pile

Description
Product Name: TYSIM KR50A Excavator Size: 10t-24t
Max. Torque: 50 KN.m Max. Drilling Diameter: 1200 Mm
Max. Drilling Depth: 16-24 M Max. Cylinder Thrust: 75 KN
Max. Cylinder Trip: 1100 Mm Main Winch Pull Force: 65 KN
High Light:

Modular Rotary Drilling Machine

,

Fully Hydraulic Rotary Drilling Rig Drill

,

23M Single Load Rotary Drilling Machine

KR50A 23M Single Load Fully Hydraulic Rotary Drilling Rig

Description:
1.Taixin Machinery KR50 Rotary Drilling Rig, as a leading integral transport modular rotary drilling rig, can realize rapid transition between transportation status and construction status
2. Cooperation with Tianjin University CNC Hydraulic Institute of Technology, which can realize the machines construction efficiently and real-time monitor;
3. With CE certification, designed in strict accordance with European Union safety standards EN791;
4. Weight optimization distribution with higher security and better stability, more safe construction;
5. Higher quality CAT Chassis ensures the great performance of the whole machine;
6. Mature overall transport design can improve transport efficiency, saving cost.





Rotary Drilling Rig Model

KR50A

Excavator Size

14t-16t

20t-23t

24t+

Max. torque

50 kN.m

50 kN.m

50 kN.m

Max. drilling diameter

1200 mm

1200 mm

1200 mm

Max. drilling depth

16 m

20 m

24 m

Max. cylinder thrust

70 kN

75 kN

75 kN

Max. cylinder trip

1100 mm

1100 mm

1100 mm

Main winch pull force

65 kN

65 kN

65 kN

Main winch speed

48 m/min

48 m/min

48 m/min

Mast inclination(Lateral)

±6°

±6°

±6°

Mast inclination(Forward)

-30°~90°

-30°~90°

-30°~90°

Working speed

7-40rpm

7-40rpm

7-40rpm

Min. radius of gyration

2800mm

2950mm

5360mm

Max. pilot pressure

31.5Mpa

31.5Mpa

31.5Mpa

Operating height

8868mm

9926mm

11421mm

Operating width

2600mm

2800mm

3300mm

Transport height

2731mm

3150mm

3311mm

Transport width

2600mm

2800mm

3300mm

Transport length

10390mm

11492mm

12825mm

Transport weight

6.1t

6.5t

7t

Remark

Restructuring big arm

Restructuring big arm

Original arm

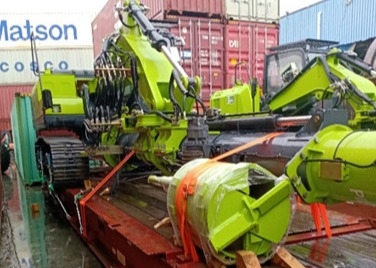

Modular Rotary Fully Hydraulic Drilling Machine 23M Single Load Rig Cylinder Pile 0Modular Rotary Fully Hydraulic Drilling Machine 23M Single Load Rig Cylinder Pile 1



Our Services

Why Choose Us?

1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.

FAQ

Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
