Product Details:
|
| Main Winch Line Speed: | 48 M/min | Max. Drilling Diameter: | 1200 Mm |
|---|---|---|---|
| Max. Cylinder Stroke: | 1100 Mm | Max. Drilling Depth: | 24 M |
| Max. Torque: | 50 KN.m | Speed Of Rotation: | 7~40 Rpm |
| Main Winch Pull Force: | 75 KN | Max. Operating Height: | 7181 Mm |
| Max. Operating Width: | 2300 Mm | Max. Transport Weight: | 7 T |
| Excavator Size: | 14 T-24 T | ||
| High Light: | Hydraulic Rotary Drilling Rig Machine,Winch Pull 75kN Drilling Rig Machine,400mm Drilling Rig Machine |
||
Description:
1. The leading hydraulic rotary drilling rig, can change transport state into working state rapidly;
2. Cooperation with Tianjin University CNC Hydraulic Institute of Technology,
which can realize the machines construction efficiently and real-time monitor;
3. With CE certification, designed in strict accordance with European Union safety standards EN791;
4. Weight optimization distribution with higher security and better stability, more safe construction;
5. Higher quality CAT Chassis ensures the great performance of the whole machine;
6. Mature overall transport design can improve transport efficiency, saving cost.
| Rotary Drilling Rig Model | KR50A | ||
| Excavator Size | 14t-16t | 20t+ | 20t+ |
| Max. torque | 50 kN.m | 50 kN.m | 50 kN.m |
| Max. drilling diameter | 1200 mm | 1200 mm | 1200 mm |
| Max. drilling depth | 16 m | 20 m | 24 m |
| Main winch pull force | 70 kN | 75 kN | 75 kN |
| Main cylinder trip | 1100 mm | 1100 mm | 1100 mm |
| Auxiliary winch pull force | 65 kN | 65 kN | 65 kN |
| Main winch speed | 48 m/min | 48 m/min | 48 m/min |
| Mast inclination(Lateral) | ±6° | ±6° | ±6° |
| Mast inclination(Forward) | -30°~ ﹢90° | -30°~﹢90° | -30°~﹢90° |
| Working speed | 7-40rpm | 7-40rpm | 7-40rpm |
| Min. radius of gyration | 2800mm | 2950mm | 5360mm |
| Max. pilot pressure | 31.5Mpa | 31.5Mpa | 31.5Mpa |
| Operating height | 8868mm | 9926mm | 11421mm |
| Operating width | 2600mm | 2800mm | 3300mm |
| Transport height | 2731mm | 3150mm | 3311mm |
| Transport width | 2600mm | 2800mm | 3300mm |
| Transport length | 10390mm | 11492mm | 12825mm |
| Transport weight | 6.1t | 6.5t | 7t |
| Remark | Restructuring big arm | Restructuring big arm | Restructuring big arm |

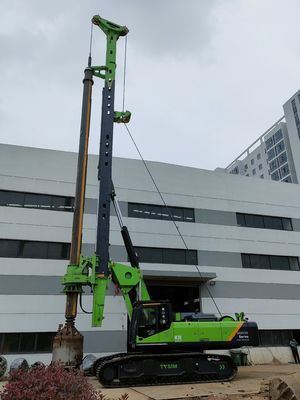

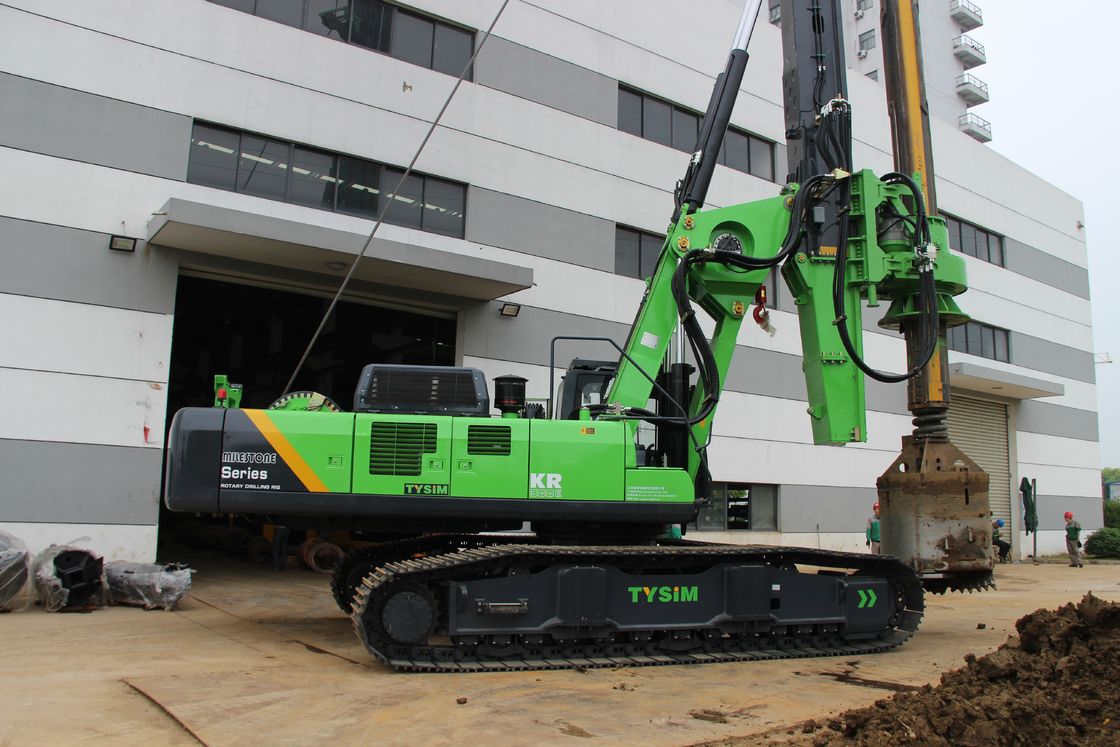

construction photos
Competitive Advantage:
1. Undercarriage-----Reliable & Mature Excavator Supplier for Choice
Type: New & Used
Brand: CAT, JCM, SINOMACH, SANY, XCMG and other
2. Hydraulic Parts-----Famous Brands
Gearbox Reducer: Imported REXROTH
Main Pump & Valve: Imported KAWASAKI (Japan)
Hose: Imported
3. Structure Parts-----Professional Structure Parts Supplier in China
Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
