Payment & Shipping Terms:
|Torque:||125 KN.m||Max. Drilling Diameter:||1300 Mm/1500mm|
|Max. Drilling Depth:||43 M||Speed Of Rotation:||8~30 Rpm|
|Max. Crowd Pressure:||100 KN||Max. Crowd Pull:||150 KN|
|Main Winch Line Pull:||110 KN||Auxiliary Winch Line Pull:||60 KN|
Hydraulic Drilling Rig,
rotary drilling rig,
43m Drilling Depth Hydraulic Piling Rig

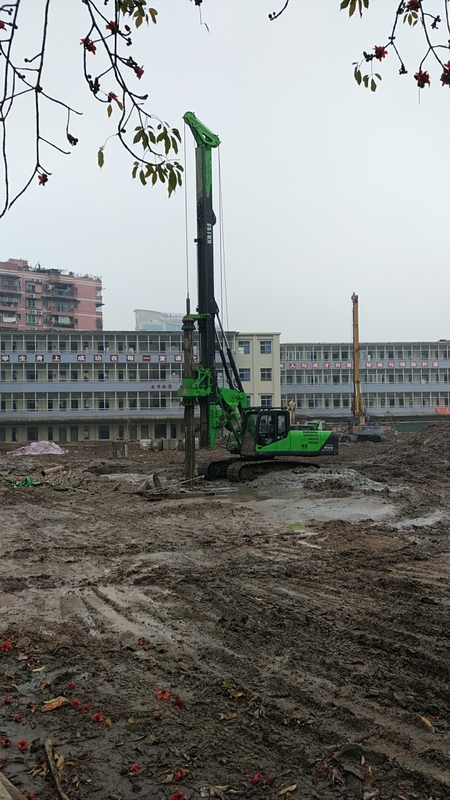

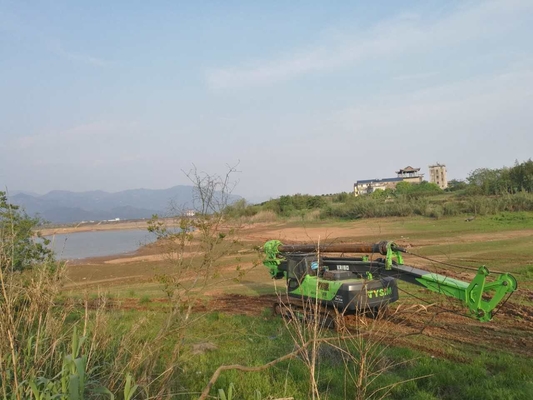

110KN Main Winch Pull Force KR125A Rotary Piling Rig for 37m Interlocking Kelly Bar Bored Piles Rig
|KR125A rotary drilling rig|
|Max. diameter||1300 mm/1500mm|
|Max. drilling depth||37 m(standard)/43 m(optional)|
|Speed of rotation||8~30 rpm|
|Max. crowd pressure||100 kN|
|Max. crowd pull||150 kN|
|Main winch line pull||110 kN|
|Main winch line speed||78 m/min|
|Auxiliary winch line pull||60 kN|
|Auxiliary winch line speed||60 m/min|
|Stroke(crowd system)||3200 mm|
|Max. operating pressure||34.3 MPa|
|Pilot pressure||3.9 MPa|
|Travel speed||2.8 km/h|
|Operating height||15350 mm|
|Operating width||2990 mm|
|Transport height||3500 mm|
|Transport width||2990 mm|
|Transport length||13970 mm|
|Overall weight||35 t|
1. Undercarriage-----Reliable & Mature Excavator Supplier for Choice
Brand: JCM, SINOMACH, SANY, XCMG and other
2. Hydraulic Parts-----World Famous Brands
Gearbox Reducer: Imported REXROTH
Main Pump & Valve: Imported KAWASAKI (Japan)
3. Structure Parts-----Professional Structure Parts Supplier for XCMG
TYSIM machinery focuses on the research,development and manufacture of the kind of the pile working enginerring machiney,it’s the unique company that focuses on developing small and medium-sized rotary drilling rig applying for civil enginerring,now have obtained more than 40 patents of pile working enginerring machiney.The original KP size Pile Breaker(also named break pile machine) of company in China,realize the efficiently pile cutting on a large scale,change the history that field of pile cutting inland rely on the workers and no professional equipments.This production obtained 11 core patents,among them 1 invention patent,they have been exported to Amercian,Brazil,Australia,Vietman,Indonesia and many other countries.
KR size small and medium-sized rotary drilling rig in many fields of metro,viaduct,houses win the praise of all the customers for the construction result,it will be the low cost and high efficient pile working equipments in operation field of our country’s new urbanizational construction. With the goal “be the reliable pile working proficient,fabricate the trade leading outstanding productions”,we recruit excellent talents constantly,create cause terrace for the win-win situation between staffs and company.We stick to the core concept“concentration,creative,value”concentrate on research and development in the pile basical construction field,rely on the working style of“pay attentions to details,keep improving,against the tardiness, finish daily duty”make great efforts to realize the vision of “become the pacemaker of small and medium-sized pile working machinery”.
Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
