Hydraulic Rotary Drilling Rig Winch Pull 75kN Diameter 400mm

Hydraulic Rotary Drilling Rig Winch Pull 75kN Diameter 400mm
Hydraulic Rotary Drilling Rig Winch Pull 75kN Diameter 400mm

Large Image :  Hydraulic Rotary Drilling Rig Winch Pull 75kN Diameter 400mm

Product Details:
Place of Origin: Jiangsu, China
Brand Name: TYSIM
Certification: CE,ISO9001
Model Number: KR50A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Overall transport; Packaged in one 40HQ or in one flat rack.
Delivery Time: 30 working days after recieving the down payment
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5 set per month
Detailed Product Description
Max. Cylinder Stroke: 1100 Mm Max. Drilling Depth: 24 M
Main Winch Pull Force: 75 KN Main Winch Line Speed: 48 M/min
Max. Drilling Diameter: 1200 Mm Max. Torque: 50 KN.m
Max. Operating Height: 7181 Mm Speed Of Rotation: 7~40 Rpm
Max. Operating Width: 2300 Mm Max. Transport Weight: 7 T
Excavator Size: 14 T-24 T
High Light:

Hydraulic Rotary Drilling Rig

,

75kN Rotary Drilling Rig

,

Diameter 400mm Rotary Drilling Rig

Rotary Bored Hole Pile Equipment , Hydraulic Piling Rig Max Pile Diameter 1200mm


Rotary Drilling Rig Model KR50A
Excavator Size 14t-16t 20t+ 20t+
Max. torque 50 kN.m 50 kN.m 50 kN.m
Max. drilling diameter 1200 mm 1200 mm 1200 mm
Max. drilling depth 16 m 20 m 24 m
Main winch pull force 70 kN 75 kN 75 kN
Main cylinder trip 1100 mm 1100 mm 1100 mm
Auxiliary winch pull force 65 kN 65 kN 65 kN
Main winch speed 48 m/min 48 m/min 48 m/min
Mast inclination(Lateral) ±6° ±6° ±6°
Mast inclination(Forward) -30°~ ﹢90° -30°~﹢90° -30°~﹢90°
Working speed 7-40rpm 7-40rpm 7-40rpm
Min. radius of gyration 2800mm 2950mm 5360mm
Max. pilot pressure 31.5Mpa 31.5Mpa 31.5Mpa
Operating height 8868mm 9926mm 11421mm
Operating width 2600mm 2800mm 3300mm
Transport height 2731mm 3150mm 3311mm
Transport width 2600mm 2800mm 3300mm
Transport length 10390mm 11492mm 12825mm
Transport weight 6.1t 6.5t 7t
Remark Restructuring big arm Restructuring big arm Restructuring big arm



Description:
1.The leading hydraulic rotary drilling rig, can change transport state into working state rapidly;
2. Cooperation with Tianjin University CNC Hydraulic Institute of Technology,

which can realize the machines construction efficiently and real-time monitor;
3. With CE certification, designed in strict accordance with European Union safety standards EN791;

4. Weight optimization distribution with higher security and better stability, more safe construction;
5. Higher quality CAT Chassis ensures the great performance of the whole machine;

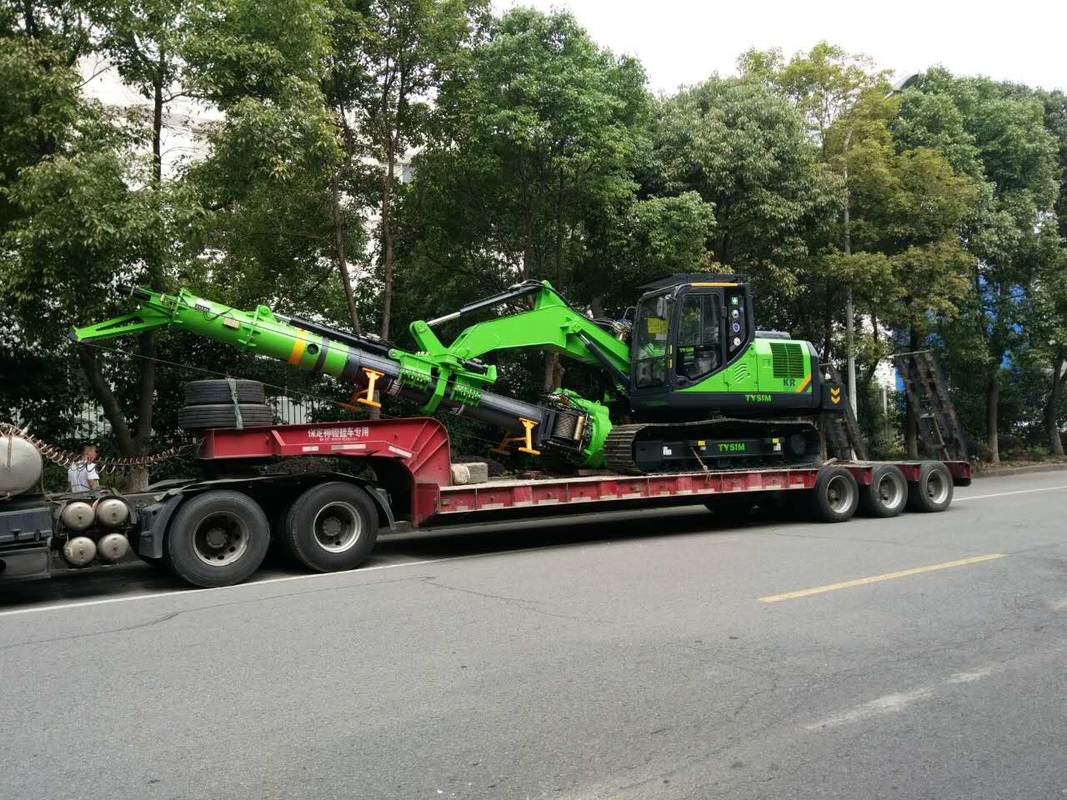

6. Mature overall transport design can improve transport efficiency, saving cost.

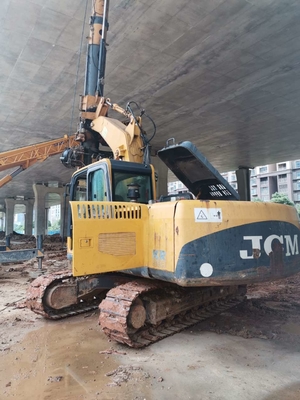

construction photos

Hydraulic Rotary Drilling Rig Winch Pull 75kN Diameter 400mm 0Hydraulic Rotary Drilling Rig Winch Pull 75kN Diameter 400mm 1


Competitive Advantage:
1. Undercarriage-----Reliable & Mature Excavator Supplier for Choice
Type: New & Used
Brand: CAT, JCM, SINOMACH, SANY, XCMG and other
2. Hydraulic Parts-----Famous Brands
Gearbox Reducer: Imported REXROTH
Main Pump & Valve: Imported KAWASAKI (Japan)
Hose: Imported
3. Structure Parts-----Professional Structure Parts Supplier in China



Hydraulic Rotary Drilling Rig Winch Pull 75kN Diameter 400mm 2

Our Services

Why Choose Us?

1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.

FAQ

Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
