37m Depth Interlocking Kelly Bar 30rpm Dia 1300mm 78m/Min

37m Depth Interlocking Kelly Bar 30rpm Dia 1300mm 78m/Min
37m Depth Interlocking Kelly Bar 30rpm Dia 1300mm 78m/Min
37m Depth Interlocking Kelly Bar 30rpm Dia 1300mm 78m/Min 37m Depth Interlocking Kelly Bar 30rpm Dia 1300mm 78m/Min 37m Depth Interlocking Kelly Bar 30rpm Dia 1300mm 78m/Min 37m Depth Interlocking Kelly Bar 30rpm Dia 1300mm 78m/Min

Large Image :  37m Depth Interlocking Kelly Bar 30rpm Dia 1300mm 78m/Min

Product Details:
Place of Origin: Jiangsu, China
Brand Name: TYSIM
Certification: CE,ISO9001
Model Number: KR125A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Method One: Nude packing and overall transport by sea with roll-on-roll-off ship.
Delivery Time: 30 working days after receiving the advance payment
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5 set per month

37m Depth Interlocking Kelly Bar 30rpm Dia 1300mm 78m/Min

Description
Max. Crowd Pressure: 100 KN Stroke(crowd System): 3200 Mm
Max. Drilling Diameter: 1300mm Max. Torque: 125kN.m
Speed Of Rotation: 8~30 Rpm Max. Drilling Depth: 37m/43m
Main Winch Line Speed: 78 M/min Operating Height: 14980 Mm
Operating Width: 3000 Mm Overall Weight: 35 T
High Light:

37m Depth Interlocking Kelly Bar

,

Interlocking Kelly Bar 30rpm

,

Dia 1300mm Interlocking Kelly Bar

43m Kr125a Max Depth Bored Pile Equipment Kelly Bar Max Drilling Diameter 1300mm



Technical Specification



1. Undercarriage-----Reliable & Mature Excavator Supplier for Choice

Type: New & Used

Brand: CAT, JCM, SINOMACH, SANY, XCMG and other



2. Hydraulic Parts-----World Famous Brands

Gearbox Reducer: Imported REXROTH

Main Pump & Valve: Imported KAWASAKI (Japan)

Hose: Imported



3. Structure Parts-----Professional Structure Parts Supplier for XCMG

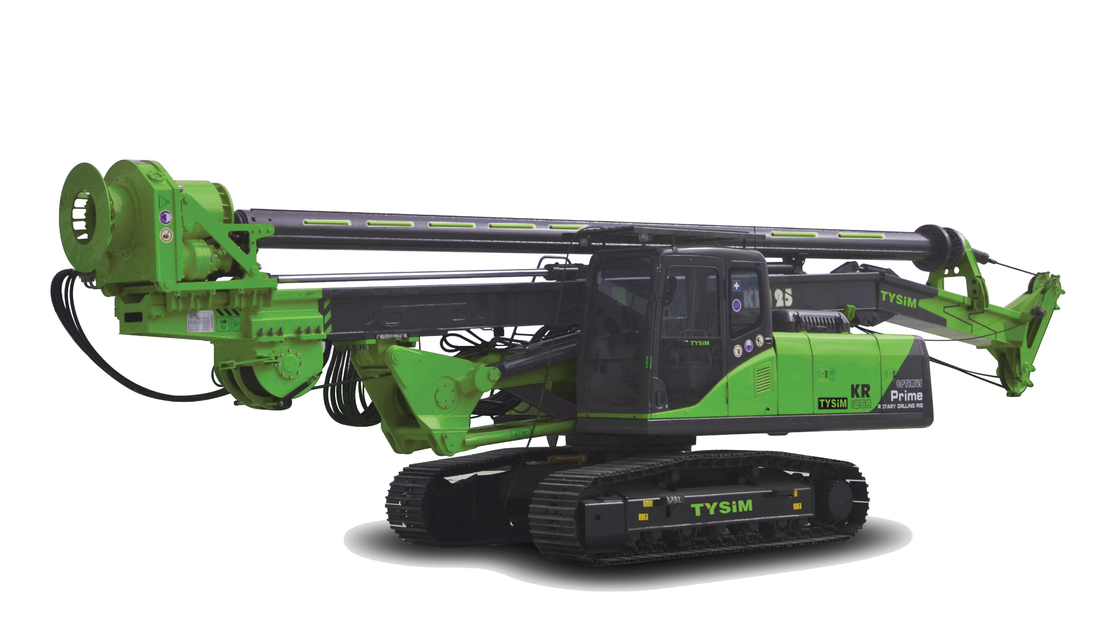

KR125A rotary drilling rig
Torque 125 kN.m
Max. diameter 1300 mm
Max. drilling depth 37 m(standard)/43 m(optional)
Speed of rotation 8~30 rpm
Max. crowd pressure 100 kN
Max. crowd pull 150 kN
Main winch line pull 110 kN
Main winch line speed 78 m/min
Auxiliary winch line pull 60 kN
Auxiliary winch line speed 60 m/min
Stroke(crowd system) 3200 mm
Mast inclination(lateral) ±3°
Mast inclination(forward)
Max. operating pressure 34.3 MPa
Pilot pressure 3.9 MPa
Travel speed 2.8 km/h
Traction force 204kN
Operating height 15350 mm
Operating width 2990 mm
Transport height 3500 mm
Transport width 2990 mm
Transport length 13970 mm
Overall weight 35 t
Engine
Model Cummins B5.9-C
Cylinder number*diameter*Stroke(mm) 6*102*120
Displacement 5.9
Rated Power(kW/rpm) 112/1950
Max. Torque(N.m/rmp) 614/1500
Kelly Bar
Type Interlocking Friction
Section*length 4*10000(standard) 5*9500(optional)
Depth 37m 45m









Company introduction



TYSIM machinery focuses on the research,development and manufacture of the kind of the pile working enginerring machiney,it’s the unique company that focuses on developing small and medium-sized rotary drilling rig applying for civil enginerring,now have obtained more than 40 patents of pile working enginerring machiney.The original KP size Pile Breaker(also named break pile machine) of company in China,realize the efficiently pile cutting on a large scale,change the history that field of pile cutting inland rely on the workers and no professional equipments.This production obtained 11 core patents,among them 1 invention patent,they have been exported to Amercian,Brazil,Australia,Vietman,Indonesia and many other countries.

KR size small and medium-sized rotary drilling rig in many fields of metro,viaduct,houses win the praise of all the customers for the construction result,it will be the low cost and high efficient pile working equipments in operation field of our country’s new urbanizational construction. With the goal “be the reliable pile working proficient,fabricate the trade leading outstanding productions”,we recruit excellent talents constantly,create cause terrace for the win-win situation between staffs and company.We stick to the core concept“concentration,creative,value”concentrate on research and development in the pile basical construction field,rely on the working style of“pay attentions to details,keep improving,against the tardiness, finish daily duty”make great efforts to realize the vision of “become the pacemaker of small and medium-sized pile working machinery”.

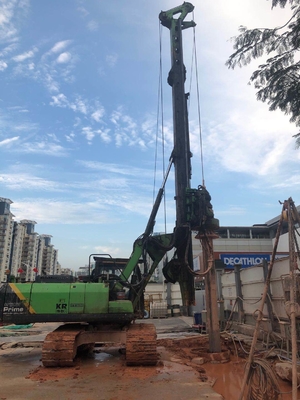

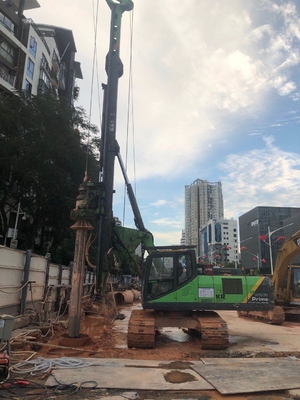

construction photos

37m Depth Interlocking Kelly Bar 30rpm Dia 1300mm 78m/Min 037m Depth Interlocking Kelly Bar 30rpm Dia 1300mm 78m/Min 1

packing&shipping

37m Depth Interlocking Kelly Bar 30rpm Dia 1300mm 78m/Min 2



customer visit

37m Depth Interlocking Kelly Bar 30rpm Dia 1300mm 78m/Min 3



Our Services

Why Choose Us?

1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.

FAQ

Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
