70KN Smart Piling Rig Machine 30m/Min With 900mm Cylinder Trip

70KN Smart Piling Rig Machine 30m/Min With 900mm Cylinder Trip
70KN Smart Piling Rig Machine 30m/Min With 900mm Cylinder Trip 70KN Smart Piling Rig Machine 30m/Min With 900mm Cylinder Trip

Large Image :  70KN Smart Piling Rig Machine 30m/Min With 900mm Cylinder Trip

Product Details:
Place of Origin: Jiangsu, China
Brand Name: TYSIM
Certification: CE,ISO9001
Model Number: KR40
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Method One: Nude packing and overall transport by sea with roll-on-roll-off ship.
Delivery Time: 30 working days after receiving the advance payment
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5 set per month

70KN Smart Piling Rig Machine 30m/Min With 900mm Cylinder Trip

Description
Max. Drilling Depth: 10/12m Max. Torque: 32-42 KN.m
Max. Cylinder Thrust: 70 KN Main Winch Line Speed: 30 M/min
Speed Of Rotation: 7~40 Rpm Max. Cylinder Trip: 600/900 Mm
Max. Drilling Diameter: 1200 Mm Operating Height: 7180mm
Operating Width: 2300 Mm Transport Weight: 5.4 T
High Light:

Smart Piling Rig Machine 30m/Min

,

70KN Smart Piling Rig Machine

,

40rpm Smart Piling Rig Machine



Rotary Foundation Piling Equipment For Max 12m Depth , 1200mm Diameter



Product introduction

1. Quick Transition;

2. High Efficiency;

3. High Security;

4. Monitor Timely;

5. Professional Tehnology;

6. High Universality.









Technical Specification



Rotary Drilling Rig Model KR40A
Excavator Size 8t-13t
Max. torque 32-42 kN.m
Max. drilling diameter 1200 mm
Max. drilling depth 10 m
Main winch pull force 70KN
Max. cylinder trip 600/900 mm
Auxiliary winch pull force 45 kN
Main winch speed 30 m/min
Mast inclination(Lateral) ±6°
Mast inclination(Forward) -30°~﹢90°
Working speed 7-40rpm
Min. radius of gyration 2750mm
Max. pilot pressure 31.5Mpa
Operating height 7181mm
Operating width 2300mm
Transport height 3014mm
Transport width 2300mm
Transport length 7157mm
Transport weight 5.4t
Remark Restructuring big arm







Product Details



1. Undercarriage-----Reliable & Mature Excavator Supplier for Choice

Type: New & Used

Brand: CAT, JCM, SINOMACH, SANY, XCMG and other



2. Hydraulic Parts-----World Famous Brands

Gearbox Reducer: Imported REXROTH

Main Pump & Valve: Imported KAWASAKI (Japan)

Hose: Imported



3. Structure Parts-----Professional Structure Parts Supplier for XCMG

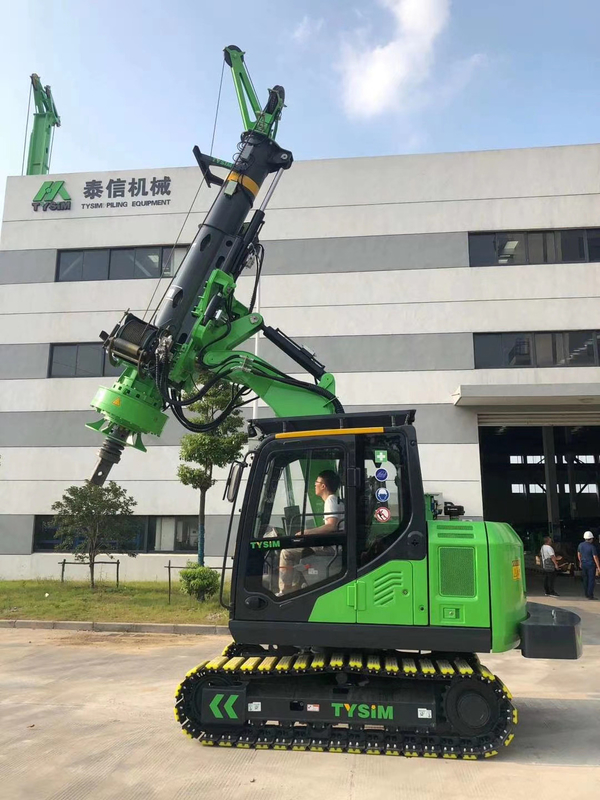

construction photos



70KN Smart Piling Rig Machine 30m/Min With 900mm Cylinder Trip 0



Description:
1.The leading hydraulic rotary drilling rig, can change transport state into working state rapidly;
2. Cooperation with Tianjin University CNC Hydraulic Institute of Technology, which can realize the machines construction efficiently and real-time monitor;
3. With CE certification, designed in strict accordance with European Union safety standards EN791;
4. Weight optimization distribution with higher security and better stability, more safe construction;
5. Higher quality CAT Chassis ensures the great performance of the whole machine;
6. Mature overall transport design can improve transport efficiency, saving cost.

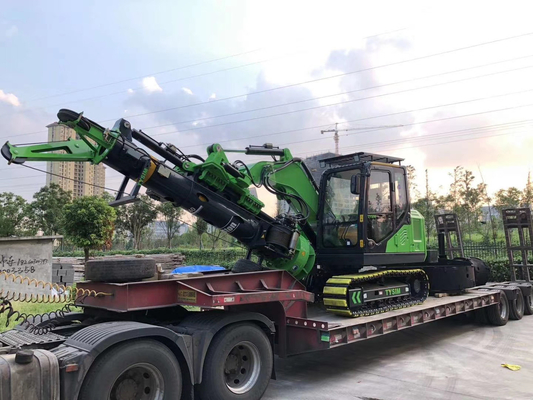

packing&shipping

70KN Smart Piling Rig Machine 30m/Min With 900mm Cylinder Trip 1



70KN Smart Piling Rig Machine 30m/Min With 900mm Cylinder Trip 2





Our Services

Why Choose Us?

1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.

FAQ

Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
