|Main Winch Pull Force:||4.5 T||Max. Drilling Depth:||10 M/12m|
|Color:||Yellow And Black Or Green||Max. Cylinder Trip:||600/900 Mm|
|Speed Of Rotation:||7~40 Rpm||Max. Drilling Diameter:||1200 Mm|
|Main Winch Line Speed:||30 M/min||Operating Height:||7181 Mm|
|Transport Weight:||5.4 T||Excavator Size:||8 T-13 T|
|Torque:||32/42 KN.m||Operating Width:||2300 Mm|

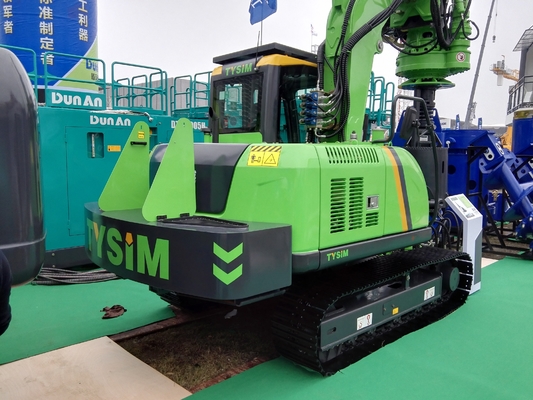

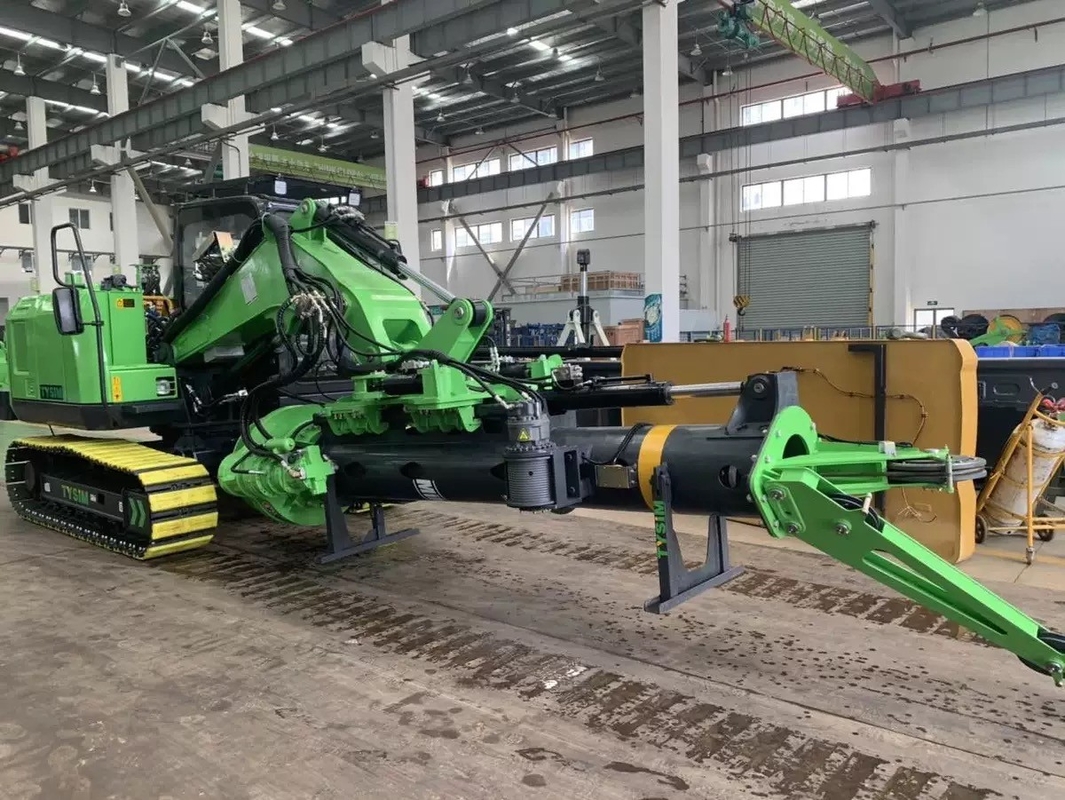

Hydraulic Rotary Piling Rig Machine,
Rotary Piling Rig Machine 30m/Min,
Rotary Piling Rig Machine 70KN
|Rotary Drilling Rig Model||KR50-10|
|Max. torque||32-42 kN.m|
|Max. drilling diameter||1200 mm|
|Max. drilling depth||10 m|
|Main winch pull force||70KN|
|Max. cylinder trip||600/900 mm|
|Auxiliary winch pull force||45 kN|
|Main winch speed||30 m/min|
|Min. radius of gyration||2750mm|
|Max. pilot pressure||31.5Mpa|
|Remark||Restructuring big arm|
1. Undercarriage-----Reliable & Mature Excavator Supplier for Choice
Type: New & Used
Brand: CAT, JCM, SINOMACH, SANY, XCMG and other
2. Hydraulic Parts-----World Famous Brands
Gearbox Reducer: Imported REXROTH
Main Pump & Valve: Imported KAWASAKI (Japan)
3. Structure Parts-----Professional Structure Parts Supplier for XCMG
1. Quick Transition;
2. High Efficiency;
3. High Security;
4. Monitor Timely;
5. Professional Tehnology;
6. High Universality.
1.The leading hydraulic rotary drilling rig, can change transport state into working state rapidly;
2. Cooperation with Tianjin University CNC Hydraulic Institute of Technology,
which can realize the machines construction efficiently and real-time monitor;
3. With CE certification, designed in strict accordance with European Union safety standards EN791;
4. Weight optimization distribution with higher security and better stability, more safe construction;
5. Higher quality CAT Chassis ensures the great performance of the whole machine;
6. Mature overall transport design can improve transport efficiency, saving cost.
Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
