Product Details:
|
| Operating Height: | Operating Height | Main Winch Line Speed: | 30 M/min |
|---|---|---|---|
| Max. Drilling Diameter: | 1000 Mm | Speed Of Rotation: | 7~40 Rpm |
| Max. Cylinder Trip: | 600/900 Mm | Color: | Yellow And Black Or Green |
| Main Winch Pull Force: | 4.5 T | Operating Width: | 2300 Mm |
| Max. Drilling Depth: | 10 M/12m | Transport Weight: | 5.4 T |
| Excavator Size: | 8 T-13 T | Torque: | 32/42 KN.m |
| High Light: | 70rpm hydraulic piling rig machine,tysim hydraulic piling rig machine,diameter 1000mm hydraulic piling rig machine |
||
Product introduction
1. Quick Transition;
2. High Efficiency;
3. High Security;
4. Monitor Timely;
5. Professional Tehnology;
6. High Universality.
Technical Specification
| Rotary Drilling Rig Model | KR40A |
| Excavator Size | 8t-13t |
| Max. torque | 32-42 kN.m |
| Max. drilling diameter | 1200 mm |
| Max. drilling depth | 10 m |
| Main winch pull force | 70KN |
| Max. cylinder trip | 600/900 mm |
| Auxiliary winch pull force | 45 kN |
| Main winch speed | 30 m/min |
| Mast inclination(Lateral) | ±6° |
| Mast inclination(Forward) | -30°~﹢90° |
| Working speed | 7-40rpm |
| Min. radius of gyration | 2750mm |
| Max. pilot pressure | 31.5Mpa |
| Operating height | 7181mm |
| Operating width | 2300mm |
| Transport height | 3014mm |
| Transport width | 2300mm |
| Transport length | 7157mm |
| Transport weight | 5.4t |
| Remark | Restructuring big arm |
Product Details
1. Undercarriage-----Reliable & Mature Excavator Supplier for Choice
Type: New & Used
Brand: CAT, JCM, SINOMACH, SANY, XCMG and other
2. Hydraulic Parts-----World Famous Brands
Gearbox Reducer: Imported REXROTH
Main Pump & Valve: Imported KAWASAKI (Japan)
Hose: Imported
Description:
1.The leading hydraulic rotary drilling rig, can change transport state into working state rapidly;
2. Cooperation with Tianjin University CNC Hydraulic Institute of Technology, which can realize the machines construction efficiently and real-time monitor;
3. With CE certification, designed in strict accordance with European Union safety standards EN791;
4. Weight optimization distribution with higher security and better stability, more safe construction;
5. Higher quality CAT Chassis ensures the great performance of the whole machine;
6. Mature overall transport design can improve transport efficiency, saving cost.

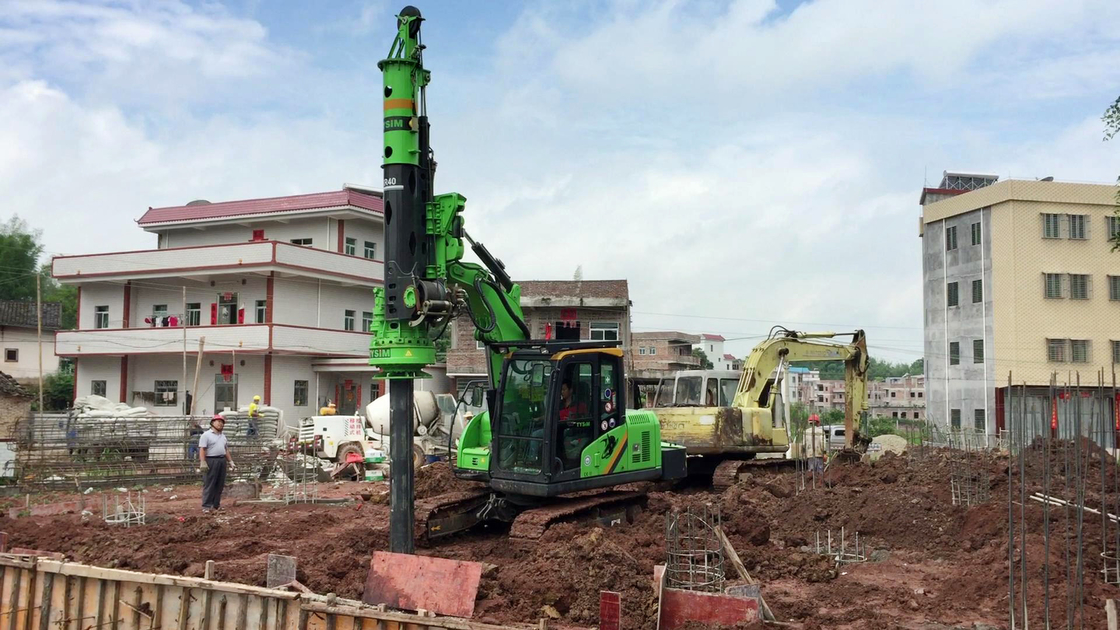

construction photos
Our Services
Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
