Product Details:
|
| Main Winch Pull Force: | 4.5 T | Excavator Size: | 8 T-13 T |
|---|---|---|---|
| Max. Drilling Depth: | 10 M/12m | Speed Of Rotation: | 7~40 Rpm |
| Max. Cylinder Trip: | 600/900 Mm | Main Winch Line Speed: | 30m/min |
| Operating Height: | Operating Height | Max. Drilling Diameter: | 1000mm |
| Operating Width: | 2300 Mm | Transport Weight: | 5.4 T |
| Torque: | 32/42 KN.m | ||
| High Light: | 12m hydraulic rotary piling rig,tysim hydraulic rotary piling rig,hydraulic piling rig tysim |
||
Specialty
Modify the excavator to be small rotary drilling rig machine
Change the profit model of rotary drilling machine
Excavators and rotary drilling rigs can be switched
Narrow space construction
Rely on a wall construction
convenient transportation
Technical Specification
| Rotary Drilling Rig Model | KR40A |
| Excavator Size | 8t-13t |
| Max. torque | 32-42 kN.m |
| Max. drilling diameter | 1200 mm |
| Max. drilling depth | 10 m |
| Main winch pull force | 70KN |
| Max. cylinder trip | 600/900 mm |
| Auxiliary winch pull force | 45 kN |
| Main winch speed | 30 m/min |
| Mast inclination(Lateral) | ±6° |
| Mast inclination(Forward) | -30°~﹢90° |
| Working speed | 7-40rpm |
| Min. radius of gyration | 2750mm |
| Max. pilot pressure | 31.5Mpa |
| Operating height | 7181mm |
| Operating width | 2300mm |
| Transport height | 3014mm |
| Transport width | 2300mm |
| Transport length | 7157mm |
| Transport weight | 5.4t |
| Remark | Restructuring big arm |

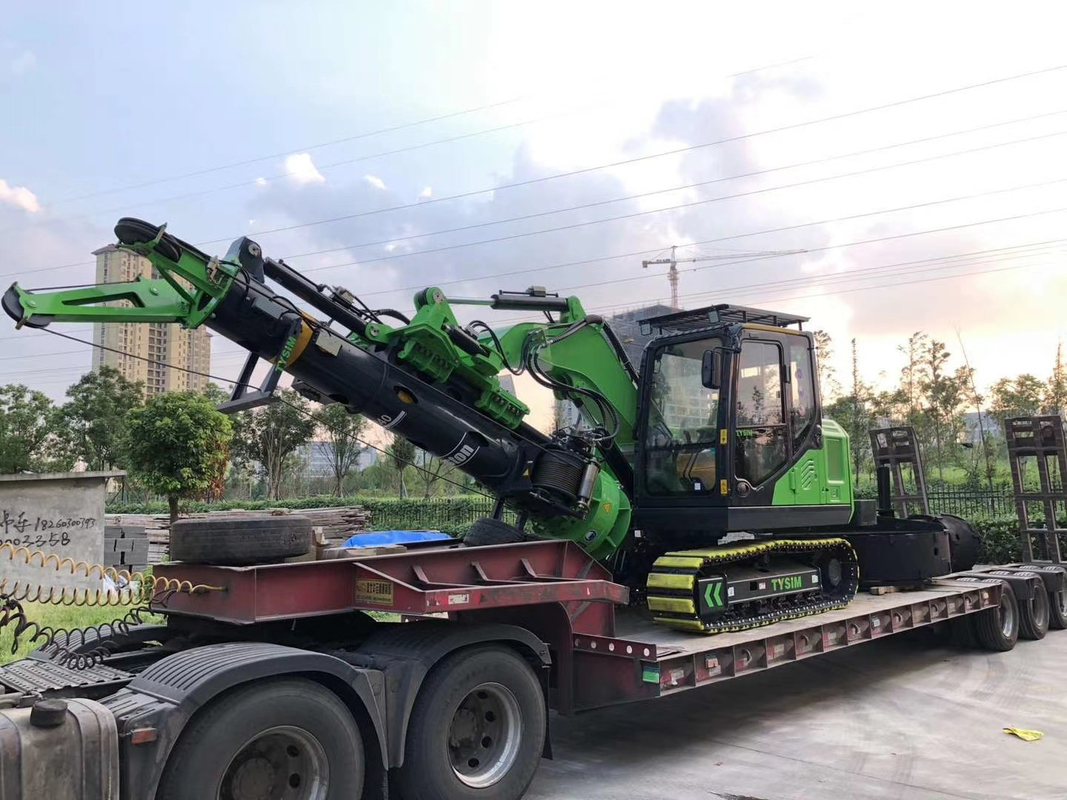

construction photos
Product introduction
TYSIM machinery focuses on the research,development and manufacture of the kind of the pile working enginerring machiney,it’s the unique company that focuses on developing small and medium-sized rotary drilling rig applying for civil enginerring,now have obtained more than 40 patents of pile working enginerring machiney.The original KP size Pile Breaker(also named break pile machine) of company in China,realize the efficiently pile cutting on a large scale,change the history that field of pile cutting inland rely on the workers and no professional equipments.This production obtained 11 core patents,among them 1 invention patent,they have been exported to Amercian,Brazil,Australia,Vietman,Indonesia and many other countries.
KR size small and medium-sized rotary drilling rig in many fields of metro,viaduct,houses win the praise of all the customers for the construction result,it will be the low cost and high efficient pile working equipments in operation field of our country’s new urbanizational construction. With the goal “be the reliable pile working proficient,fabricate the trade leading outstanding productions”,we recruit excellent talents constantly,create cause terrace for the win-win situation between staffs and company.We stick to the core concept“concentration,creative,value”concentrate on research and development in the pile basical construction field,rely on the working style of“pay attentions to details,keep improving,against the tardiness, finish daily duty”make great efforts to realize the vision of “become the pacemaker of small and medium-sized pile working machinery”.
FAQ
Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is half a year or 1000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
