Tysim Kr40a Hydraulic Piling Rig Torque 45kn.M Main Winch Pull Force 4.5t

Tysim Kr40a Hydraulic Piling Rig Torque 45kn.M Main Winch Pull Force 4.5t
Tysim Kr40a Hydraulic Piling Rig Torque 45kn.M Main Winch Pull Force 4.5t

Large Image :  Tysim Kr40a Hydraulic Piling Rig Torque 45kn.M Main Winch Pull Force 4.5t

Product Details:
Place of Origin: Jiangsu, China
Brand Name: TYSIM
Certification: CE,ISO9001
Model Number: KR40A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Overall transport; Packaged in one flat rack.
Delivery Time: 30-45 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5 set per month
Detailed Product Description
Speed Of Rotation: 7~40 Rpm Max. Drilling Diameter: 1000 Mm
Max. Cylinder Trip: 600/900 Mm Color: Yellow And Black Or Green
Main Winch Line Speed: 30 M/min Max. Drilling Depth: 10 M/12m
Main Winch Pull Force: 4.5 T Operating Height: Operating Height
Operating Width: 2300 Mm Transport Weight: 5.4 T
Excavator Size: 8 T-13 T Torque: 32/42 KN.m
High Light:

45kn.m hydraulic piling rig

,

4.5t hydraulic piling rig

,

tysim pile drilling machine


Rotary Foundation Piling Equipment For Max 12m Depth , 1200mm Diameter

Product Description


Product introduction

1. Quick Transition;

2. High Efficiency;

3. High Security;

4. Monitor Timely;

5. Professional Tehnology;

6. High Universality.



Technical Specification

Rotary Drilling Rig Model KR40A
Excavator Size 8t-13t
Max. torque 32-42 kN.m
Max. drilling diameter 1200 mm
Max. drilling depth 10 m
Main winch pull force 70KN
Max. cylinder trip 600/900 mm
Auxiliary winch pull force 45 kN
Main winch speed 30 m/min
Mast inclination(Lateral) ±6°
Mast inclination(Forward) -30°~﹢90°
Working speed 7-40rpm
Min. radius of gyration 2750mm
Max. pilot pressure 31.5Mpa
Operating height 7181mm
Operating width 2300mm
Transport height 3014mm
Transport width 2300mm
Transport length 7157mm
Transport weight 5.4t
Remark Restructuring big arm







Product Details

1. Undercarriage-----Reliable & Mature Excavator Supplier for Choice

Type: New & Used

Brand: CAT, JCM, SINOMACH, SANY, XCMG and other



2. Hydraulic Parts-----World Famous Brands

Gearbox Reducer: Imported REXROTH

Main Pump & Valve: Imported KAWASAKI (Japan)

Hose: Imported



3. Structure Parts-----Professional Structure Parts Supplier for XCMG

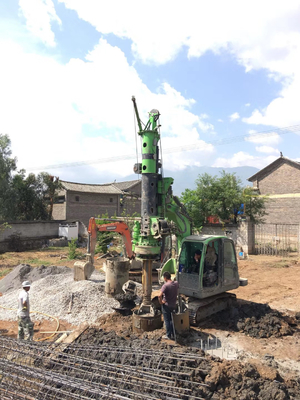

construction photos

Tysim Kr40a Hydraulic Piling Rig Torque 45kn.M Main Winch Pull Force 4.5t 0

Tysim Kr40a Hydraulic Piling Rig Torque 45kn.M Main Winch Pull Force 4.5t 1Tysim Kr40a Hydraulic Piling Rig Torque 45kn.M Main Winch Pull Force 4.5t 2

Product introduction

TYSIM machinery focuses on the research,development and manufacture of the kind of the pile working enginerring machiney,it’s the unique company that focuses on developing small and medium-sized rotary drilling rig applying for civil enginerring,now have obtained more than 40 patents of pile working enginerring machiney.The original KP size Pile Breaker(also named break pile machine) of company in China,realize the efficiently pile cutting on a large scale,change the history that field of pile cutting inland rely on the workers and no professional equipments.This production obtained 11 core patents,among them 1 invention patent,they have been exported to Amercian,Brazil,Australia,Vietman,Indonesia and many other countries.

KR size small and medium-sized rotary drilling rig in many fields of metro,viaduct,houses win the praise of all the customers for the construction result,it will be the low cost and high efficient pile working equipments in operation field of our country’s new urbanizational construction. With the goal “be the reliable pile working proficient,fabricate the trade leading outstanding productions”,we recruit excellent talents constantly,create cause terrace for the win-win situation between staffs and company.We stick to the core concept“concentration,creative,value”concentrate on research and development in the pile basical construction field,rely on the working style of“pay attentions to details,keep improving,against the tardiness, finish daily duty”make great efforts to realize the vision of “become the pacemaker of small and medium-sized pile working machinery”.



packing&shipping

Tysim Kr40a Hydraulic Piling Rig Torque 45kn.M Main Winch Pull Force 4.5t 3



Our Services

Why Choose Us?

1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.

FAQ

Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
