Product Details:
|
| Stroke(crowd System): | 6000 Mm | Max. Drilling Diameter: | 2200MM-2500mm |
|---|---|---|---|
| Max. Drilling Depth: | 54m/80M | Speed Of Rotation: | 7-23 Rpm |
| Max. Torque: | 285kN.m | Max. Crowd Pressure: | 220 KN |
| Main Winch Line Speed: | 80 M/min | Operating Height: | 14660 Mm |
| Operating Width: | 2700 Mm | Overall Weight: | 80 T |
| High Light: | 80m depth pile driving rig,80m depth small piling machine,tysim pile driving rig |
||
High Efficiency Max Torque 285 kN.m 80 m Depth Pile Driving Rigs KR285c
KR size small and medium-sized rotary drilling rig in many fields of metro,viaduct,houses win the praise of all the customers for the construction result,it will be the low cost and high efficient pile working equipments in operation field of our country’s new urbanizational construction. With the goal “be the reliable pile working proficient,fabricate the trade leading outstanding productions”,we recruit excellent talents constantly,create cause terrace for the win-win situation between staffs and company.We stick to the core concept“concentration,creative,value”concentrate on research and development in the pile basical construction field,rely on the working style of“pay attentions to details,keep improving,against the tardiness, finish daily duty”make great efforts to realize the vision of “become the pacemaker of small and medium-sized pile working machinery”.
Technical Specification
| Technical specification of KR285C rotary drilling rig | |
| Torque | 285 kN.m |
| Max. diameter | 2200/2500 mm |
| Max. drilling depth | 80/54 m |
| Speed of rotation | 7~23 rpm |
| Max. crowd pressure | 260 kN |
| Max. crowd pull | 260 kN |
| Main winch line pull | 340 kN |
| Main winch line speed | 72 m/min |
| Auxiliary winch line pull | 90 kN |
| Auxiliary winch line speed | 70 m/min |
| Stroke(crowd system) | 6000 mm |
| Mast inclination(lateral) | ±5° |
| Mast inclination(forward) | 5° |
| Max. operating pressure | 34.3 MPa |
| Pilot pressure | 3.9MPa |
| Travel speed | 1.5 km/h |
| Traction force | 510 kN |
| Operating height | 22685 mm |
| Operating width | 4300 mm |

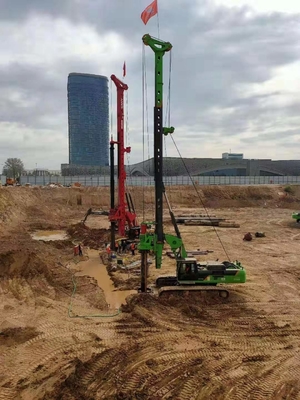

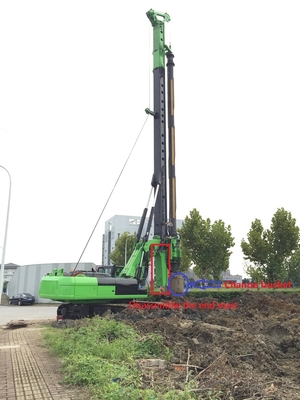

construction photos

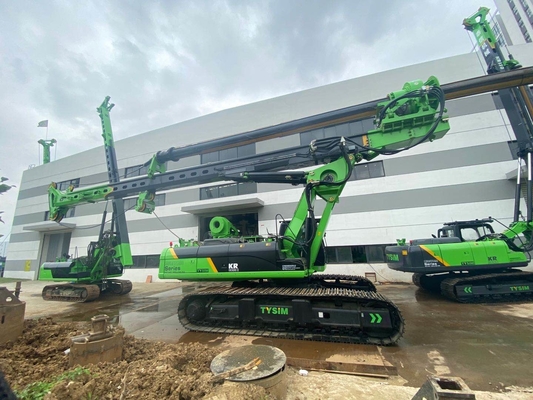

Details
packing show
Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
