KR125ES Rotary Piling Rig Drilling Depth 20m Diameter 1800mm

KR125ES Rotary Piling Rig Drilling Depth 20m Diameter 1800mm
KR125ES Rotary Piling Rig Drilling Depth 20m Diameter 1800mm

Large Image :  KR125ES Rotary Piling Rig Drilling Depth 20m Diameter 1800mm

Product Details:
Place of Origin: Jiangsu, China
Brand Name: TYSIM
Certification: CE/ISO900A
Model Number: KR125ES
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Nude packing and overall transport by sea with roll-on-roll-off ship; One Flat rack container.
Delivery Time: 45 working days after received your payment
Payment Terms: T/T or LC
Supply Ability: 30 sets per month
Detailed Product Description
Max Torque: 125 KN.m Max. Crowd Pressure: 100 KN
Max. Drilling Diameter: 1800 Mm Max. Crowd Pull: 110 KN
Max. Drilling Depth: 20 M Main Winch Line Pull: 110 KN
Overall Weight: 32 T Speed Of Rotation: 8~30rpm
Auxiliary Winch Line Pull: 60 KN Transport Height: 3425mm
Transport Width: 3000 Mm Transport Length: 9761 Mm
Customize: Yes
High Light:

rotary piling rig tysim


rotary piling rig drilling depth 20m


diameter 1800mm hydraulic rotary piling rig

TYSIM KR125ES Low head room drilling rig Depth 54m and Diameter 2500mm


Product Description


The TYSIM line of high production hydraulic drilling rigs feature heavy-duty cat carriers with impressive

torque and crowd capabilities designed for hard drilling conditions and large diameter applications.


Technical Specification
Technical specification of KR330C rotary drilling rig
Torque 125 kN.m
Max. diameter 1800 mm
Max. drilling depth 20 m
Speed of rotation 8~30 rpm
Max. crowd pressure 100 kN
Max. crowd pull 110 kN
Main winch line pull 110 kN
Main winch line speed  80 m/min
Auxiliary winch line pull 60 kN
Auxiliary winch line speed 60 m/min
Stroke(crowd system) 2000 mm
Mast inclination(lateral) ±3°
Mast inclination(forward)
Max. operating pressure 34.3MPa
Pilot pressure 3.9MPa
Travel speed 3km/h
Traction force 220kN
Operating height 8000 mm
Operating width 3000 mm
Transport height 3425.mm
Transport width 3000 mm
Transport length 9761 mm
Overall weight 32t
Model Cummins QSB7
Cylinder number*diameter*stroke(mm) 6×107×124
Displacement(L) 6.7
Output standard European III
Kelly bar
Type Interlocking
Section*length(mm) 5*5150(standard)
Depth(m) 20


Product Details


These drilling rigs have large engine and hydraulic capacities. This translates into the rigs being able

to use far more powerful winches for the Kelly bar, crowd, and pullback, as well as faster rpm at higher

torque when drilling with casing in overburden. The beefed up structure can also support the additional

stresses put on the rig with stronger winches.


Numerous design features result in less downtime and longer equipment life.

The rigs are based on reinforced CAT carriers so spare parts are easy to obtain.

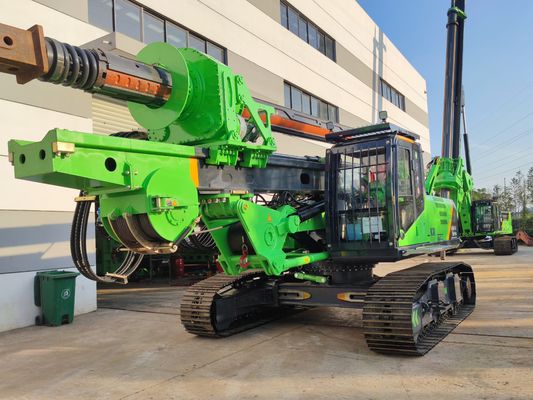

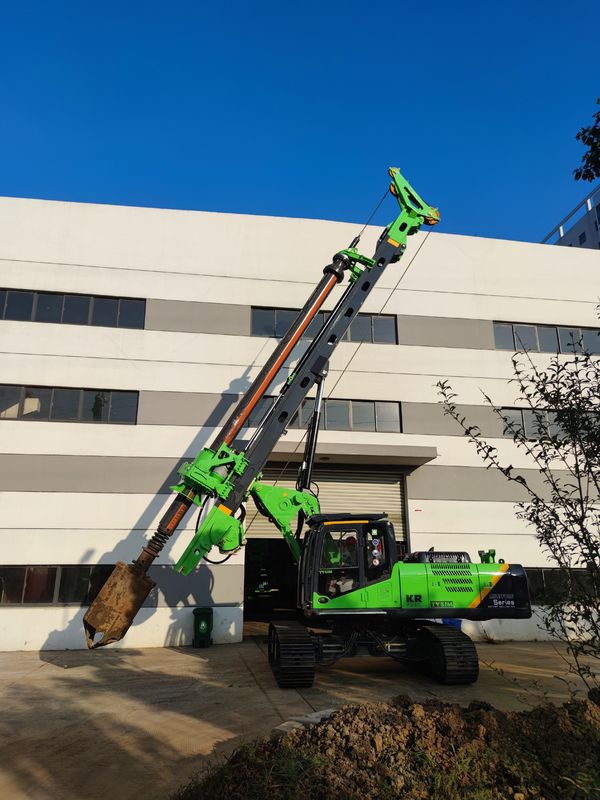

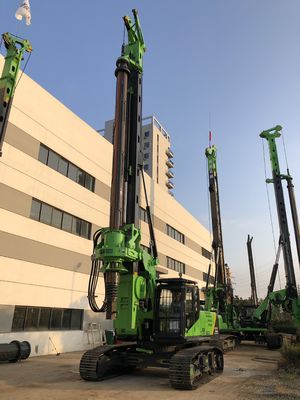

product photo

KR125ES Rotary Piling Rig Drilling Depth 20m Diameter 1800mm 0

1. Undercarriage-----Reliable & Mature Excavator Supplier for Choice

Type: New & Used

Brand: CAT, JCM, SINOMACH, SANY, XCMG and other


2. Hydraulic Parts-----World Famous Brands

Gearbox Reducer: Imported REXROTH

Main Pump & Valve: Imported KAWASAKI (Japan)

Hose: Imported


3. Structure Parts-----Professional Structure Parts Supplier for XCM



Product introduction

TYSIM machinery focuses on the research,development and manufacture of the kind of the pile working enginerring machiney,it’s the unique company that focuses on developing small and medium-sized rotary drilling rig applying for civil enginerring,now have obtained more than 40 patents of pile working enginerring machiney.The original KP size Pile Breaker(also named break pile machine) of company in China,realize the efficiently pile cutting on a large scale,change the history that field of pile cutting inland rely on the workers and no professional equipments.This production obtained 11 core patents,among them 1 invention patent,they have been exported to Amercian,Brazil,Australia,Vietman,Indonesia and many other countries.

KR size small and medium-sized rotary drilling rig in many fields of metro,viaduct,houses win the praise of all the customers for the construction result,it will be the low cost and high efficient pile working equipments in operation field of our country’s new urbanizational construction. With the goal “be the reliable pile working proficient,fabricate the trade leading outstanding productions”,we recruit excellent talents constantly,create cause terrace for the win-win situation between staffs and company.We stick to the core concept“concentration,creative,value”concentrate on research and development in the pile basical construction field,rely on the working style of“pay attentions to details,keep improving,against the tardiness, finish daily duty”make great efforts to realize the vision of “become the pacemaker of small and medium-sized pile working machinery”.

Packing show

KR125ES Rotary Piling Rig Drilling Depth 20m Diameter 1800mm 1

Our Services

Why Choose Us?

1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.


Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
