|Pile Diameter:||300~1050mm||Crowd Stroke:||135mm|
|Max. Crowd Pressure:||30MPa||Max. Single Cutting Height:||≤300mm|
|Quantity/8h:||40/8h||Single Module Weight:||100kg|
|Color:||Yellow Or Green||Max.rod Pressure:||280kN|
|Condition:||New||Max. Cylinder Required:||20L/min|
|Single Module Size(mm):||520*444*316||Customized:||Yes|
315mm concrete pile breaker,
30mpa concrete pile breaker,
tysim hydraulic pile breaking machine

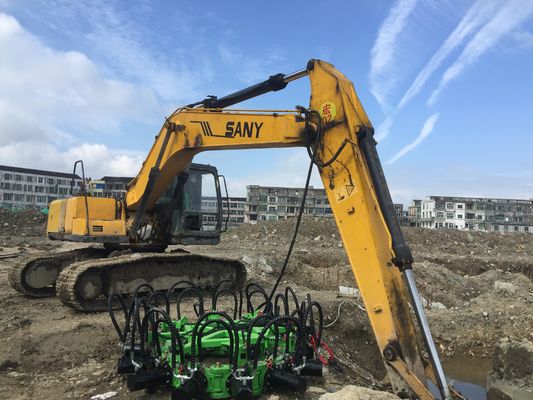

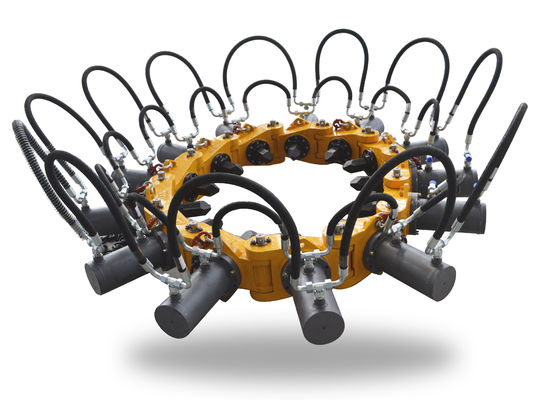

TYSIM Hydraulic Pile Breaker KP315A
1. Product Parameters
|Technical specification KP315A(13 modules combination)|
|Max. cylinder stroke||135mm|
|Max. crowd pressure||30MPa|
|Max. single cylinder flow||20L/min|
|Max. single cutting height||≤300mm|
|Single module weight||100kg|
|Single module size||645×444×316 mm|
|Operating size||Φ2098×Φ4840 mm|
|KP315A construction parameters|
|Module numbers||The diameter range||Platform Weight||Weight||Height of single crush pile|
|6||Φ300~Φ350 mm||≥12 t||1000 kg||≤300 mm|
|7||Φ350~Φ450 mm||≥12 t||1100 kg||≤300 mm|
|8||Φ450~Φ550 mm||≥16 t||1200 kg||≤300 mm|
|9||Φ550~Φ650 mm||≥16 t||1300 kg||≤300 mm|
|10||Φ650~Φ760 mm||≥20 t||1400 kg||≤300 mm|
|11||Φ760~Φ860 mm||≥20 t||1500 kg||≤300 mm|
|12||Φ860~Φ960 mm||≥20 t||1600 kg||≤300 mm|
|13||Φ960~Φ1050 mm||≥20 t||1700 kg||≤300 mm|
(1) Cylinder-----Chinese Largest Cylinder Factory Brand: SANY Cylinder
(2) Module-----Steel Casing, which is stronger than iron welding
(3) Drill Rod-----3-times Special Heat Treatment, which guarantees its strength & tenacity
(1) The leading hydraulic pile breaker/cutter, with five patented technologies, is the most efficient equipment to crushing the fundation piles and fills the China gap.
(2) Using advanced modular design, it can be used for crushing pile of different diameters by changing the module combination quantity.
(3) It can be installed on a larege variety of construction machinery, realizing the versatility and economy.
3.The operation steps of the pile

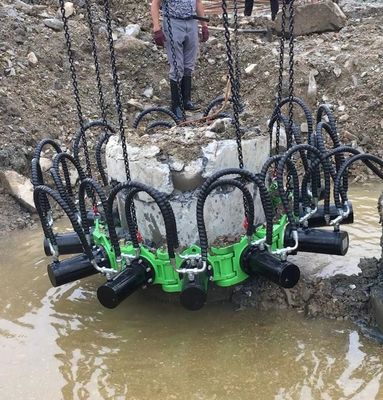

(1) Make the pile breaker move to the place of the pile head.
(2) Adjust the height of the pile breaker to the suitable cutting place (pleas refer to the construction parameter list, otherwise the chain may be broken), and clamp the pile posotion to be cut.
(3) Adjust the excavator's systrm pressure according to the concrete strength, and pressurize the cylinder until the concrete pile is broken under high pressure.
(4) After cutting the pile, hoist the concrete block.
(5) Move the crushed pile to the designed position.
Q1: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
Q2:Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
