Product Details:
|
| Max. Drilling Diameter: | 2000 Mm | Max. Drilling Depth: | 26 M |
|---|---|---|---|
| Torque: | 320 KN.m | Max. Crowd Pressure: | 220 KN |
| Main Winch Line Pull: | 230 KN | Max. Crowd Pull: | 230 KN |
| Travel Speed: | 1.6Km/h | Pilot Pressure: | 3.9 Mpaa |
| Engine: | Cummins QSM11 | Stroke: | 2000 Mm |
| Traction Force: | 550 KN | Displacement: | 10.8L |
| Rate Power: | 280kw/2000rpm | Overall Weight: | 75 T |
| High Light: | depth 26m pile drilling equipment,tysim pile drilling equipment,tysim small piling rig |
||
Tysim KR300DS hydraulic low head room piling pile driver with max. depth 26m and diameter 2000mm
Product Description

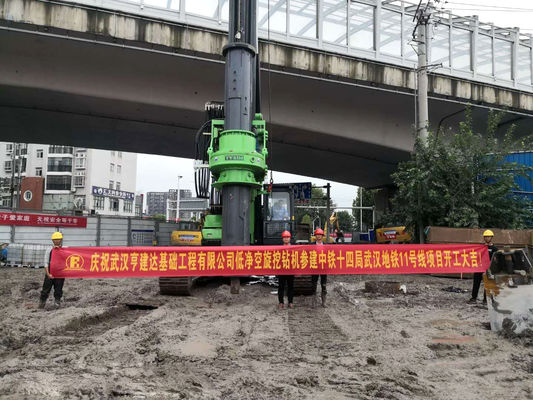

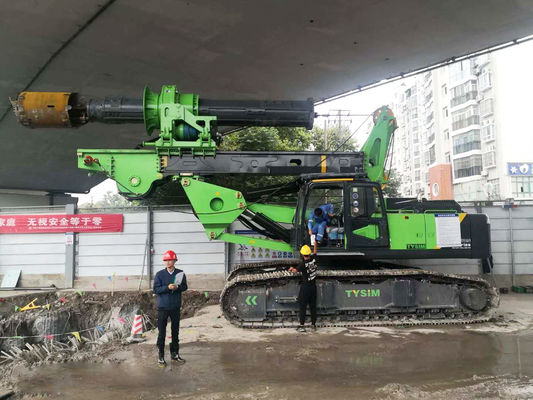

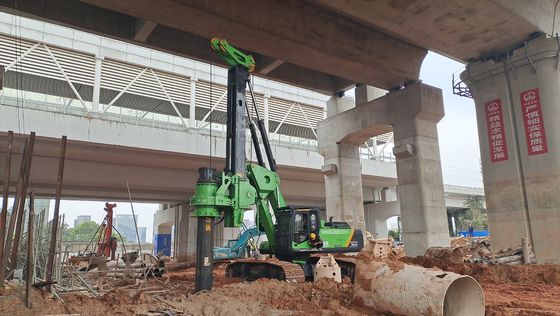

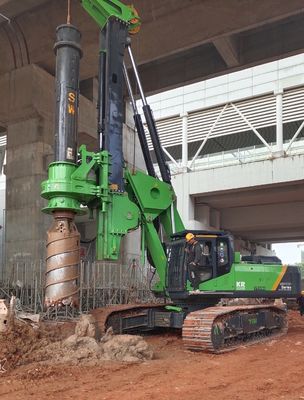

KR300DS drilling rig in short mast configuration has a working height of only 11m. allowing the rig to
be used in low headroom areas under bridges, power lines inside buildings, etc.
| Technical specification of KR300DS rotary drilling rig | ||
| Torque | 320 kN.m | |
| Max. diameter | 2000mm | |
| Max. drilling depth | 26 | |
| Speed of rotation | 6~26 rpm | |
| Max. crowd pressure | 220 kN | |
| Max. crowd pull | 230 kN | |
| Main winch line pull | 230 kN | |
| Main winch line speed | 80 m/min | |
| Auxiliary winch line pull | 110 kN | |
| Auxiliary winch line speed | 75 m/min | |
| Stroke(crowd system) | 2000 mm | |
| Mast inclination(lateral) | ±5° | |
| Mast inclination(forward) | 5° | |
| Max. operating pressure | 35MPa | |
| Pilot pressure | 3.9 MPa | |
| Travel speed | 1.5 km/h | |
| Traction force | 550 kN | |
| Operating height | 11087 mm | |
| Operating width | 4300 mm | |
| Transport height | 3590 mm | |
| Transport width | 3000 mm | |
| Transport length | 10651 mm | |
| Overall weight | 76t | |
| Engine | ||
| Model | Cummins QSM11 | |
| Cylinder number*diameter*stroke(mm) | 6*125*147 | |
| Displacement(L) | 10.8 | |
| Rated power (KW/rpm) | 280/2000 | |
| Output standard | European III | |
| Kelly bar | ||
| Type | Interlocking | |
| Section*length | 7*5000(standard) | |
| Depth | 26m | |

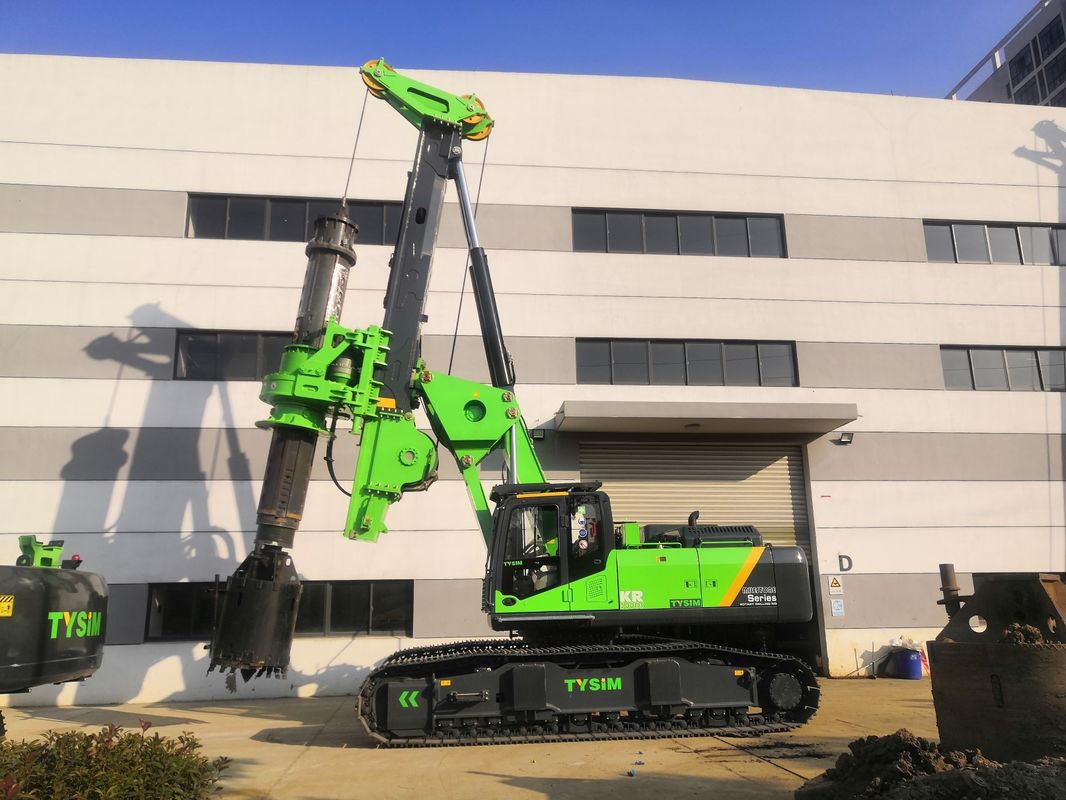

product photo
1. Undercarriage-----Reliable & Mature Excavator Supplier for Choice
Type: New & Used
Brand: CAT, JCM, SINOMACH, SANY, XCMG and other
2. Hydraulic Parts-----World Famous Brands
Gearbox Reducer: Imported REXROTH
Main Pump & Valve: Imported KAWASAKI (Japan)
Hose: Imported
3. Structure Parts-----Professional Structure Parts Supplier for XCM
Product introduction
TYSIM machinery focuses on the research,development and manufacture of the kind of the pile working enginerring machiney,it’s the unique company that focuses on developing small and medium-sized rotary drilling rig applying for civil enginerring,now have obtained more than 40 patents of pile working enginerring machiney.The original KP size Pile Breaker(also named break pile machine) of company in China,realize the efficiently pile cutting on a large scale,change the history that field of pile cutting inland rely on the workers and no professional equipments.This production obtained 11 core patents,among them 1 invention patent,they have been exported to Amercian,Brazil,Australia,Vietman,Indonesia and many other countries.

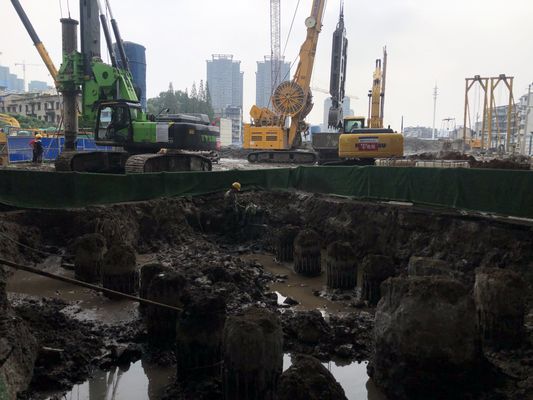

KR size small and medium-sized rotary drilling rig in many fields of metro,viaduct,houses win the praise of all the customers for the construction result,it will be the low cost and high efficient pile working equipments in operation field of our country’s new urbanizational construction. With the goal “be the reliable pile working proficient,fabricate the trade leading outstanding productions”,we recruit excellent talents constantly,create cause terrace for the win-win situation between staffs and company.We stick to the core concept“concentration,creative,value”concentrate on research and development in the pile basical construction field,rely on the working style of“pay attentions to details,keep improving,against the tardiness, finish daily duty”make great efforts to realize the vision of “become the pacemaker of small and medium-sized pile working machinery”.

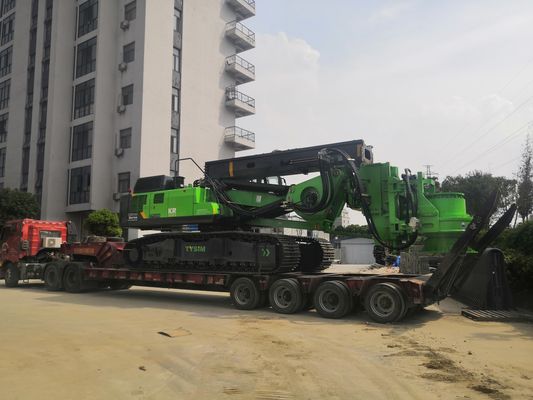

Packing show
Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
