|Pile Diameter:||350~500mm||Max.rod Pressure:||280kN|
|Crowd Stroke:||135mm||Max. Crowd Pressure:||34.3MPa|
|Max. Cylinder Required:||20L/min||Quantity/8h:||200/8h|
|Max. Single Cutting Height:||≤300mm||Overall Weight:||0.92t|
|Type:||Hydraulic Pile Breaker||Color:||Green Or Customized|
Square Hydraulic Pile Breaker,
Concrete Hydraulic Pile Breaker,
Less Noise Hydraulic Pile Breaker

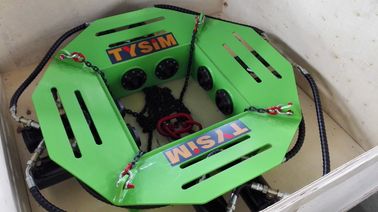

TYSIM KP500S Suqare Pile Hydraulic Pile Breaker Machine For Crushing Concrete Piles
|Technical Specification of KP500S Hydraulic Pile Breaker|
|Max. rod pressure||280kN|
|Max. cylinder stroke||135mm|
|Max. crowd pressure||34.3MPa|
|Max. single cylinder flow||20L/min|
|Max. single cutting height||≤300mm|
1. Cylinder-----Chinese Largest Cylinder Factory Brand: SANY Cylinder
2. Module-----Steel Casing, which is stronger than iron welding
3. Drill Rod-----3-times Special Heat Treatment, which guarantees its strength & tenacity
1. The leading hydraulic pile breaker/cutter, with five patented technologies, is the most efficient equipment to crushing the fundation piles and fills the China gap.
2. Using advanced modular design, it can be used for crushing pile of different diameters by changing the module combination quantity.
3. It can be installed on a larege variety of construction machinery, realizing the versatility and economy.
(1) The leading hydraulic pile breaker/cutter, with five patented technologies, is the most efficient equipment to crushing the fundation piles and fills the China gap.
(2) Using advanced modular design, it can be used for crushing pile of different diameters by changing the module combination quantity.
(3) It can be installed on a larege variety of construction machinery, realizing the versatility and economy.

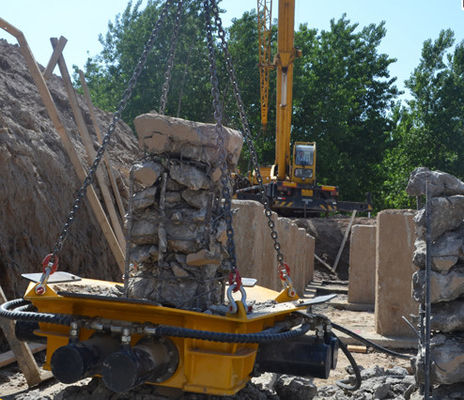

3.The operation steps of the pile
(1) Make the pile breaker move to the place of the pile head.
(2) Adjust the height of the pile breaker to the suitable cutting place (pleas refer to the construction parameter list, otherwise the chain may be broken), and clamp the pile posotion to be cut.
(3) Adjust the excavator's systrm pressure according to the concrete strength, and pressurize the cylinder until the concrete pile is broken under high pressure.
(4) After cutting the pile, hoist the concrete block.
(5) Move the crushed pile to the designed position.
Q1: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
Q2:Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
