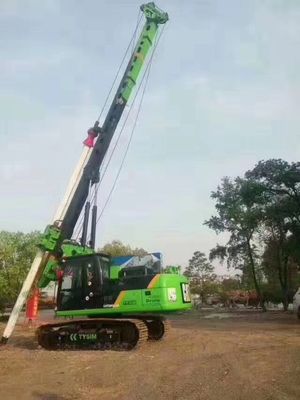

KR90A Bore Pile Drilling Max Depth 28m Hydraulic Piling Machine

KR90A Bore Pile Drilling Max Depth 28m Hydraulic Piling Machine
KR90A Bore Pile Drilling Max Depth 28m Hydraulic Piling Machine

Large Image :  KR90A Bore Pile Drilling Max Depth 28m Hydraulic Piling Machine

Product Details:
Place of Origin: Jiangsu, China
Brand Name: TYSIM
Certification: CE,ISO9001
Model Number: kR90A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Method One: Nude packing and overall transport by sea with roll-on-roll-off ship. (L*W*H=9150*2600*3250 mm);
Delivery Time: 30days after receive the advanced payment
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5 set per month
Detailed Product Description
Max. Torque: 90 KN.m Max. Drilling Diameter: 1200 Mm
Max. Drilling Depth: 28m Overall Weight: 24 T
High Light:

Max Depth 28m hydraulic piling machine

,

Max 28m Depth hydraulic piling machine

,

bore pile drilling hydraulic piling machine

Parameter:

Technical Specification of KR90A Rotary Drilling Rig
Max. Torque 90 kN.m
Max. diameter 1000/1200 mm
Max. drilling depth 29 m/23 m
Speed of rotation 6~30 rpm
Max. crowd pressure 90 kN
Max. crowd pull 120 kN
Main winch line pull 80 kN
Main winch line speed 75m/min
Auxiliary winch line pull 50 kN
Auxiliary winch line speed 40 m/min
Stroke(crowd system) 3500 mm
Mast inclination(lateral) ±3°
Mast inclination(forward)
Max. operating pressure 34.3 MPa
Pilot pressure 3.9 MPa
Travel speed 2.8 km/h
Traction force 122 kN
Operating height 12705 mm
Operating width 2890 mm
Transport height 3465 mm
Transport width 2770 mm
Transport length 11385 mm
Overall weight 24 t





Engine
Model Cummins QSF3.8
Form Water cooling, 4 Cylinder in-line, Turbocharger
Cylinder number*diameter*Stroke(mm) 4*107*124
Displacement(L) 3.8
Rated Power(kW/rpm) 84.3/2200
Max. Torque(N.m/rpm) 470
Kelly Bar
Type Interlocking(299MM) Friction(299MM)
Section*length 4*8000 mm 4*1000 mm
Depth 28m 36 m



KR90A Bore Pile Drilling Max Depth 28m Hydraulic Piling Machine 0
