Product Details:
|
| Torque: | 80 KN.m | Max. Crowd Pressure: | 80 KN |
|---|---|---|---|
| Max. Drilling Diameter: | 1000mm | Max. Crowd Pull: | 120 KN |
| Max. Drilling Depth: | 28 M | Main Winch Line Pull: | 80 KN |
| Speed Of Rotation: | 8~30 Rpm | Auxiliary Winch Line Pull: | 35 KN |
| High Light: | 120 kN Piling Rig Machine,1000mm dia Piling Rig Machine,KR80K |
||
TYSIM Drilling 28m Foundation Pile Machine KR80K Min Piling Machine Bore Pile Auger Drill Machine
Specification:
| Technical Specification of KR80K Rotary Drilling Rig | |
| Max. Torque | 80 kN.m |
| Max. diameter | 1000 mm |
| Max. drilling depth | 28 m |
| Speed of rotation | 8~30 rpm |
| Max. crowd pressure | 80 kN |
| Max. crowd pull | 120 kN |
| Main winch line pull | 90 kN |
| Main winch line speed | 80 m/min |
| Auxiliary winch line pull | 35 kN |
| Auxiliary winch line speed | 40 m/min |
| Stroke(crowd system) | 2000 mm |
| Mast inclination(lateral) | ±3° |
| Mast inclination(forward) | 4° |
| Max. operating pressure | 34.3 MPa |
| Pilot pressure | 3.9 MPa |
| Travel speed | 3.4 km/h |
| Traction force | 98 kN |
| Operating height | 12580 mm |
| Operating width | 2700 mm |
| Transport height | 3250 mm |
| Transport width | 2700 mm |
| Transport length | 9150 mm |
| Overall weight | 23 t |
Description:
1.The leading overall transport hydraulic rotary drilling rig, can change transport state into working state rapidly;
2. High-performance hydraulic system and control system in cooperation with Tianjin University CNC Hydraulic Institute of Technology, which can realize the machines construction efficiently and real-time monitor;
3. High security, design in strict accordance with European Union safety standards EN791. Meet the requirements of dynamic and static stability;
Advantage
Ø Open and transparent one-stop centralized procurement;
Ø International standard purchase supply process management;
Ø Expert technical solution for production process;
Ø Display, storage and after-sales service ;
Ø International financing and insurance

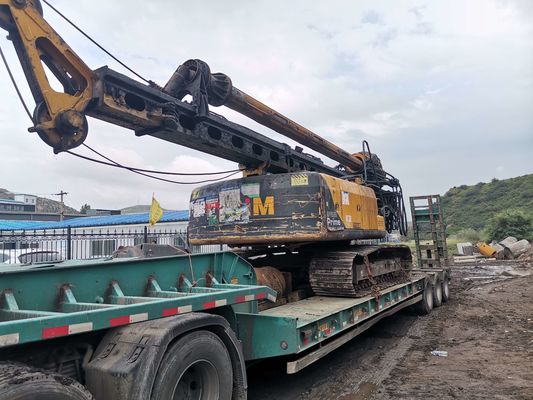

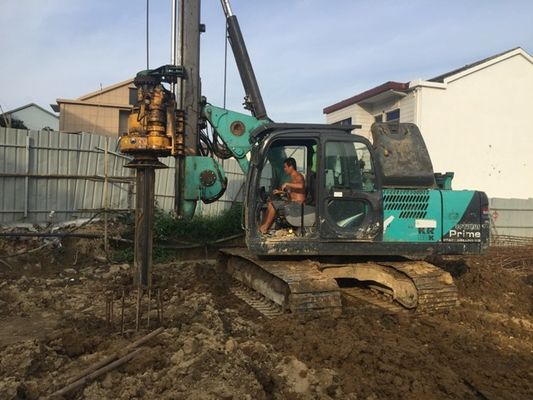

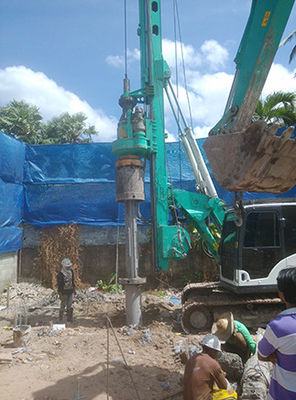

photos
Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
