|Torque:||80 KN.m||Max. Crowd Pressure:||80 KN|
|Max. Drilling Diameter:||1000 Mm||Max. Crowd Pull:||120 KN|
|Max. Drilling Depth:||28m||Main Winch Line Pull:||80 KN|
|Speed Of Rotation:||8~30 Rpm||Auxiliary Winch Line Pull:||35 KN|
35kn Bored Pile Equipment,
28m depth Bored Pile Equipment
TYSIM Drilling 28m Foundation Pile Machine KR80K Min Piling Machine Bore Pile Auger Drill Machine
Max. drilling diameter: 1000mm
Max. driling depth: 28m
Using original KOBELCO SK140LC Excavator Chassis
1. Undercarriage-----Reliable & Mature Excavator Supplier for Choice
Type: New & Used
Brand: CAT, JCM, SINOMACH, SANY, XCMG and other
2. Hydraulic Parts-----Famous Brands
Gearbox Reducer: Imported REXROTH
Main Pump & Valve: Imported KAWASAKI (Japan)
3. Structure Parts-----Professional Structure Parts Supplier in China
|Technical Specification of KR80K Rotary Drilling Rig|
|Max. Torque||80 kN.m|
|Max. diameter||1000 mm|
|Max. drilling depth||28 m|
|Speed of rotation||8~30 rpm|
|Max. crowd pressure||80 kN|
|Max. crowd pull||120 kN|
|Main winch line pull||90 kN|
|Main winch line speed||80 m/min|
|Auxiliary winch line pull||35 kN|
|Auxiliary winch line speed||40 m/min|
|Stroke(crowd system)||2000 mm|
|Max. operating pressure||34.3 MPa|
|Pilot pressure||3.9 MPa|
|Travel speed||3.4 km/h|
|Traction force||98 kN|
|Operating height||12580 mm|
|Operating width||2700 mm|
|Transport height||3250 mm|
|Transport width||2700 mm|
|Transport length||9150 mm|
|Overall weight||23 t|

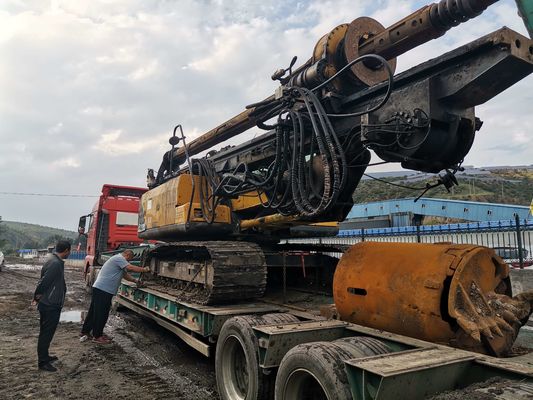

1.The leading overall transport hydraulic rotary drilling rig, can change transport state into working state rapidly;
2. High-performance hydraulic system and control system in cooperation with Tianjin University CNC Hydraulic Institute of Technology, which can realize the machines construction efficiently and real-time monitor;
3. High security, design in strict accordance with European Union safety standards EN791. Meet the requirements of dynamic and static stability;
Ø Open and transparent one-stop centralized procurement;
Ø International standard purchase supply process management;
Ø Expert technical solution for production process;
Ø Display, storage and after-sales service ;
Ø International financing and insurance
Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
