Product Details:
|
| Torque: | 220 KN.m | Max. Drilling Diameter: | 2000 Mm |
|---|---|---|---|
| Max. Drilling Depth: | 68m | Speed Of Rotation: | 5~26 Rpm |
| Max. Crowd Pressure: | 180 KN | Max. Crowd Pull: | 200kN |
| Main Winch Line Pull: | 240 KN | Auxiliary Winch Line Pull: | 110 KN |
| Highlight: | 64m Hydraulic Piling Rig Machine,2m Hydraulic Piling Rig Machine,220kN.M Hydraulic Piling Rig Machine |
||
Max drilling depth 64m KR220D Piling machine Used borehole drilling machine Small bored pile driving machine
Specification:
| Technical specification of KR220D rotary drilling rig | ||
| Max. torque | 220 kN.m | |
| Max. diameter | 1800 /2000mm | |
| Max. drilling depth | 64/51m | selective assembly |
| Speed of rotation | 5~26 rpm | |
| Max. crowd pressure | 210 kN | |
| Max. crowd pull | 220kN | |
| Main winch line pull | 230 kN | First floor |
| Main winch line speed | 60 m/min | |
| Auxiliary winch line pull | 90 kN | First floor |
| Auxiliary winch line speed | 60 m/min | |
| Stroke(crowd system) | 5000 mm | |
| Mast inclination(lateral) | ±5° | |
| Mast inclination(forward) | 5° | |
| Max. operating pressure | 34.3MPa | |
| Pilot pressure | 4 MPa | |
| Max traction force | 420 | |
| Operating height | 21077 | |
| Operating width | 4300 | |
| Transport height | 3484 | |
| Transport width | 3000 | |
| Transport length | 15260 | |
| Overall weight | 69t | Standard drill pipe configuration included |
| engine | ||
| Engine type | QSL9 | |
| Engine form | Water cooled, 6 cylinder in-line, turbocharged, air - to - air cooled | |
| Cylinder number * cylinder diameter * stroke | 6X114X145mm | |
| Displacement | 8.9L | |
| Rated power | 232/1800 | |
| Max.torque | 1898/1900 N.m/rpm | |
| effluent standard | TILR 3 U.S. EPA | |
| Chassis | ||
| Track width (minimum ~ maximum) | 3200~4500mm | |
| Width of track plate | 800mm | |
| Tail radius of rotation | 4151mm | |
| type | Friction kelly bar(mm) | Interlocking Kelly Bar mm) |
| Outer diameter | 440m | 440m |
| Number of layers * the length of each layer | 5X14 | 4X14 |
| Max. depth | 64 | 51 |

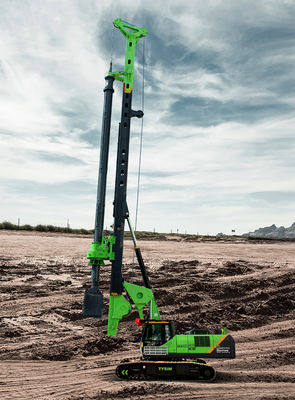

construction photos
Description:
1.The leading hydraulic rotary drilling rig, can change transport state into working state rapidly;
2. Cooperation with Tianjin University CNC Hydraulic Institute of Technology, which can realize the machines construction efficiently and real-time monitor;
3. With CE certification, designed in strict accordance with European Union safety standards EN791;
4. Weight optimization distribution with higher security and better stability, more safe construction;
5. Higher quality CAT Chassis ensures the great performance of the whole machine;
6. Mature overall transport design can improve transport efficiency, saving cost.
