|Pile Diameter:||600~1800mm||Max.rod Pressure:||600kN|
|Crowd Stroke:||180mm||Max. Crowd Pressure:||30MPa|
|Max. Cylinder Required:||30L/min||Quantity/8h:||32/8h|
|Max. Single Cutting Height:||≤300mm||Single Module Weight:||230kg|
|Single Module Size:||696*566*350 Mm||Type:||Hydraulic Pile Breaker|
pile cutting machine,
hydraulic pile cutter

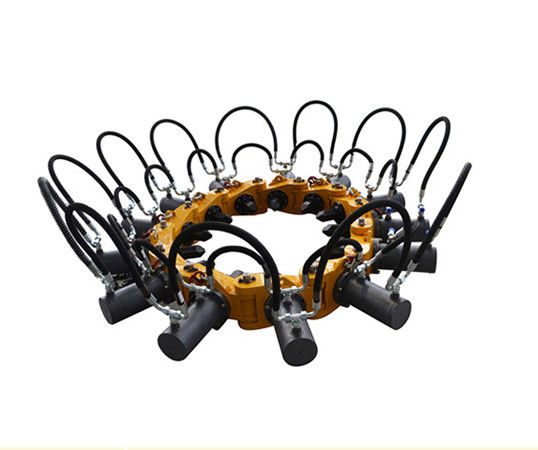

TYSIM Hydraulic Piling Rig KP380A
|Technical specification KP380A (18 modules combination)|
|Max. cylinder stroke||150mm|
|Max. crowd pressure||30MPa|
|Max. single cylinder flow||30L/min|
|Max. single cutting height||≤300mm|
|Single module weight||230kg|
|Single module size||696×566×350 mm|
|Operating size||Φ3316×Φ4000 mm|
|KP380A construction parameters|
|Module numbers||The diameter range||Platform Weight||Weight||Height of single crush pile|
|8||Φ600 mm||≥20 t||2200 kg||≤300 mm|
|9||Φ700 mm||≥20 t||2430 kg||≤300 mm|
|10||Φ800~Φ900 mm||≥25 t||2660 kg||≤300 mm|
|11||Φ1000 mm||≥25 t||2890 kg||≤300 mm|
|12||Φ1100 mm||≥25 t||3120 kg||≤300 mm|
|13||Φ1200 mm||≥28 t||3350 kg||≤300mm|
|14||Φ1300~Φ1400 mm||≥28 t||3580 kg||≤300 mm|
|15||Φ1500 mm||≥30 t||3810 kg||≤300 mm|
|16||Φ1600 mm||≥30 t||4040 kg||≤300 mm|
|17||Φ1700 mm||≥35 t||4270 kg||≤300 mm|
|18||Φ1800 mm||≥35 t||4500 kg||≤300 mm
(1) The leading hydraulic pile breaker/cutter, with five patented technologies, is the most efficient equipment to crushing the fundation piles and fills the China gap.
(2) Using advanced modular design, it can be used for crushing pile of different diameters by changing the module combination quantity.

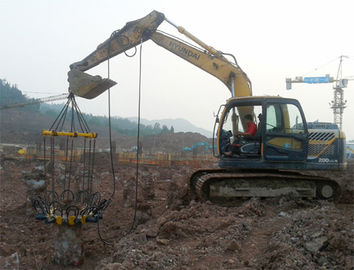

(3) It can be installed on a larege variety of construction machinery, realizing the versatility and economy.
3.The operation steps of the pile

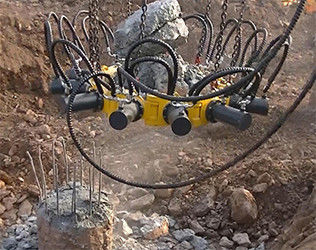

(1) Make the pile breaker move to the place of the pile head.
(2) Adjust the height of the pile breaker to the suitable cutting place (pleas refer to the construction parameter list, otherwise the chain may be broken), and clamp the pile posotion to be cut.
(3) Adjust the excavator's systrm pressure according to the concrete strength, and pressurize the cylinder until the concrete pile is broken under high pressure.
(4) After cutting the pile, hoist the concrete block.
(5) Move the crushed pile to the designed position.
