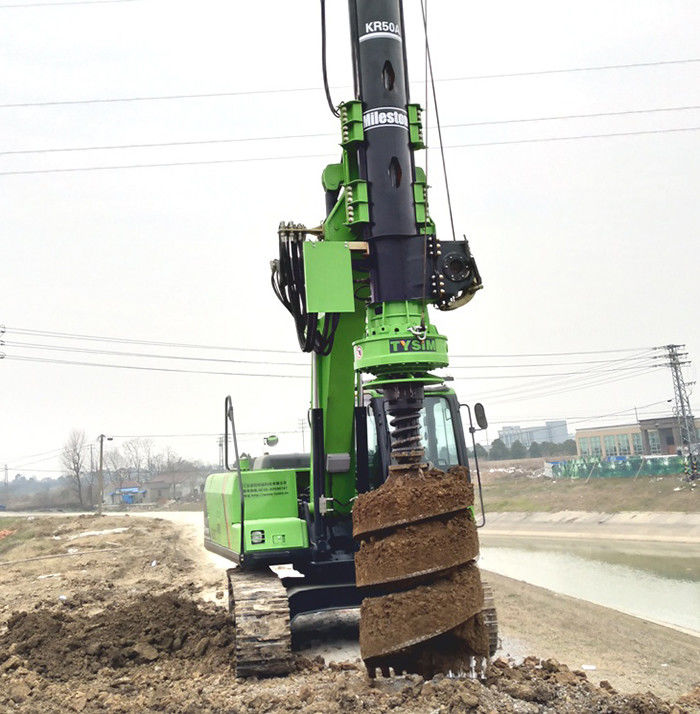

Construction Machinery TYSIM KR50 Rotary Drilling Machine With 20m Depth

Place of Origin Jiangsu, China
Brand Name TYSIM
Certification CE,ISO9001
Model Number KR50A
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Overall transport; Packaged in one flat rack.
Delivery Time 30 working days after recieving the advanced payment
Payment Terms L/C, T/T
Supply Ability 5 set per month
Product Details
Max. Torque 50 KN.m Max. Drilling Diameter 1200 Mm
Max. Drilling Depth 16m, 20m, 24 M Main Winch Line Speed 48 M/min
Max. Cylinder Stroke 1100 Mm Main Winch Pull Force 75 KN
Speed Of Rotation 8~30 Rpm Max. Transport Weight 7.5 T
Operating Height (mm) 10740 Operating Width (mm) 2800
Excavator Size 21 Ton Or Above
High Light

bored pile drilling machine


hydraulic rig machine

Leave a Message
Product Description
Rotary Bored Hole Pile Equipment , Hydraulic Piling Rig Max Pile Diameter 1200mm
Rotary Drilling Rig ModelKR50A
Excavator Size14t-16t20t-23t24t+
Max. torque50 kN.m50 kN.m50 kN.m
Max. drilling diameter1200 mm1200 mm1200 mm
Max. drilling depth16 m20 m24 m
Main winch pull force70 kN75 kN75 kN
Main cylinder trip1100 mm1100 mm1100 mm
Auxiliary winch pull force65 kN65 kN65 kN
Main winch speed48 m/min48 m/min48 m/min
Mast inclination(Lateral)±6°±6°±6°
Mast inclination(Forward)-30°~ ﹢90°-30°~﹢90°-30°~﹢90°
Working speed7-40rpm7-40rpm7-40rpm
Min. radius of gyration2800mm2950mm5360mm
Max. pilot pressure31.5Mpa31.5Mpa31.5Mpa
Operating height8868mm9926mm11421mm
Operating width2600mm2800mm3300mm
Transport height2731mm3150mm3311mm
Transport width2600mm2800mm3300mm
Transport length10390mm11492mm12825mm
Transport weight6.1t6.5t7t
RemarkRestructuring big armRestructuring big armRestructuring big arm

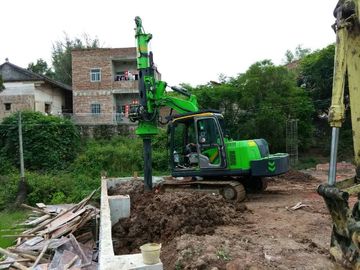

construction photos

Construction Machinery TYSIM KR50 Rotary Drilling Machine With 20m Depth 0Construction Machinery TYSIM KR50 Rotary Drilling Machine With 20m Depth 1

Construction Machinery TYSIM KR50 Rotary Drilling Machine With 20m Depth 2

Our Services

Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.


Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
