Product Details:
|
| Max Capacity: | 200M3/h | Cut Point: | 0.06mm |
|---|---|---|---|
| Total Power: | 48kW | Main Pump Motor Power: | 45kW |
| Vibration Motor Power: | 1.5*2kW | Transportation Dimension: | 4.0m*2.4m*2.9m |
| Max Dimension: | 4.5*2.4*2.9 | Total Weight: | 5600kg |
| Highlight: | slurry treatment system,mud removal equipment |
||

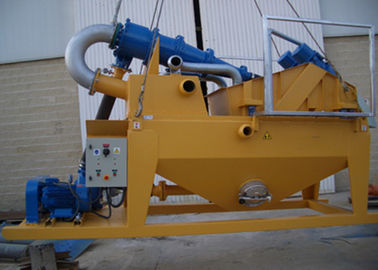

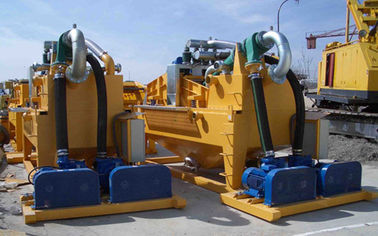

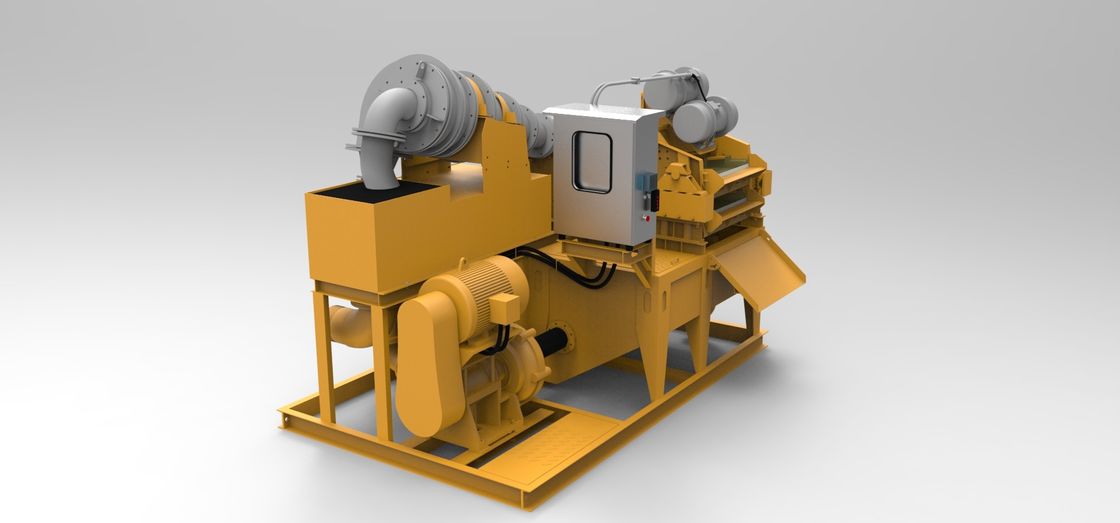

RMT series slurry treatment system:
1.Cut point d50: 0.06mm
2.Total weight:5600kg
3.Dimension: 4.5m*2.4m*2.9m
RMT series desander for hydraulic rotary drilling rig is widely used in the purification and recycling of slurry for the construction of hydropower, continuous concrete wall, slurry shield tunnel, etc. It can not only help you cut down construcion cost, but also can reduce the pollution of the environment.
| Specifications | RMT100A | RMT150 | RMT200 | RMT250 | RMT500 |
| Cut point d50(um) | 40 | 40 | 60 | 60 | 60 |
| Total capacity(kw) | 20.7 | 24.2 | 48 | 58 | 58*2+3.0 |
| Dismension(m) | 3.2*2.0*2.3 | 3.2*2.0*2.3 | 4.5*2.4*2.9 | 4.5*2.4*2.9 | 10*3.2*5.6 |
| Slurry feed capacity(m3/h) | 100 | 150 | 200 | 250 | 500 |
| Weight(kg) | 2550 | 2600 | 5600 | 5700 |
20000 |
FAQ
Q1: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
Q2:Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
After-sale service
1.We can design and manufacture the product and send the technical personnel to guide the installation of equipment at customer's workplace according to the requirements of our customers
tomer's feedback to technology department and return the results to customers as soon as possible.
