Product Details:
|
| Pile Diameter: | 300~1050mm | Max.rod Pressure: | 280kN |
|---|---|---|---|
| Crowd Stroke: | 135mm | Max. Crowd Pressure: | 34.3MPa |
| Max. Cylinder Required: | 20L/min | Quantity/8h: | 60/8h |
| Max. Single Cutting Height: | ≤300mm | Single Module Weight: | 100kg |
| Type: | Hydraulic Pile Breaker | Condition: | New |
| Highlight: | pile breaker machine,hydraulic pile cutter |
||

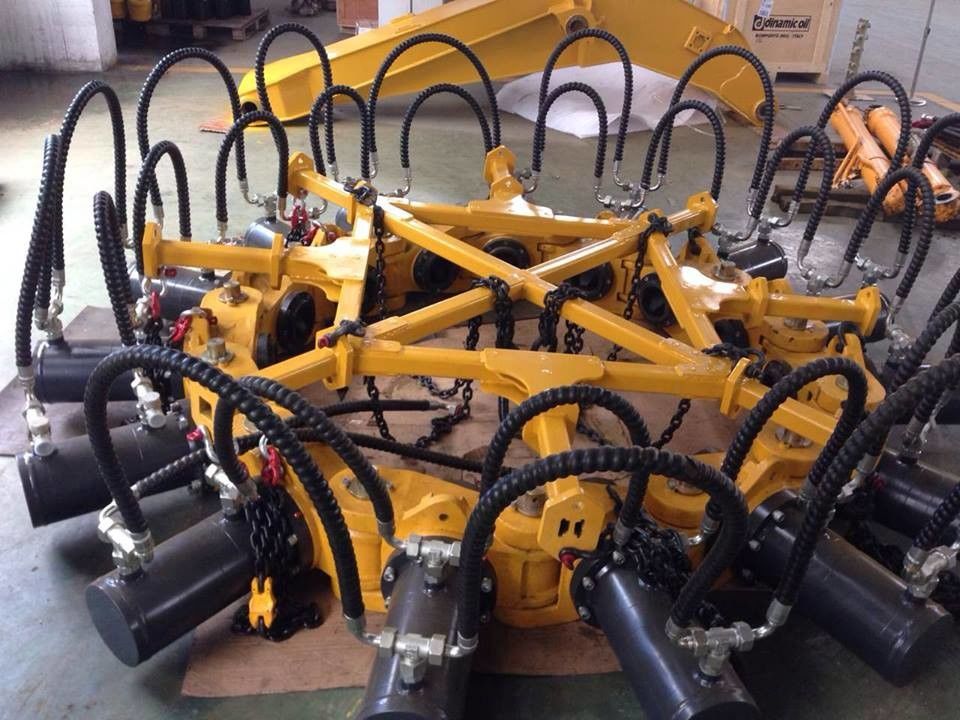

300mm-1050mm diameter Crush breaker of Concrete Pile Head For Excavator KP315A
Technical Specification
| Technical specification KP315A(13 modules combination) | |
| Pile diameter | Φ300~Φ1050mm |
| Max.rod pressure | 280kN |
| Max. cylinder stroke | 135mm |
| Max. crowd pressure | 34.3MPa |
| Max. single cylinder flow | 20L/min |
| Quantity/8h | 60/8h |
| Max. single cutting height | ≤300mm |
| Excavator capacity | ≥20t |
| Single module weight | 100kg |
| Single module size | 645×444×316 mm |
| Operating size | Φ2098×Φ4840 mm |
| Total weight | 1.7t |
| KP315A construction parameters | ||||
| Module numbers | The diameter range | Platform Weight | Weight | Height of single crush pile |
| 6 | Φ300~Φ350 mm | ≥12 t | 1000 kg | ≤300 mm |
| 7 | Φ350~Φ450 mm | ≥12 t | 1100 kg | ≤300 mm |
| 8 | Φ450~Φ550 mm | ≥16 t | 1200 kg | ≤300 mm |
| 9 | Φ550~Φ650 mm | ≥16 t | 1300 kg | ≤300 mm |
| 10 | Φ650~Φ760 mm | ≥20 t | 1400 kg | ≤300 mm |
| 11 | Φ760~Φ860 mm | ≥20 t | 1500 kg | ≤300 mm |
| 12 | Φ860~Φ960 mm | ≥20 t | 1600 kg | ≤300 mm |
| 13 | Φ960~Φ1050 mm | ≥20 t | 1700 kg | ≤300 mm |
Product introduction
TYSIM machinery focuses on the research,development and manufacture of the kind of the pile working enginerring machiney,it’s the unique company that focuses on developing small and medium-sized rotary drilling rig applying for civil enginerring,now have obtained more than 40 patents of pile working enginerring machiney.The original KP size Pile Breaker(also named break pile machine) of company in China,realize the efficiently pile cutting on a large scale,change the history that field of pile cutting inland rely on the workers and no professional equipments.This production obtained 11 core patents,among them 1 invention patent,they have been exported to Amercian,Brazil, Australia,Vietman, Indonesia and many other countries.
KR size small and medium-sized rotary drilling rig in many fields of metro,viaduct,houses win the praise of all the customers for the construction result,it will be the low cost and high efficient pile working equipments in operation field of our country’s new urbanizational construction. With the goal “be the reliable pile working proficient,fabricate the trade leading outstanding productions”,we recruit excellent talents constantly,create cause terrace for the win-win situation between staffs and company.We stick to the core concept“concentration,creative,value”concentrate on research and development in the pile basical construction field,rely on the working style of“pay attentions to details,keep improving,against the tardiness, finish daily duty”make great efforts to realize the vision of “become the pacemaker of small and medium-sized pile working machinery”.
