Product Details:
|
| Max. Torque: | 50 KN.m | Max. Drilling Diameter: | 1200 Mm |
|---|---|---|---|
| Max. Drilling Depth: | 24 M | Speed Of Rotation: | 7~40 Rpm |
| Max. Cylinder Stroke: | 1100 Mm | Main Winch Line Speed: | 48 M/min |
| Main Winch Pull Force: | 75 KN | Max. Operating Height: | 7181 Mm |
| Max. Operating Width: | 2300 Mm | Max. Transport Weight: | 7 T |
| Excavator Size: | 14 T-24 T | ||
| Highlight: | pile drilling equipment,pile foundation equipment |
||

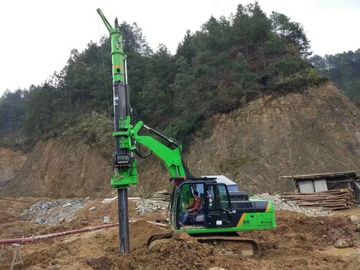

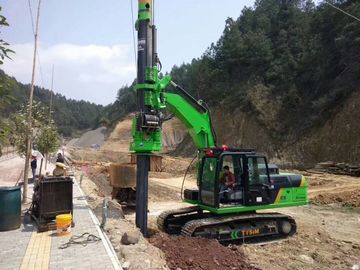

| Rotary Drilling Rig Model | KR50A | ||
| Excavator Size | 14t-16t | 20t-23t | 24t+ |
| Max. torque | 50 kN.m | 50 kN.m | 50 kN.m |
| Max. drilling diameter | 1200 mm | 1200 mm | 1200 mm |
| Max. drilling depth | 16 m | 20 m | 24 m |
| Main winch pull force | 70 kN | 75 kN | 75 kN |
| Main cylinder trip | 1100 mm | 1100 mm | 1100 mm |
| Auxiliary winch pull force | 65 kN | 65 kN | 65 kN |
| Main winch speed | 48 m/min | 48 m/min | 48 m/min |
| Mast inclination(Lateral) | ±6° | ±6° | ±6° |
| Mast inclination(Forward) | -30°~ ﹢90° | -30°~﹢90° | -30°~﹢90° |
| Working speed | 7-40rpm | 7-40rpm | 7-40rpm |
| Min. radius of gyration | 2800mm | 2950mm | 5360mm |
| Max. pilot pressure | 31.5Mpa | 31.5Mpa | 31.5Mpa |
| Operating height | 8868mm | 9926mm | 11421mm |
| Operating width | 2600mm | 2800mm | 3300mm |
| Transport height | 2731mm | 3150mm | 3311mm |
| Transport width | 2600mm | 2800mm | 3300mm |
| Transport length | 10390mm | 11492mm | 12825mm |
| Transport weight | 6.1t | 6.5t | 7t |
| Remark | Restructuring big arm | Restructuring big arm | Restructuring big arm |
KR size small and medium-sized rotary drilling rig in many fields of metro,viaduct,houses win the praise of all the customers for the construction result,it will be the low cost and high efficient pile working equipments in operation field of our country’s new urbanizational construction. With the goal “be the reliable pile working proficient,fabricate the trade leading outstanding productions”,we recruit excellent talents constantly,create cause terrace for the win-win situation between staffs and company.We stick to the core concept“concentration,creative,value”concentrate on research and development in the pile basical construction field,rely on the working style of“pay attentions to details,keep improving,against the tardiness, finish daily duty”make great efforts to realize the vision of “become the pacemaker of small and medium-sized pile working machinery”.
Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
