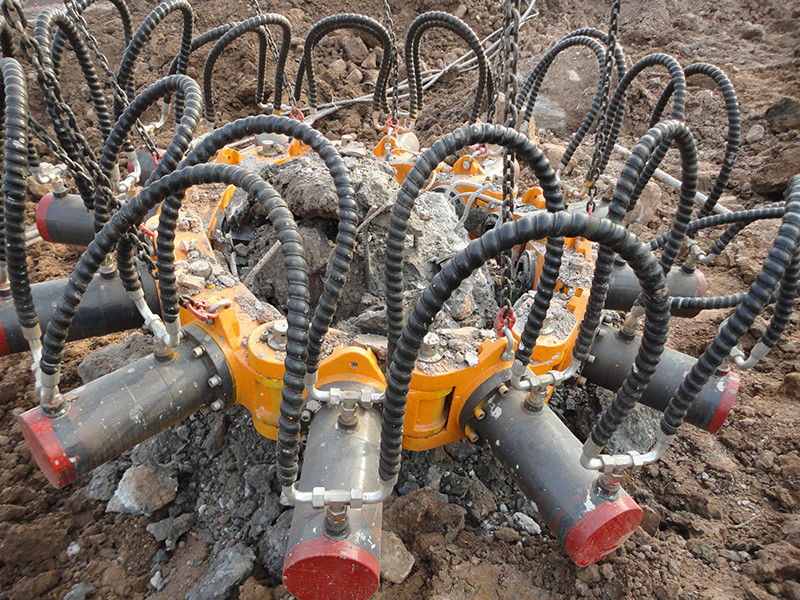

Engineering Construction Hydraulic Pile Breaker Machine 600 ~ 1800mm diameter

Engineering Construction Hydraulic Pile Breaker Machine 600 ~ 1800mm diameter

Engineering Construction Hydraulic Pile Breaker Machine 600 ~ 1800mm diameter

Product Details:

Place of Origin: Jiangsu, China
Brand Name: TYSIM
Certification: CE, ISO9001
Model Number: KP380A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden packing, suitable for shipping
Delivery Time: 9-13 workdays
Supply Ability: 100 per mouth
Contact Now
Detailed Product Description
Pile Diameter: 600~1800mm Max.rod Pressure: 600kN
Crowd Stroke: 180mm Max. Crowd Pressure: 30MPa
Max. Cylinder Required: 30L/min Quantity/8h: 32/8h
Max. Single Cutting Height: ≤300mm Single Module Weight: 230kg
Single Module Size: 696*566*350 Mm Type: Hydraulic Pile Breaker
Color: Yellow
High Light:

pile breaker machine

,

hydraulic pile cutter



Engineering Construction Hydraulic Pile Breaker Machine 600 ~ 1800mm diameter 0



TYSIM Hydraulic Piling Rig KP380A



Technical specification KP380A (18 modules combination)
Pile diameter Φ600~Φ1800mm
Max.rod pressure 600kN
Max. cylinder stroke 150mm
Max. crowd pressure 30MPa
Max. single cylinder flow 30L/min
Quantity/8h 32/8h
Max. single cutting height ≤300mm
Excavator capacity ≥35t
Single module weight 230kg
Single module size 696×566×350 mm
Operating size Φ3316×Φ4000 mm
Total weight 4.5t



KP380A construction parameters
Module numbers The diameter range Platform Weight Weight Height of single crush pile
8 Φ600 mm ≥20 t 2200 kg ≤300 mm
9 Φ700 mm ≥20 t 2430 kg ≤300 mm
10 Φ800~Φ900 mm ≥25 t 2660 kg ≤300 mm
11 Φ1000 mm ≥25 t 2890 kg ≤300 mm
12 Φ1100 mm ≥25 t 3120 kg ≤300 mm
13 Φ1200 mm ≥28 t 3350 kg ≤300mm
14 Φ1300~Φ1400 mm ≥28 t 3580 kg ≤300 mm
15 Φ1500 mm ≥30 t 3810 kg ≤300 mm
16 Φ1600 mm ≥30 t 4040 kg ≤300 mm
17 Φ1700 mm ≥35 t 4270 kg ≤300 mm
18 Φ1800 mm ≥35 t 4500 kg ≤300 mm


2. Description

Engineering Construction Hydraulic Pile Breaker Machine 600 ~ 1800mm diameter 1

(1) The leading hydraulic pile breaker/cutter, with five patented technologies, is the most efficient equipment to crushing the fundation piles and fills the China gap.



(2) Using advanced modular design, it can be used for crushing pile of different diameters by changing the module combination quantity.



(3) It can be installed on a larege variety of construction machinery, realizing the versatility and economy.



3.The operation steps of the pile



(1) Make the pile breaker move to the place of the pile head.



(2) Adjust the height of the pile breaker to the suitable cutting place (pleas refer to the construction parameter list, otherwise the chain may be broken), and clamp the pile posotion to be cut.



(3) Adjust the excavator's systrm pressure according to the concrete strength, and pressurize the cylinder until the concrete pile is broken under high pressure.



(4) After cutting the pile, hoist the concrete block.



(5) Move the crushed pile to the designed position.





Engineering Construction Hydraulic Pile Breaker Machine 600 ~ 1800mm diameter 2



Company Information

Engineering Construction Hydraulic Pile Breaker Machine 600 ~ 1800mm diameter 3



Engineering Construction Hydraulic Pile Breaker Machine 600 ~ 1800mm diameter 4









Engineering Construction Hydraulic Pile Breaker Machine 600 ~ 1800mm diameter 5Engineering Construction Hydraulic Pile Breaker Machine 600 ~ 1800mm diameter 6

FAQ
Q1: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.

Q2:Why Choose Us?

1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
