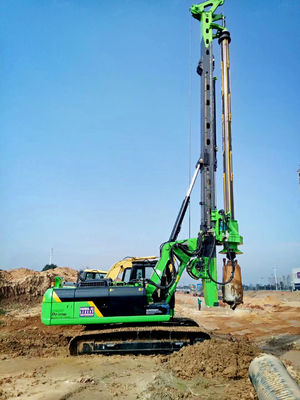

TYSIM KR150C Foundation Pile Drilling Hydraulic Piling Rig With Rotary Angle Displacement Output Mechanism

TYSIM KR150C Foundation Pile Drilling Hydraulic Piling Rig With Rotary Angle Displacement Output Mechanism

  • TYSIM KR150C Foundation Pile Drilling Hydraulic Piling Rig With Rotary Angle Displacement Output Mechanism
  • TYSIM KR150C Foundation Pile Drilling Hydraulic Piling Rig With Rotary Angle Displacement Output Mechanism
  • TYSIM KR150C Foundation Pile Drilling Hydraulic Piling Rig With Rotary Angle Displacement Output Mechanism
  • TYSIM KR150C Foundation Pile Drilling Hydraulic Piling Rig With Rotary Angle Displacement Output Mechanism
TYSIM KR150C Foundation Pile Drilling Hydraulic Piling Rig With Rotary Angle Displacement Output Mechanism
Product Details:
Place of Origin: Jiangsu, China
Brand Name: TYSIM
Certification: CE/ISO9001
Model Number: KR150C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Nude packing and overall transport by sea with roll-on-roll-off ship; One Flat rack container.
Delivery Time: 45 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Product Name: Hydraulic Piling Rig Condition: New
Weight: 43 T Dimension: 13970*3000*3500 Mm
Warranty: 1 Year After-sales Service Provided: Overseas Third-party Support Available
Torque: 150 KN.m Max. Drilling Diameter: 1500 Mm
Max. Drilling Depth: 50 M

TYSIM KR150C Rotary Borehole Pile Rig Foundation Construction Drilling Equipment Max Torque 150kN.m



Technical Specification
Technical specification of KR150C rotary drilling rig
Torque 150 kN.m
Max. diameter 1500 mm
Max. drilling depth 52 m
Speed of rotation 7~26rpm
Max. crowd pressure 100 kN
Max. crowd pull 150 kN
Main winch line pull 110 kN
Main winch line speed 78 m/min
Auxiliary winch line pull 60 kN
Auxiliary winch line speed 60 m/min
Stroke(crowd system) 3200 mm
Mast inclination(lateral) ±3°
Mast inclination(forward)
Max. operating pressure 35MPa
Pilot pressure 3.9 MPa
Travel speed 2.8 km/h
Traction force 400kN
Operating height 18000 mm
Operating width 4300 mm
Transport height 3500 mm
Transport width 3000 mm
Transport length 13970 mm
Overall weight  43t
Engine
Model CAT-C7.1
Cylinder number*diameter*Stroke(mm) 6*105*135
Displacement 7.01
Rated Power(kW/rpm) 112/1800
Emission Standard EU III



1. Undercarriage-----Reliable & Mature Excavator Supplier for Choice

Type: New & Used

Brand: CAT, JCM, SINOMACH, SANY, XCMG and other



2. Hydraulic Parts-----World Famous Brands

Gearbox Reducer: Imported REXROTH

Main Pump & Valve: Imported KAWASAKI (Japan)

Hose: Imported



3. Structure Parts-----Professional Structure Parts Supplier for XCMG



Product introduction

TYSIM machinery focuses on the research,development and manufacture of the kind of the pile working enginerring machiney,it’s the unique company that focuses on developing small and medium-sized rotary drilling rig applying for civil enginerring,now have obtained more than 40 patents of pile working enginerring machiney.The original KP size Pile Breaker(also named break pile machine) of company in China,realize the efficiently pile cutting on a large scale,change the history that field of pile cutting inland rely on the workers and no professional equipments.This production obtained 11 core patents,among them 1 invention patent,they have been exported to Amercian,Brazil,Australia,Vietman,Indonesia and many other countries.

KR size small and medium-sized rotary drilling rig in many fields of metro,viaduct,houses win the praise of all the customers for the construction result,it will be the low cost and high efficient pile working equipments in operation field of our country’s new urbanizational construction. With the goal “be the reliable pile working proficient,fabricate the trade leading outstanding productions”,we recruit excellent talents constantly,create cause terrace for the win-win situation between staffs and company.We stick to the core concept“concentration,creative,value”concentrate on research and development in the pile basical construction field,rely on the working style of“pay attentions to details,keep improving,against the tardiness, finish daily duty”make great efforts to realize the vision of “become the pacemaker of small and medium-sized pile working machinery”.

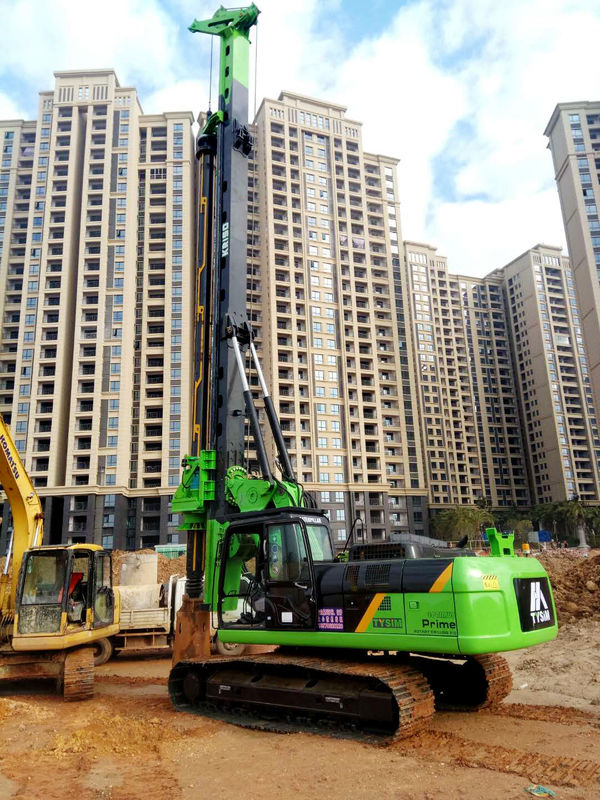

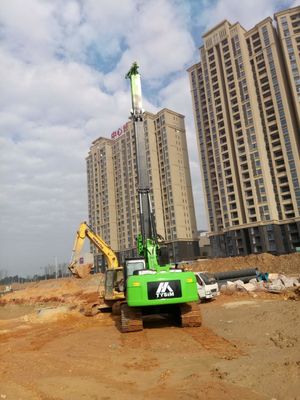

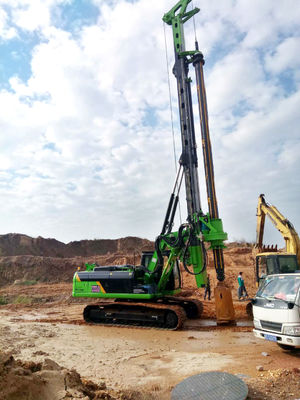

Construction photos
TYSIM KR150C Foundation Pile Drilling Hydraulic Piling Rig With Rotary Angle Displacement Output Mechanism 0
TYSIM KR150C Foundation Pile Drilling Hydraulic Piling Rig With Rotary Angle Displacement Output Mechanism 1
paking show
TYSIM KR150C Foundation Pile Drilling Hydraulic Piling Rig With Rotary Angle Displacement Output Mechanism 2




Our Services

Why Choose Us?

1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 countries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.

FAQ

Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is one year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
